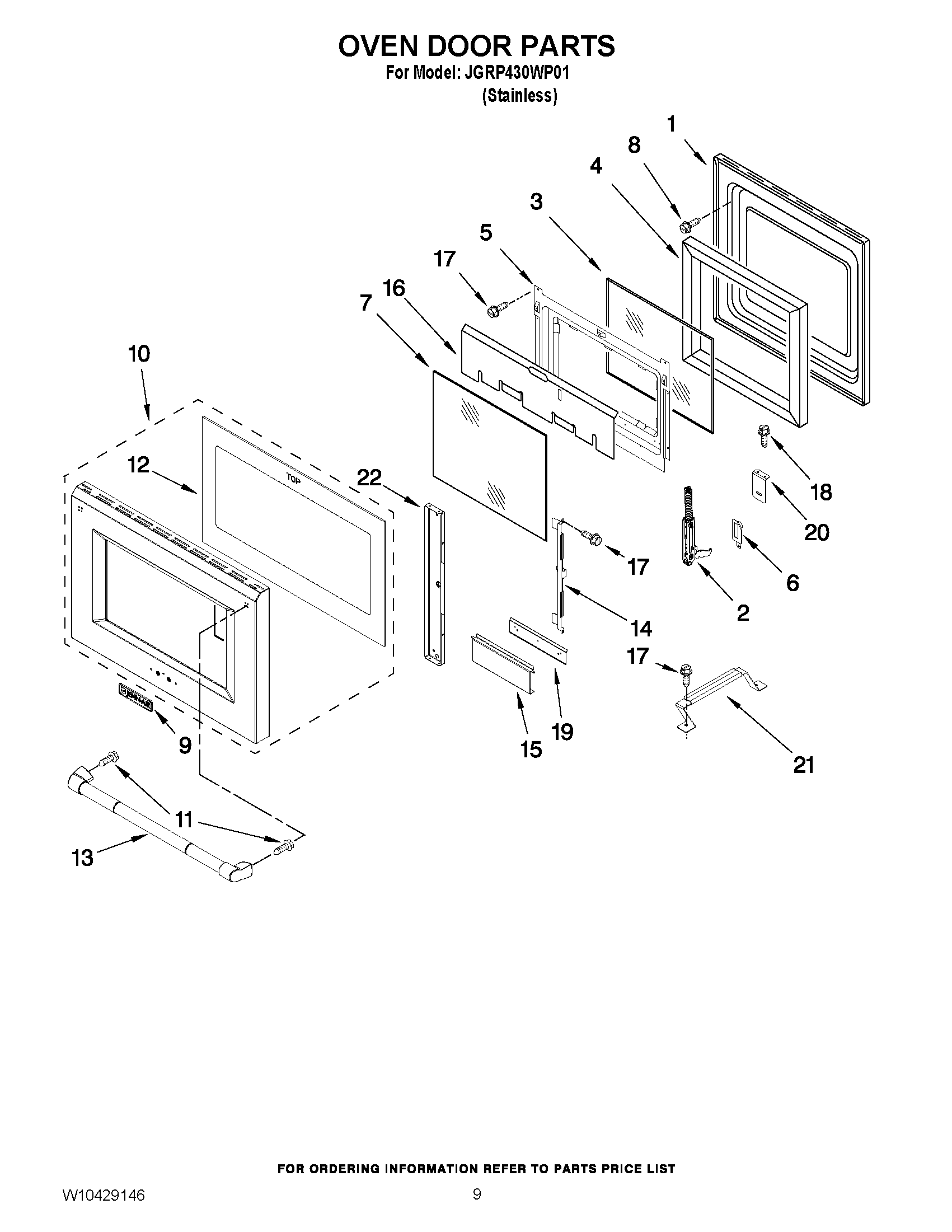

JGRP430WP01 06 – OVEN DOOR PARTS
Written by
in
JGRP430WP01 06 – OVEN DOOR PARTS
Products
Position
Product
1
MAY 9759413
2
MAY W10269202
2
MAY W10269201
3
MAY 4449259
4
MAY 4451722
5
MAY 4457132
6
MAY W10115876
6
MAY W10115877
7
MAY 9759225
8
MAY W10292297
9
MAY W10159578
10
MAY W10145759
11
SCREW, HANDLE
12
MAY W10145850
13
MAY 7701P475-60
14
MAY 9759229
15
BRACKET, CENTER OUTER GLASS
16
SHIELD, HEAT TOP
17
Screw
18
MAY 7101P426- 60
19
SHIELD, HEAT BOTTOM
20
MAY W10115715
21
MAY 9759230
22
BRACKET, SIDE
←
