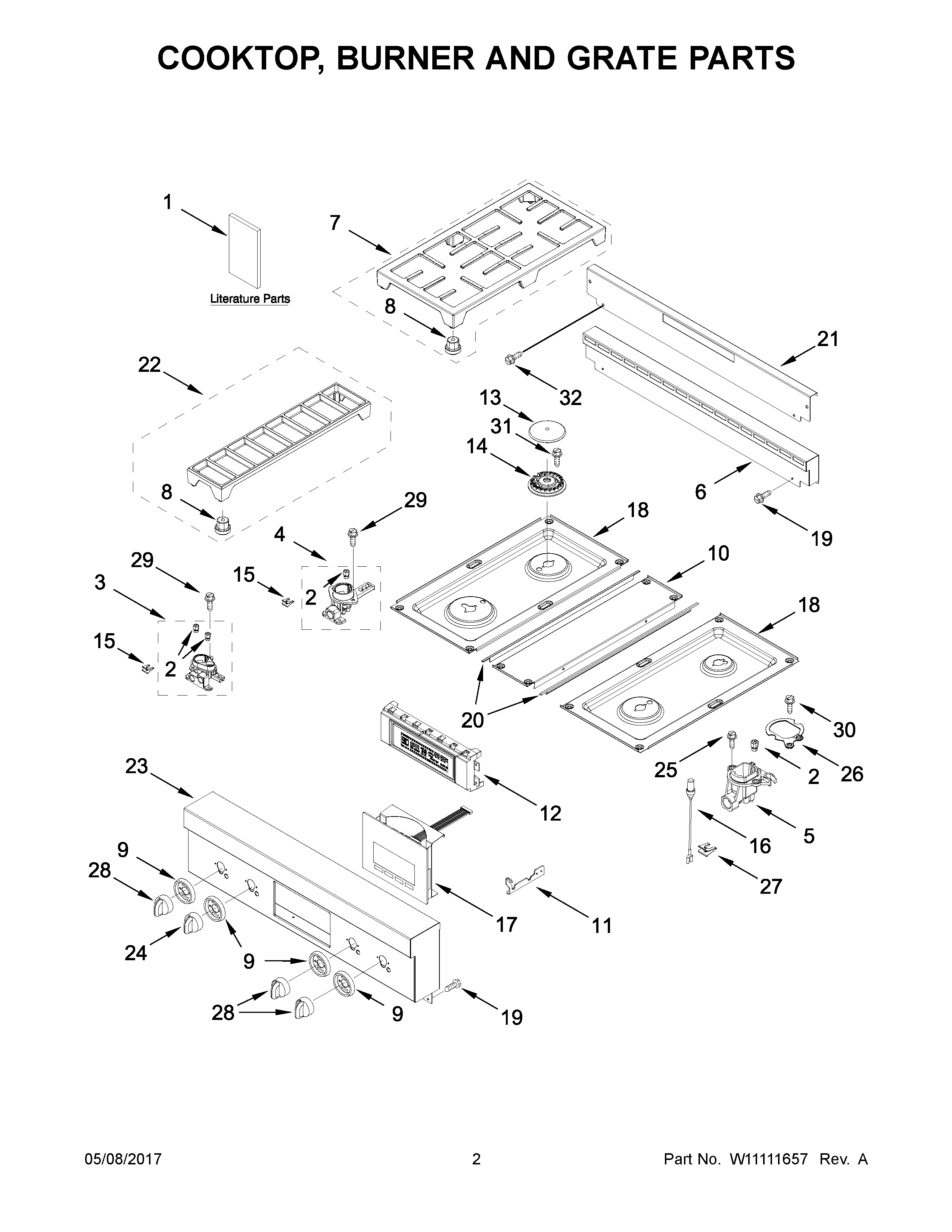

JGRP430WP02 02 – COOKTOP, BURNER AND GRATE PARTS

JGRP430WP02 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

JGRP430WP02 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NIMAY W10368807
NIMAY W10763500
NIMAY W10183556
NICORD, POWER
NIMAY W10116168
NIMAY 4450800
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, DOOR LOCK
NIBRACKET, ANTI-TIP
NIMAY W10145988
NIMAY W10344051
NISCREW, ANTI-TIP KIT
NICLIP, HARNESS
1CMAY W10403309
1GUIDE, USE & CARE
1AINSTRUCTIONS, INSTALLATION
1ETIPS, SAFE COOKING (FRENCH)
1DTIPS, SAFE COOKING (ENGLISH)
1BMAY W10403308
2ORIFICE (20K) (LEFT FRONT & RIGHT FRONT, HIGH)
2AORIFICE (LF-LOW)
2CORIFICE (CR)
2BORIFICE (15K) (LEFT REAR, CENTER FRONT, RIGHT REAR)
3ASSEMBLY, ORIFICE HOLDER (LEFT FRONT & RIGHT FRONT)
4ASSEMBLY, ORIFICE HOLDER (LEFT REAR, CENTER FRONT, RIGHT REAR)
5MAY W10883622
6MAY W10323247
7MAY W10276551
8RUBBER, FOOT
9MAY W10276494
10MAY W10189105
11ABRACKET,CONSOLE (RIGHT)
11BRACKET,CONSOLE (LEFT)
12ASSEMBLY, KEYPAD
13AMAY W10256032
13BMAY W10364463
13MAY W10256034
14MAY W10879806
14BBURNER HEAD (RR)
14ABURNER, HEAD (LR,RF)
15SPRING, ELECTRODE
16ELECTRODE, WIRE
17ASSEMBLY, POWER SUPPLY
18MAY W10352969
18AMAY W10352968
19MAY 3400099
20TRIM, T-STRIP
21MAY W10323248
22MAY W10276495
23PANEL, CONTROL
24KNOB, CONTROL LF
25MAY 8286921
26MAY 8286930
27SPRING, ELECTRODE (RR)
28KNOB, CONTROL (LR, RF) LR, RF
29SCREW (ALL BUT CENTER REAR)
30MAY 3196160
31SCREW
32SCREW (8BX3/8-NI)
