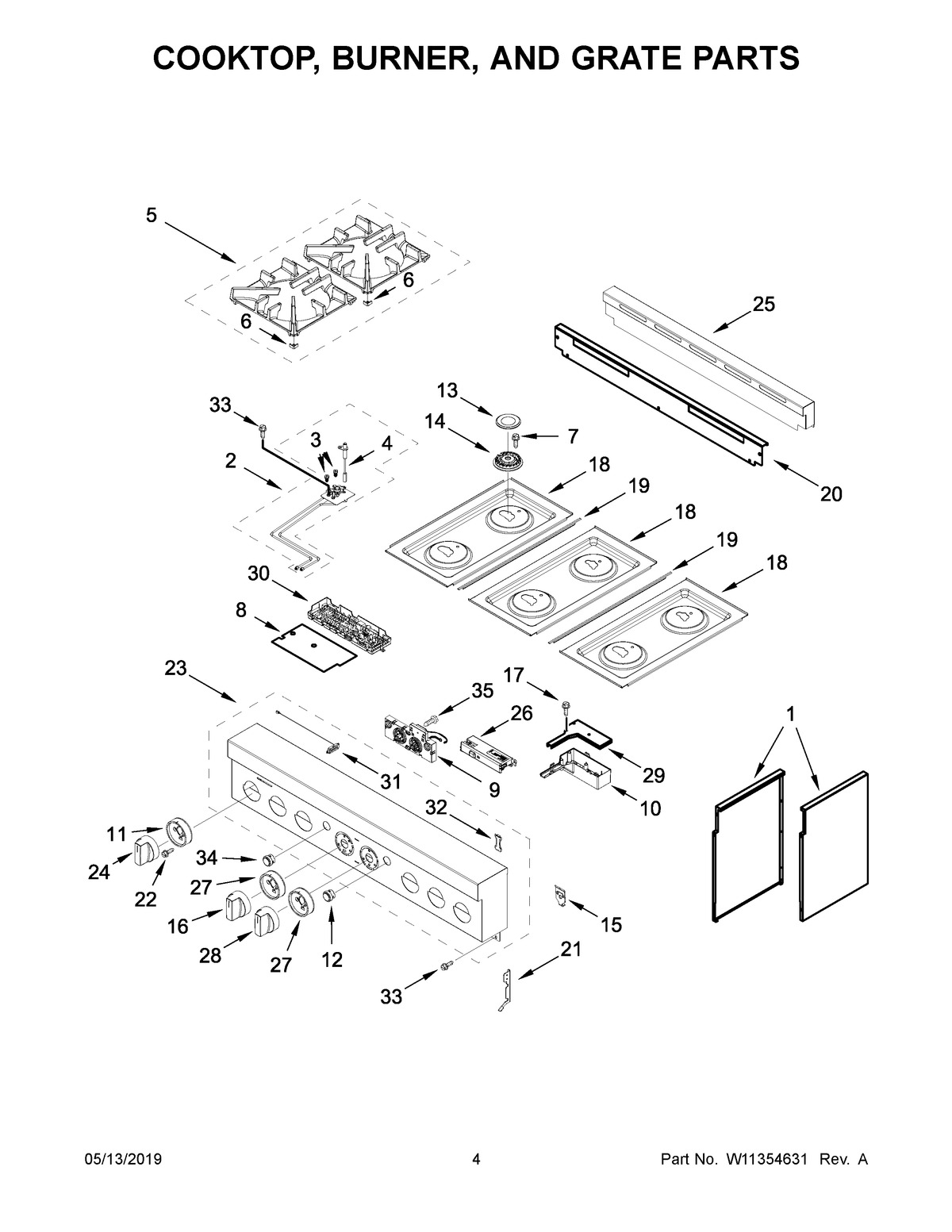

JGRP436HL00 03 – COOKTOP, BURNER, AND GRATE PARTS

Products

Position	Product
1	MAY W11106881
1A	MAY W11106880
2A	MAY W10892494
2E	ASSEMBLY, ORIFICEHOLDER (RIGHT REAR)
2D	ASSEMBLY, ORIFICEHOLDER (RIGHT FRONT)
2	MAY W10892793
2B	MAY W10892501
2C	ASSEMBLY, ORIFICE HOLDER (CENTER REAR)
3A	ORIFICE, MAIN (15.4K) (LEFT REAR AND RIGHT FRONT)
3D	ORIFICE, SIMMER (2.0K) (RIGHT REAR)
3C	ORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3B	ORIFICE, MAIN (7.2K) (RIGHT REAR)
3	ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4B	IGNITER (RIGHT REAR)
4A	IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4	IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
5	ASSEMBLY, GRATE (BLACK (SET OF 2))
6	BUMPER, GRATE
7	SCREW
8	BARRIER, APPLIANCE MANAGER
9	MAY W11095713
10	COVER, WIFI OUTER
11	BEZEL, COOKTOP
12	BUTTON ASSEMBLY, OVEN START
13	CAP, BURNER (BLACK (SET OF 6))
14A	SPREADER, FLAME (LOW) (RIGHT REAR)
14	SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
15	SPRING CLIP, RANGE
16	MAY W11092267
17	SCREW
18	PANEL, COOKTOP (BLACK (LEFT))
18A	PANEL, COOKTOP (BLACK (RIGHT CENTER))
18B	MAY W10804373
19	TRIM, T-STRIP
20	MAY W10323250
21A	BRACKET,CONSOLE (RIGHT)
21	BRACKET,CONSOLE (LEFT)
22	MAY W10919387
23	MAY W11253775
24	KNOB, BURNER (STAINLESS)
25	MAY W11183086
26	ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
27	BEZEL, OVEN (FOR 2 OVEN KNOBS) (STAINLESS)
28	KNOB, OVEN TEMPERATURE (STAINLESS)
29	COVER, WIFI INNER
30	MAY W11100275
31	ANTENNA, WIFI
32	ASSEMBLY, LIGHT PIPE
33	MAY 7101P426- 60
34	BUTTON ASSEMBLY, OVEN LIGHT
35	SCREW
