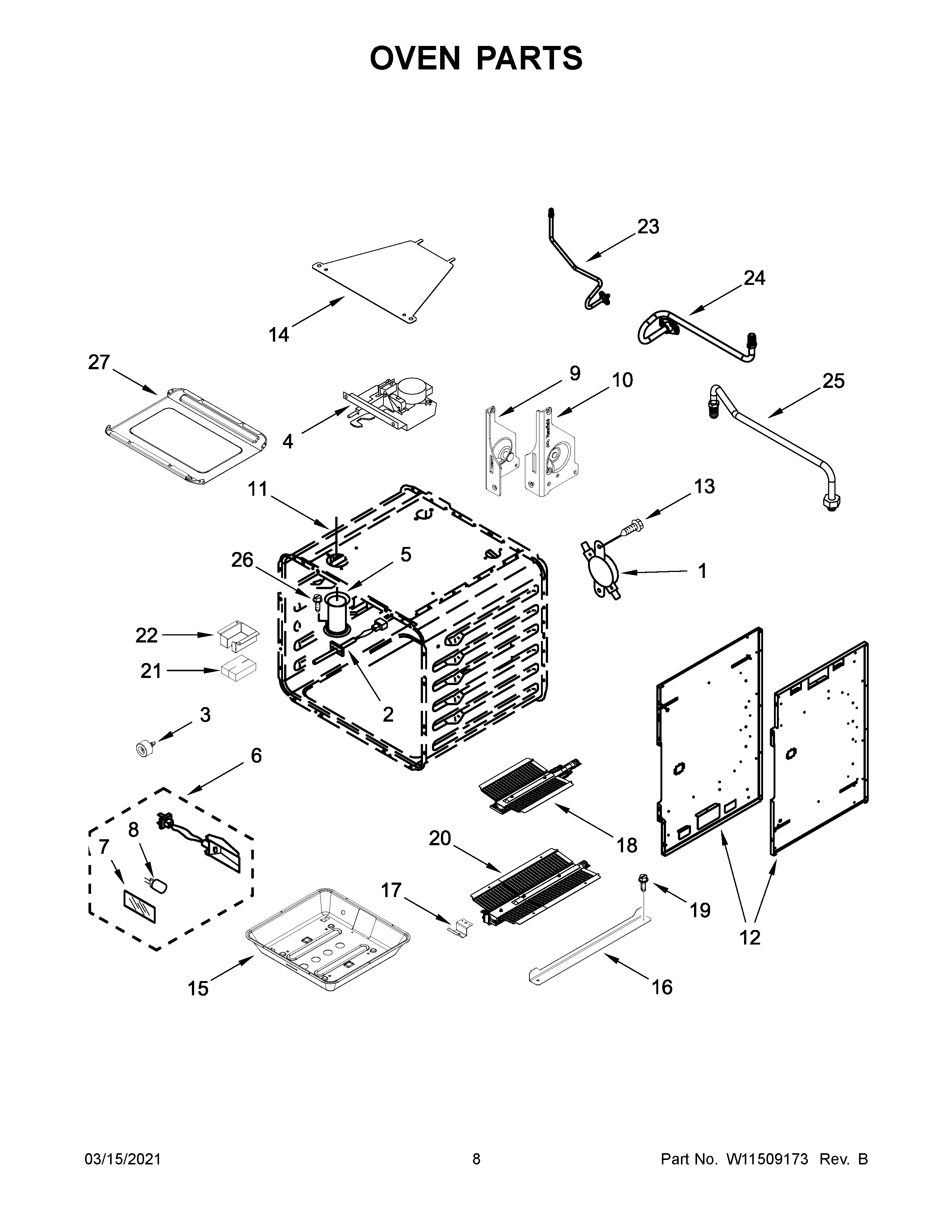

JGRP436HL01 05 – OVEN PARTS

Products

Position	Product
NI	INSULATION, BOTTOM
NI	WP3400968 Whirlpool Nut
NI	W11688743 Whirlpool Insulation
NI	INSULATION, BACK
NI	CABINET (NOT A SERVICEABLE PART)
1	WP4450249 Whirlpool Thermostat
2	W10859573 Whirlpool Range Oven Temperature Sensor
3	WPW10351278 Whirlpool Bumper
4	W11029221 Whirlpool Door Latch
5	TUBE, VENT
6	W11233684 Whirlpool Oven Light Assembly
7	W10169756 Whirlpool Light Lens
8	BULB-LIGHT
9	RECEIVER, HINGE (LEFT)
10	RECEIVER, HINGE (RIGHT)
12	W11320145 Whirlpool Cabinet Panel
12A	CHASSIS, SIDE (RIGHT)
13	SCREW
14	W10160858 Whirlpool Lid Cover
15	WPW10145744 Whirlpool Support
16	W10317437 Whirlpool Support Assembly
17	W10308040 Whirlpool Pan Bracket
18	W11643161 Whirlpool Oven Burner
19	SCREW
20	W11661180 Whirlpool Burner Broiler
21	INSULATION, BROIL COVER
22	W10310985 Whirlpool Access Cover
23	W11355244 Whirlpool Gas Tubing
24	W11355919 Whirlpool Range Gas Tubing
25	W11356251 Whirlpool Gas Tubing Assembly
26	SCREW
27	W11661576 Whirlpool Oven Bottom Pan
