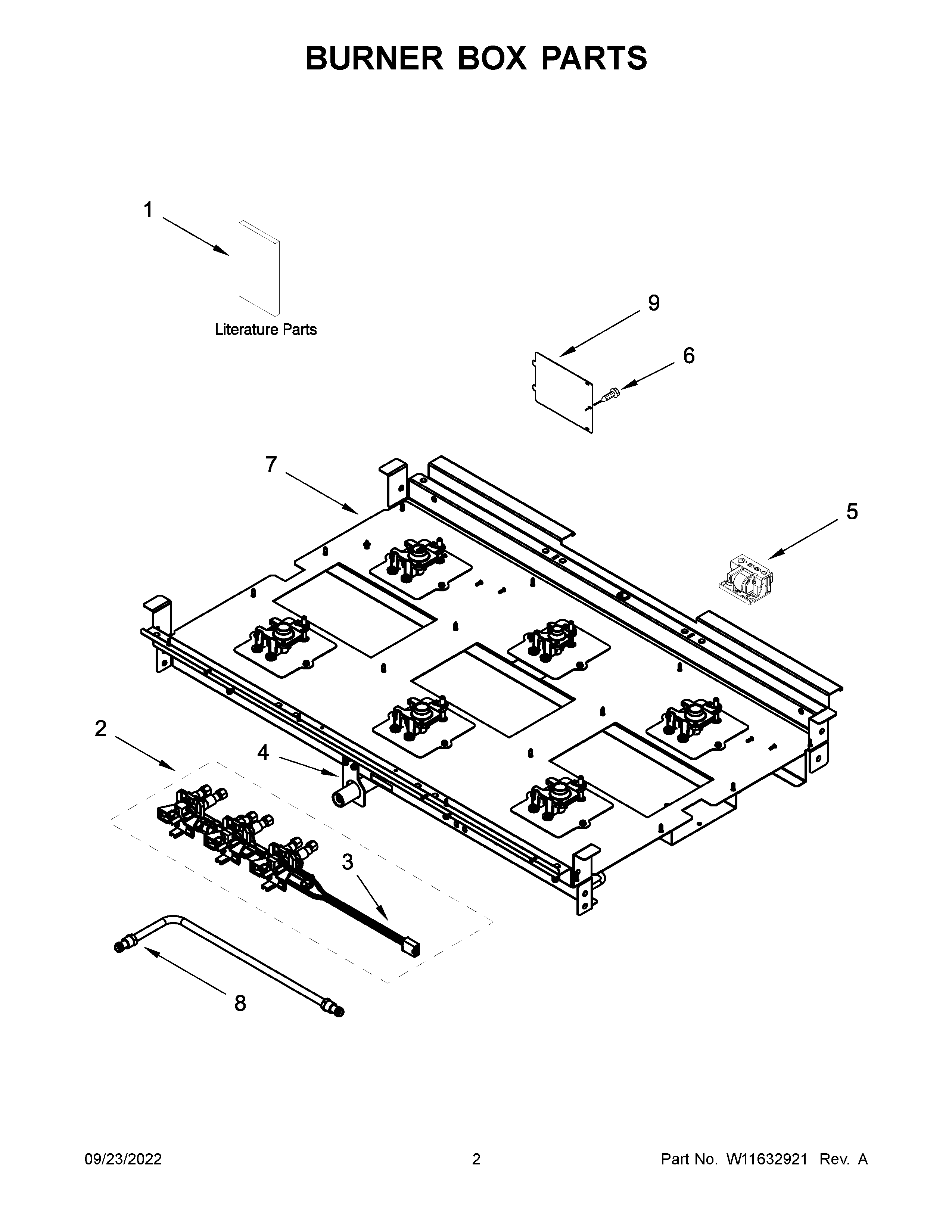

JGRP436HL05 02 – BURNER BOX PARTS

Products

Position	Product
NI	HARNESS, COOKTOP
NI	W10624584 Whirlpool Power Cord
NI	W10780278 Whirlpool Wire Harness
NI	W11200325 Whirlpool Wire Harness
NI	W11317791 Whirlpool Wire Harness
NI	HARNS-WIRE
NI	SCREW, ANTI-TIP KIT
NI	W11544575 Whirlpool Anti-Tip Bracket
NI	W11446239 Whirlpool Wire Harness
NI	W11446236 Whirlpool Wire Harness
NI	W11428599 Whirlpool Conversion Kit
NI	16515 Whirlpool Clip
NI	4450800 Whirlpool Oven Screw
NI	CABINET (NOT A SERVICEABLE PART)
1F	SHEET, TECH
1E	DIAGRAM, WIRING (OVEN)
1	USE AND CARE GUIDE
1A	INSTALLATION INSTRUCTIONS
1B	GUIDE, QUICK START
1C	GUIDE, INTERNET CONNECTIVITY
1D	DIAGRAM, WIRING (COOKTOP)
2	W11334707 Whirlpool Manifold Assembly
2A	W11334710 Whirlpool Manifold
3	W11328263 Whirlpool Wire Harness
4	W11320153 Whirlpool Mounting Bracket
5	W11319687 Whirlpool Spark Module
6	SCREW
8	TUBE, MANIFOLD SUPPLY (LEFT)
8A	TUBE, MANIFOLD SUPPLY (RIGHT)
9	W10115843 Whirlpool Access Cover
