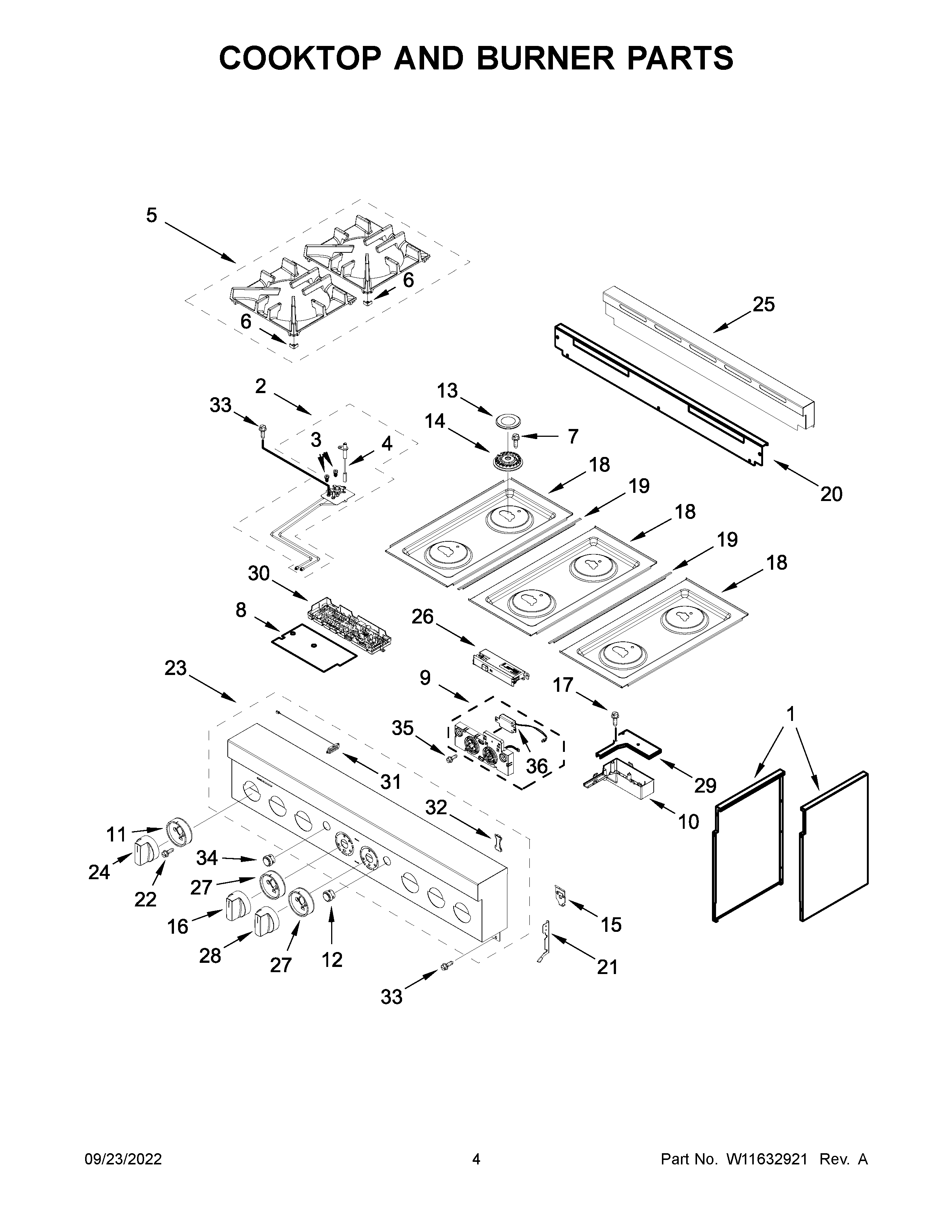

JGRP436HL05 03 – COOKTOP AND BURNER PARTS

JGRP436HL05 03 – COOKTOP AND BURNER PARTS

Written by

in

JGRP436HL05 03 – COOKTOP AND BURNER PARTS

Products

PositionProduct
1W11333179 Whirlpool Side Assembly
1AW11333303 Whirlpool Side Complete Assembly
2AW11333306 Whirlpool Orifice Holder Assembly
2CW11319740 Whirlpool Holder Orifice
2BW11334711 Whirlpool Orifice Holder
2DW11334712 Whirlpool Orifice Holder
2W11333305 Whirlpool Holder Orifice
2EW11334714 Whirlpool Orifice Holder
3W11643164 Whirlpool Orifice Spud
3AW10892418 Whirlpool Range Orifice Spud
3BW10892440 Whirlpool Spud Orifice
3CW11661909 Whirlpool Range Orifice Spud
3DW10892429 Whirlpool Orifice Spud
4AW11580024 Whirlpool Surface Igniter
4BW11238756 Whirlpool Surface Igniter
4W11573760 Whirlpool Surface Igniter
5W11515370 Whirlpool Burner Grate
6W11550692 Whirlpool Bumper
7SCREW
8W11320149 Whirlpool Insulator
9W11492283-includeCORE Whirlpool W11492283 Refrigerator Electronic Control Board + Core
10COVER, WIFI OUTER
11BEZEL-KNOB
12W11319196 Whirlpool Push Button
13W11319224 Whirlpool Burner Cap
14W11319683 Whirlpool Burner Head
14AW11319673 Whirlpool Burner Head
15W11318207 Whirlpool Clip Assembly
16W11574370 Whirlpool Knob
17W11169708 Whirlpool Screw
18W11316696 Whirlpool Cooktop
18AW11316697 Whirlpool Range Cooktop
18BW11328972 Whirlpool Cooktop
19W10271524 Whirlpool Trim Top
20W10323250 Whirlpool Top Trim
21W10130760 Whirlpool Bracket Mounting
21AW10130759 Whirlpool Mounting Bracket
22W11509770 Whirlpool Screw
23W11715959 Whirlpool Control Panel
24W11574368 Whirlpool Knob
25W11476245 Whirlpool Trim Top
26W11234290 Whirlpool Electronic Control Board
27W11317499 Whirlpool Knob Bezel
28W11574369 Whirlpool Range Knob
29WPL W11205794
30W11620692 Whirlpool Electronic Control Board + Core
31W11318855 Whirlpool Antenna
32WPL W10896369
33SCREW
34W11318857 Whirlpool Push Button
35WP3400814 Whirlpool Screw
36W11123146 Whirlpool Speaker
