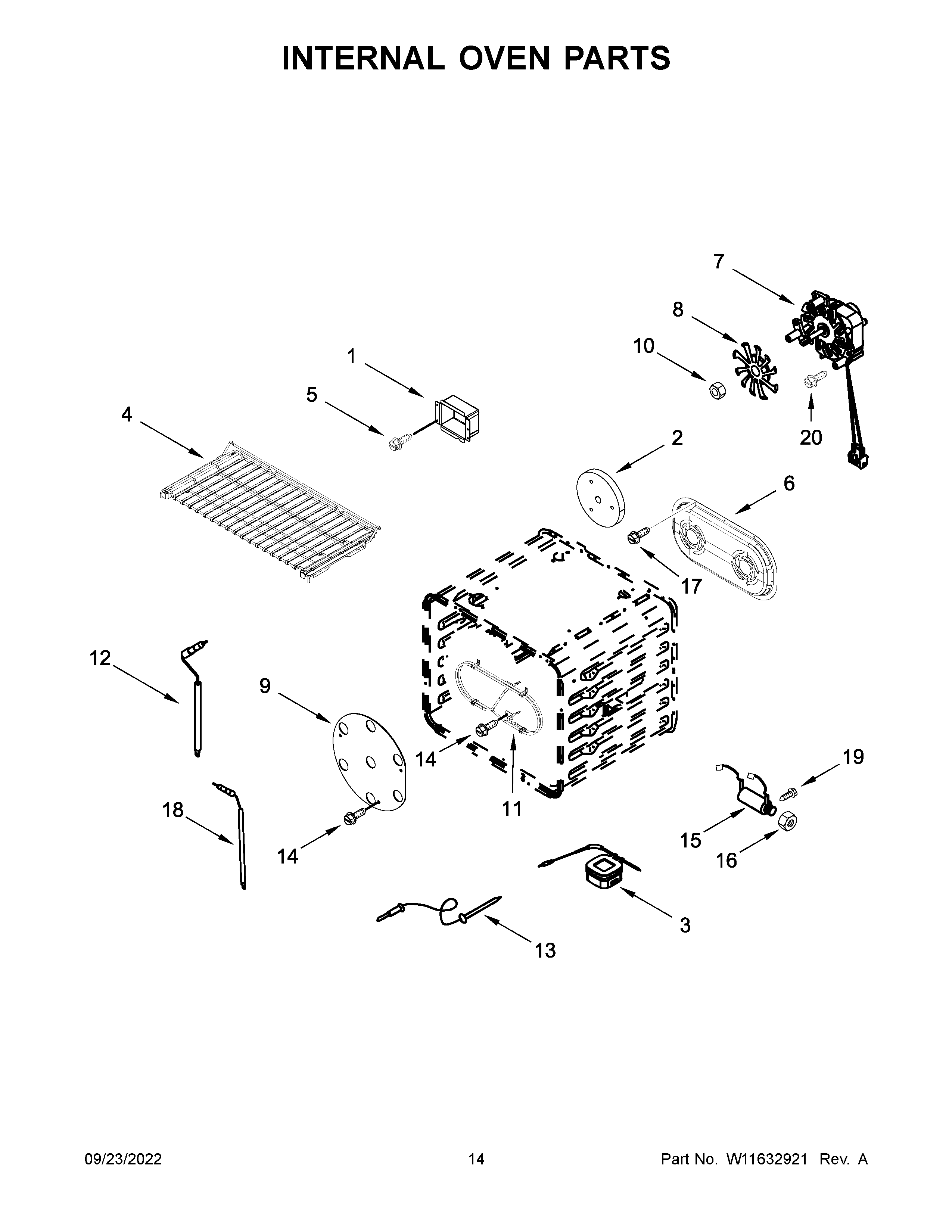

JGRP436HL05 08 – INTERNAL OVEN PARTS

JGRP436HL05 08 – INTERNAL OVEN PARTS

Written by

in

JGRP436HL05 08 – INTERNAL OVEN PARTS

Products

PositionProduct
1W10308051 Whirlpool Burner Box
2W11688507 Whirlpool Insulation
3W11318341 Whirlpool Meat Probe
4W11545292 Whirlpool Oven Rack
5SCREW
6W11232487 Whirlpool Convection Baffle
7W10794440 Whirlpool Fan Motor
8W11320150 Whirlpool Convection Fan
9W10261523 Whirlpool Plate
10W10794042 Whirlpool Nut
11W11033310 Whirlpool Heating Element
12W11355920 Whirlpool Surface Igniter
13WP9755542 Whirlpool Oven Meat Probe
14WP4449154 Whirlpool Screw
158186589 Whirlpool Jack Probe
16W11231343 Whirlpool Lock Nut
17SCREW
18W11355922 Whirlpool Surface Igniter
19WP12992902 Whirlpool Refrigerator Screw
20W10850807 Whirlpool Screw
