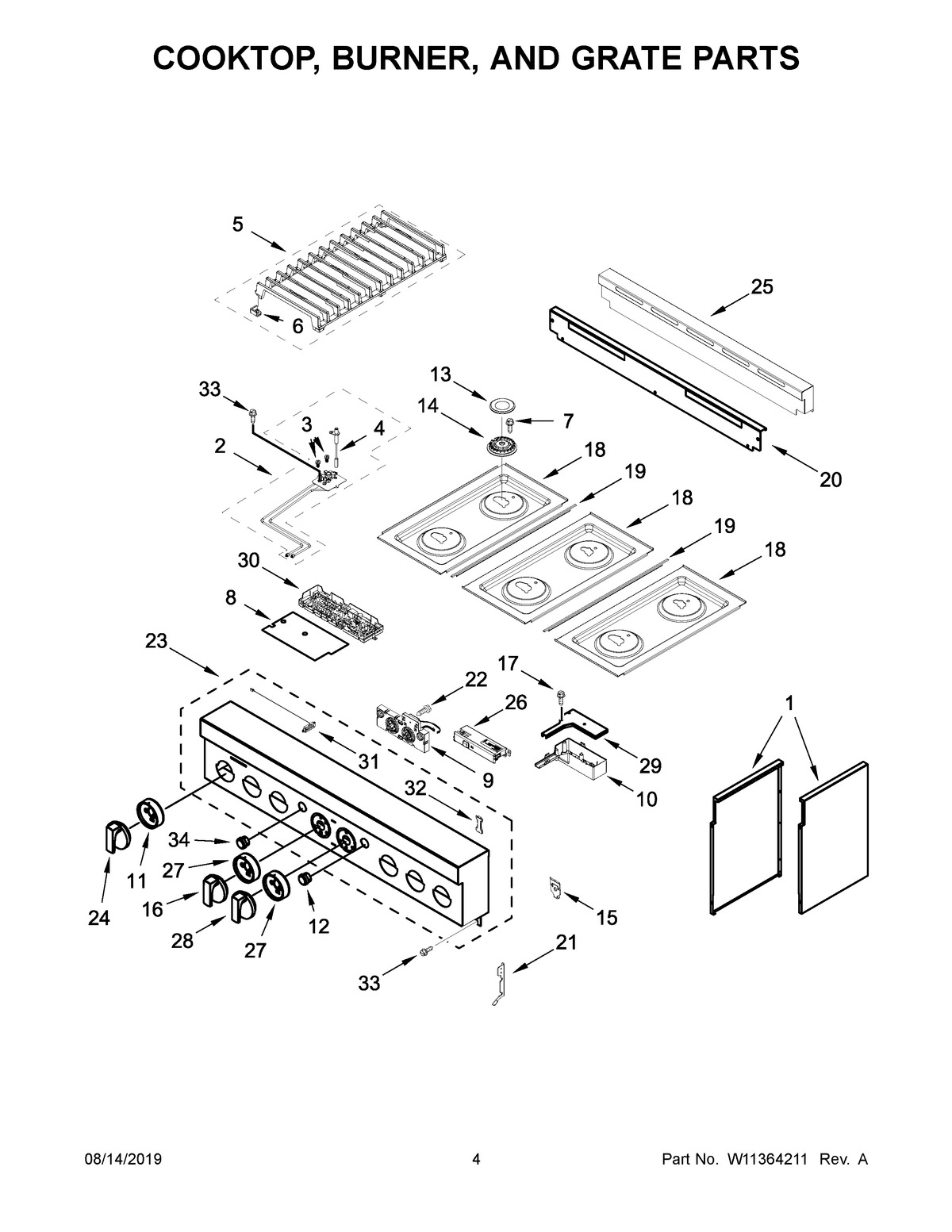

JGRP436HM00 03 – COOKTOP, BURNER, AND GRATE PARTS

Products

PositionProduct
1MAY W11106881
1AMAY W11106880
2CASSEMBLY, ORIFICE HOLDER (CENTER REAR)
2DASSEMBLY, ORIFICEHOLDER (RIGHT FRONT)
2AMAY W10892494
2MAY W10892793
2BMAY W10892501
2EASSEMBLY, ORIFICEHOLDER (RIGHT REAR)
3DORIFICE, SIMMER (2.0K) (RIGHT REAR)
3CORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3BORIFICE, MAIN (7.2K) (RIGHT REAR)
3ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3AORIFICE, MAIN (15.4K) (LEFT REAR AND RIGHT FRONT)
4IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4BIGNITER (RIGHT REAR)
4AIGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
5AASSEMBLY, GRATE (BLACK) (LEFT CENTER)
5BASSEMBLY, GRATE (BLACK) (RIGHT)
5ASSEMBLY, GRATE (BLACK) (LEFT)
6BUMPER, GRATE
7MAY W11323260
8BARRIER, APPLIANCE MANAGER
9MAY W11095713
10COVER, WIFI OUTER
11BEZEL, COOKTOP
12BUTTON ASSEMBLY, OVEN START
13CAP, BURNER (BLACK (SET OF 6))
14SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
14ASPREADER, FLAME (LOW) (RIGHT REAR)
15SPRING CLIP, RANGE
16MAY W11317854
17SCREW
18APANEL, COOKTOP (BLACK) (LEFT CENTER)
18BMAY W11038254
18PANEL, COOKTOP (BLACK) (LEFT)
19TRIM, T-STRIP
20MAY W10323250
21ABRACKET,CONSOLE (RIGHT)
21BRACKET,CONSOLE (LEFT)
22SCREW
23MAY W11253775
24KNOB, BURNER (STAINLESS)
25MAY W11183086
26ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
27BEZEL, OVEN (FOR 2 OVEN KNOBS) (STAINLESS)
28KNOB, OVEN TEMPERATURE (STAINLESS)
29COVER, WIFI INNER
30MAY W11100275
31ANTENNA, WIFI
32ASSEMBLY, LIGHT PIPE
33MAY 7101P426- 60
34BUTTON ASSEMBLY, OVEN LIGHT
