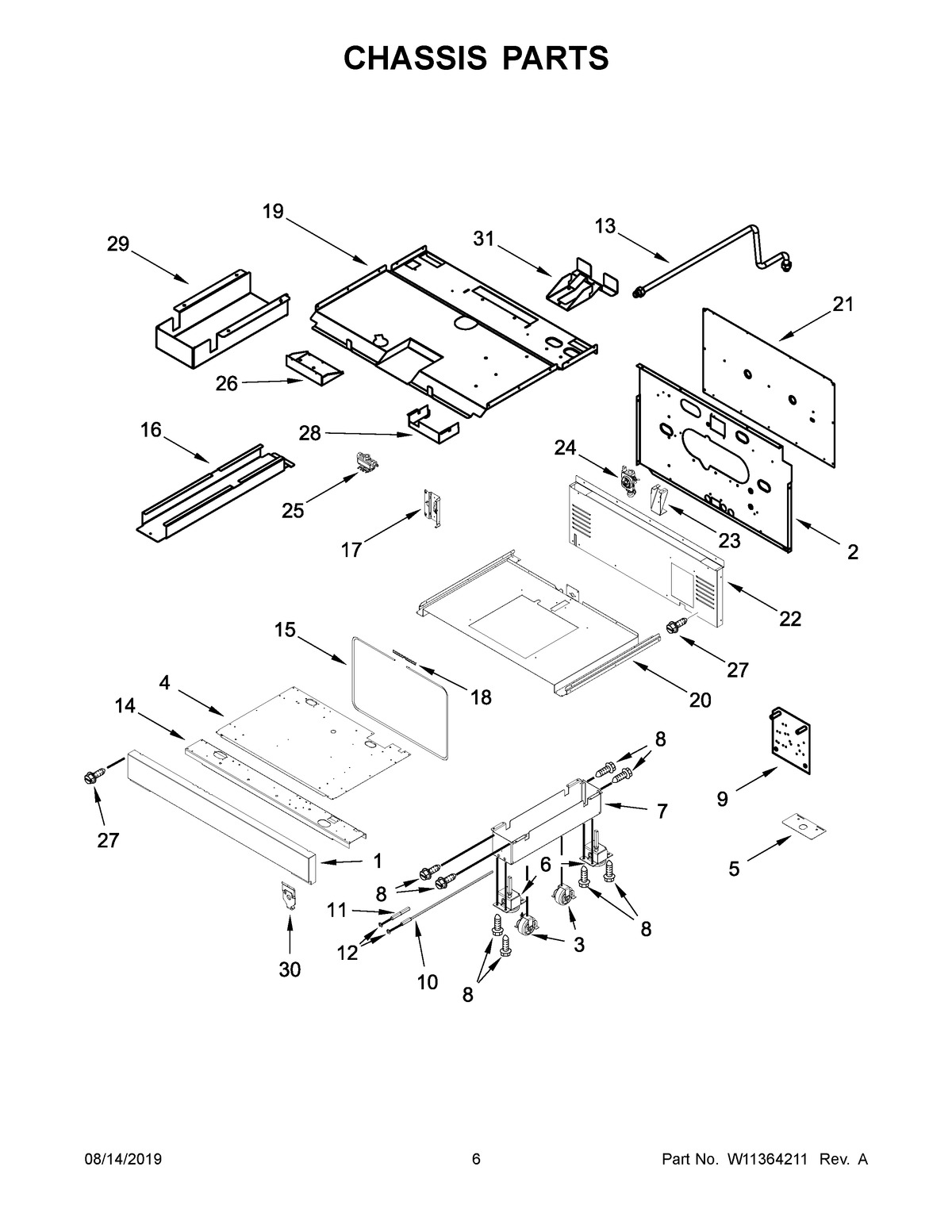

JGRP436HM00 04 – CHASSIS PARTS

JGRP436HM00 04 – CHASSIS PARTS

Written by

in

JGRP436HM00 04 – CHASSIS PARTS

Products

Position	Product
1	MAY W10883794
2	MAY W11089589
3	MAY W10138054
4	MAY W11095572
5	MAY W10115855
6	FOOT
7	BASE, LEVELING LEG
8	MAY 4449743
9	MAY W10511278
10	MAY W10115869
11	MAY W10115793
12	RING
13	MAY W11181648
14	MAY W11087493
15	MAY W11115330
16	DUCT-CHASSIS, REAR
17	MAY W10145362
18	MAY W11362015
19	MAY W11037135
20	MAY W11040801
21	MAY W11103333
22	MAY W11034133
23	BRACKET, PRESSURE REGULATOR
24	REGULATOR, PRESSURE
25	MAY W10145680
26	DRAWER, APPLIANCE MANAGER
27	MAY 7101P426- 60
28	CABINET, APPLIANCE MANAGER
29	CHANNEL, WIRE
30	SPRING CLIP, RANGE
31	MAY W11190223
