JGRP436HM00 05 – OVEN PARTS – Aparts

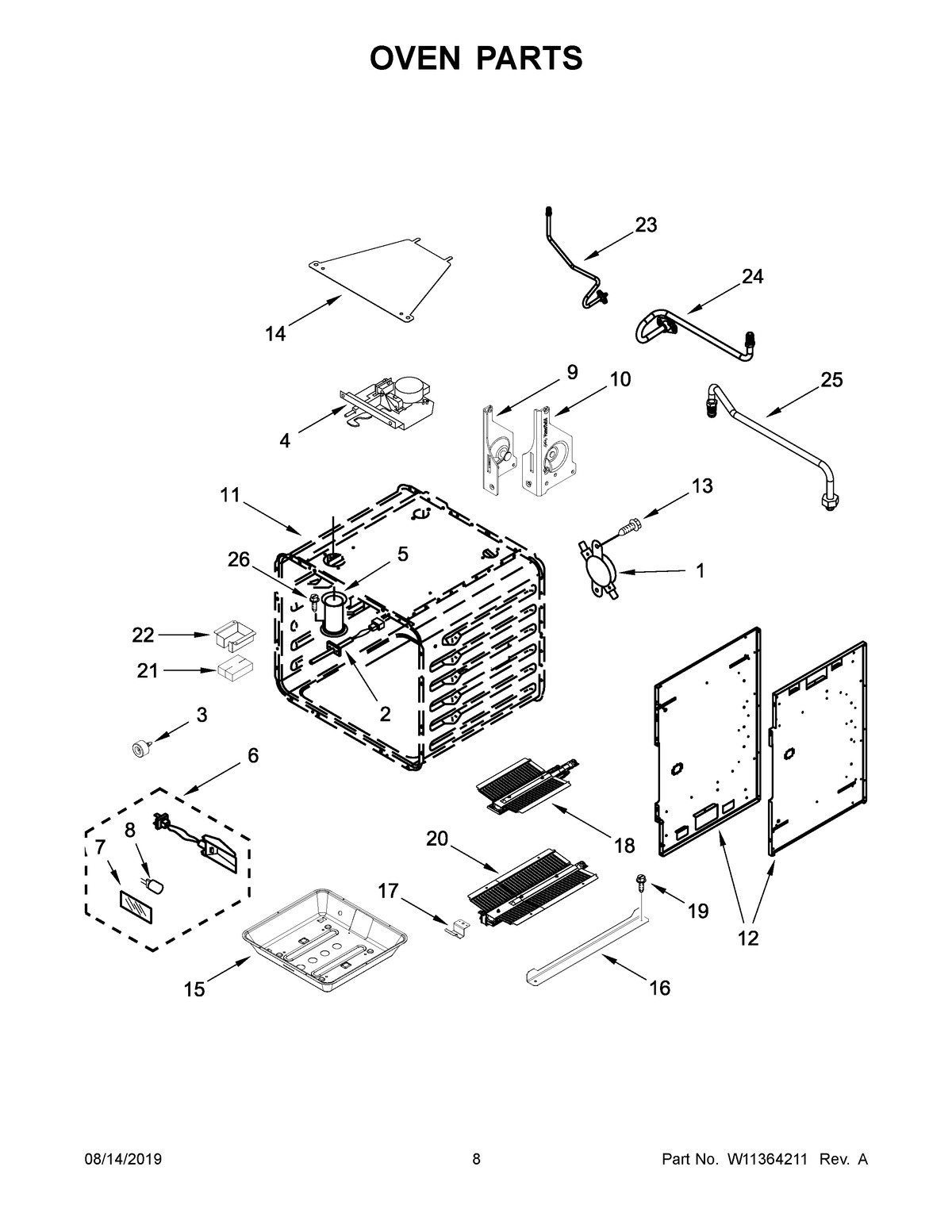

JGRP436HM00 05 – OVEN PARTS

Products

Position	Product
NI	MAY W10299356
NI	MAY W10299351
NI	MAY W10282811
NI	MAY 3400968
NI	LINER (NOT A SERVICEABLE PART)
1	THERMOSTAT
2	MAY W10622170
3	BUMPER & SCREW
4	LATCH, MOTORIZED
5	MAY W10145743
6	ASSEMBLY, OVEN LIGHT
7	LENS
8	BULB, OVEN
9	RECEIVER, HINGE (LEFT)
10	RECEIVER, HINGE (RIGHT)
12A	CHASSIS, SIDE (RIGHT)
12	CHASSIS, SIDE (LEFT)
13	MAY 7101P426- 60
14	MAY W10160858
15	SUPPORT, BAKE PAN
16	MAY W10317437
17	MAY W10308040
18	BURNER, BAKE
19	MAY 7101P434-60
20	MAY W10311335
21	MAY W10311009
22	MAY W10310985
23	MAY W11109238
24	MAY W11106980
25	MAY W11107279
26	Screw
