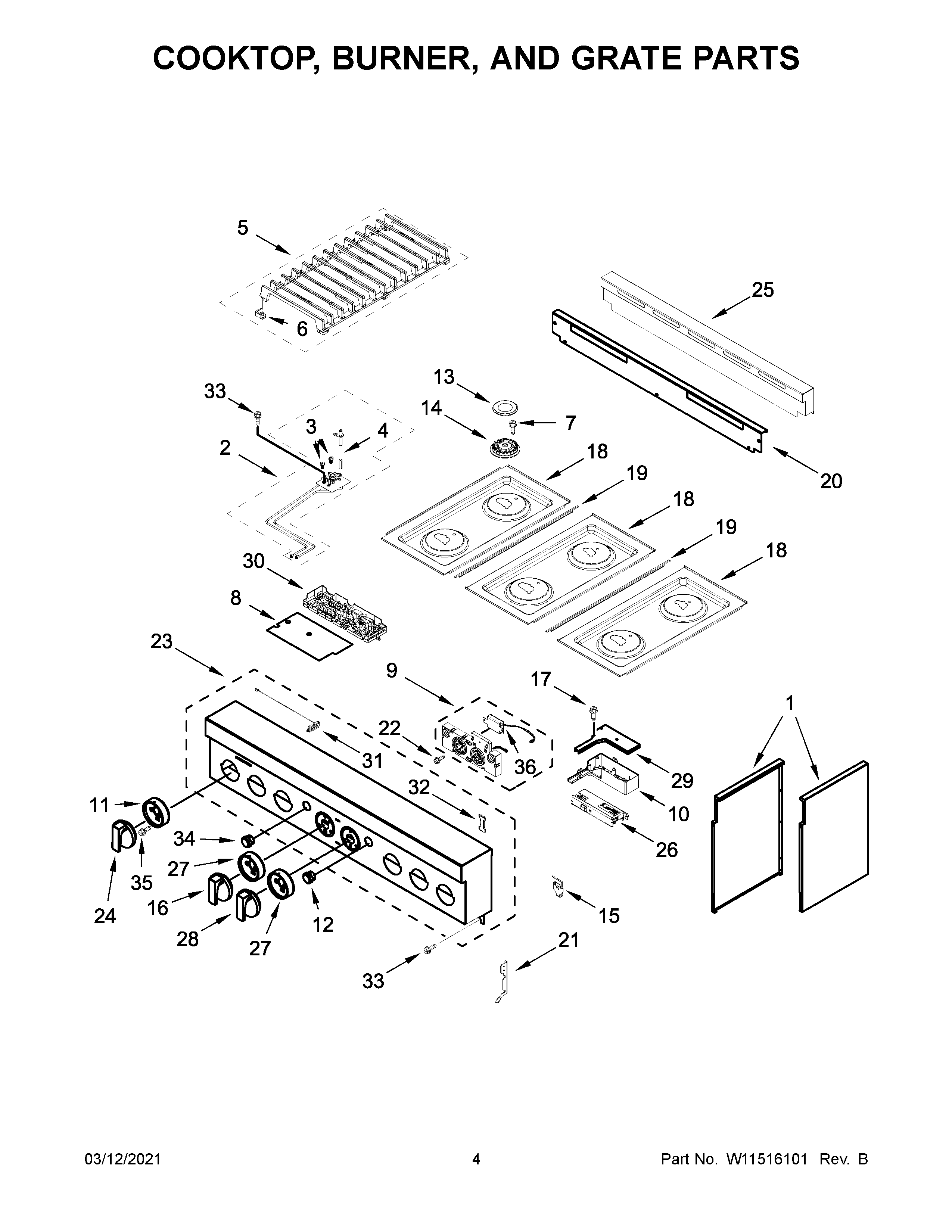

JGRP436HM01 03 – COOKTOP, BURNER, AND GRATE PARTS

Products

Position	Product
1	W11333179 Whirlpool Side Assembly
1A	W11333303 Whirlpool Side Complete Assembly
2A	W11333306 Whirlpool Orifice Holder Assembly
2D	W11334712 Whirlpool Orifice Holder
2B	W11334711 Whirlpool Orifice Holder
2	W11333305 Whirlpool Holder Orifice
2C	W11319740 Whirlpool Holder Orifice
2E	W11334714 Whirlpool Orifice Holder
3C	W11661909 Whirlpool Range Orifice Spud
3	W11643164 Whirlpool Orifice Spud
3A	W10892418 Whirlpool Range Orifice Spud
3B	W10892440 Whirlpool Spud Orifice
3D	W10892429 Whirlpool Orifice Spud
4A	W11580024 Whirlpool Surface Igniter
4B	W11238756 Whirlpool Surface Igniter
4	W11573760 Whirlpool Surface Igniter
5	W11516449 Whirlpool Grate Burner
5B	W11516462 Whirlpool Burner Grate
5A	W11516481 Whirlpool Grate Burner
6	W11550692 Whirlpool Bumper
7	SCREW
8	W11320149 Whirlpool Insulator
9	W11492283-includeCORE Whirlpool W11492283 Refrigerator Electronic Control Board + Core
10	COVER, WIFI OUTER
11	W11317889 Whirlpool Knob Bezel
12	W11319196 Whirlpool Push Button
13	W11319224 Whirlpool Burner Cap
14A	W11319673 Whirlpool Burner Head
14	W11319683 Whirlpool Burner Head
15	W11318207 Whirlpool Clip Assembly
16	W11397970 Whirlpool Knob Assembly
17	W11169708 Whirlpool Screw
18B	W11328008 Whirlpool Cooktop
18A	W11316701 Whirlpool Cooktop
18	W11316700 Whirlpool Cooktop
19	W10271524 Whirlpool Trim Top
20	W10323250 Whirlpool Top Trim
21A	W10130759 Whirlpool Mounting Bracket
21	W10130760 Whirlpool Bracket Mounting
22	WP3400814 Whirlpool Screw
23	W11715959 Whirlpool Control Panel
24	W11317537 Whirlpool Knob
25	W11476245 Whirlpool Trim Top
26	W11234290 Whirlpool Electronic Control Board
27	W11317892 Whirlpool Bezel Knob
28	W11317539 Whirlpool Knob
29	WPL W11205794
30	W11356248 Whirlpool Electronic Control Board + Core
31	W11318855 Whirlpool Antenna
32	WPL W10896369
33	SCREW
34	W11318857 Whirlpool Push Button
35	W11509770 Whirlpool Screw
36	W11123146 Whirlpool Speaker
