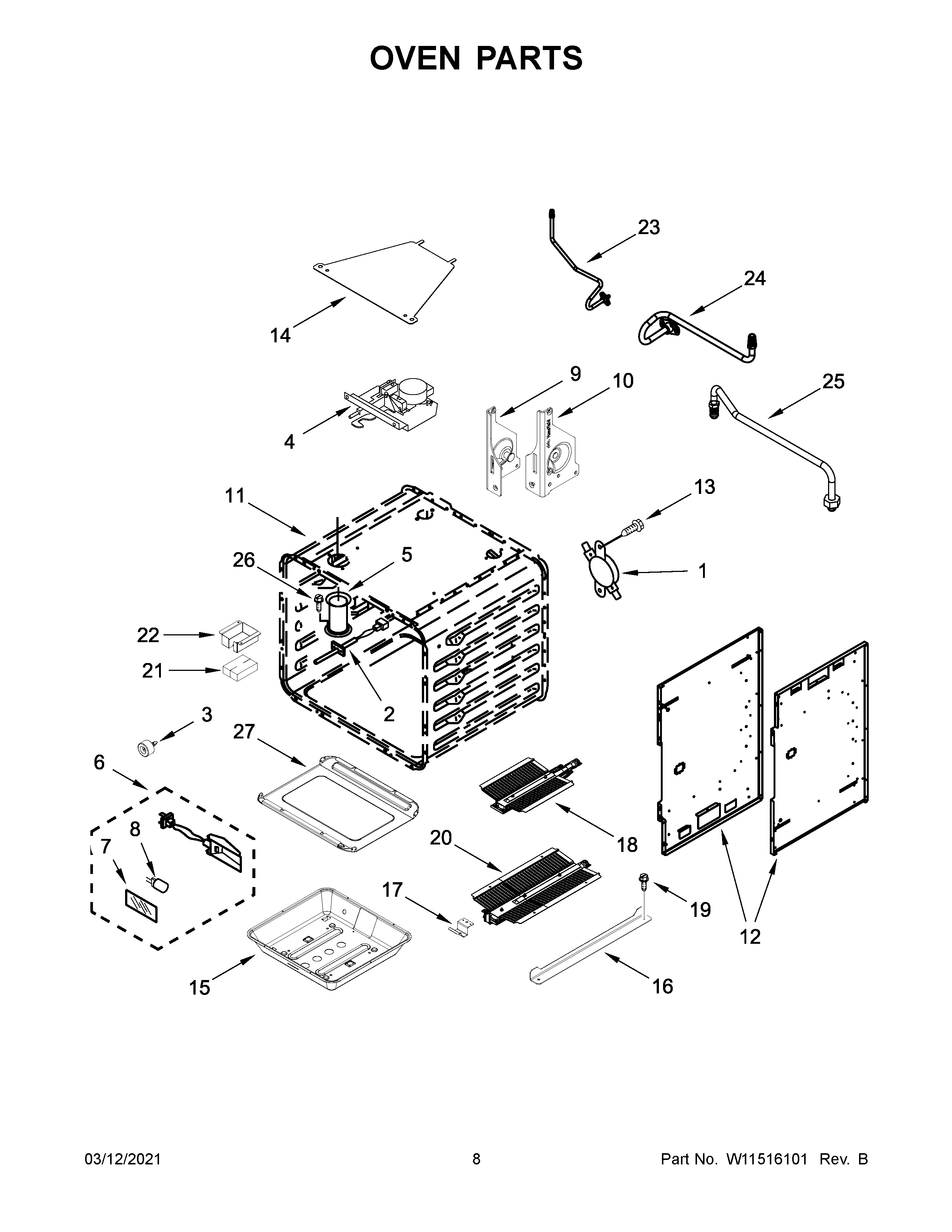

JGRP436HM01 05 – OVEN PARTS

JGRP436HM01 05 – OVEN PARTS

Written by

in

JGRP436HM01 05 – OVEN PARTS

Products

PositionProduct
NIINSULATION, BOTTOM
NIWP3400968 Whirlpool Nut
NIW11688743 Whirlpool Insulation
NIINSULATION, BACK
NICABINET (NOT A SERVICEABLE PART)
1WP4450249 Whirlpool Thermostat
2W10859573 Whirlpool Range Oven Temperature Sensor
3WPW10351278 Whirlpool Bumper
4W11029221 Whirlpool Door Latch
5TUBE, VENT
6W11233684 Whirlpool Oven Light Assembly
7W10169756 Whirlpool Light Lens
8BULB-LIGHT
9RECEIVER, HINGE (LEFT)
10RECEIVER, HINGE (RIGHT)
12W11320145 Whirlpool Cabinet Panel
12ACHASSIS, SIDE (RIGHT)
13SCREW
14W10160858 Whirlpool Lid Cover
15WPW10145744 Whirlpool Support
16W10317437 Whirlpool Support Assembly
17W10308040 Whirlpool Pan Bracket
18W11643161 Whirlpool Oven Burner
19SCREW
20W11661180 Whirlpool Burner Broiler
21INSULATION, BROIL COVER
22W10310985 Whirlpool Access Cover
23W11355244 Whirlpool Gas Tubing
24W11355919 Whirlpool Range Gas Tubing
25W11356251 Whirlpool Gas Tubing Assembly
26SCREW
27W11661576 Whirlpool Oven Bottom Pan
