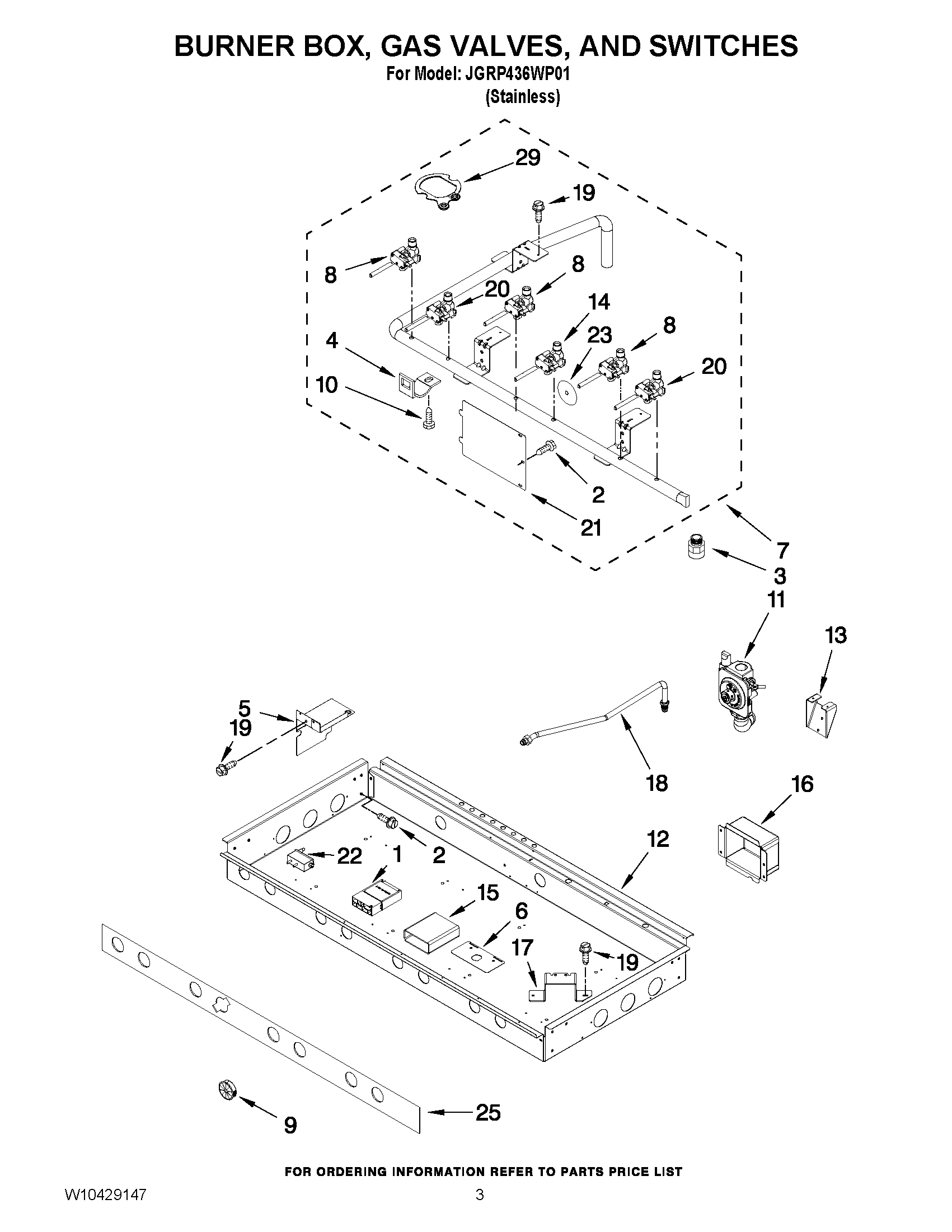

JGRP436WP01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

JGRP436WP01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

JGRP436WP01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NITUBE, FRT LFT
NITUBING, GAS (LR)
NIMAY W10145488
NITUBING, GAS (LF-LEFT)
NITUBING, GAS (LF-RIGHT)
NITUBE (CENTER FRONT)
NITUBE (RIGHT REAR)
NITUBE (RIGHT FRONT, HIGH)
1MAY 7431P038-60
3ADAPTER, FEMALE
4MAY W10189107
5MAY W10367054
6MAY W10115855
7ASSEMBLY, MANIFOLD
8VALVE, SINGLE LR,RF
9MAY W10189097
10SCREW, VALVE MTG
11MAY W10145584
12MAY W10371520
13MAY W10308042
14VALVE, SIMMER
15INSULATION, SPARK MODULE
16MAY W10308051
17BRACKET, BURNER
18MAY W10348600
19MAY 7101P426- 60
20VALVE, GAS (LF)
21MAY W10115843
22REIGNITOR
23MAY W10423373
25MAY W10145622
29MAY 8286930
