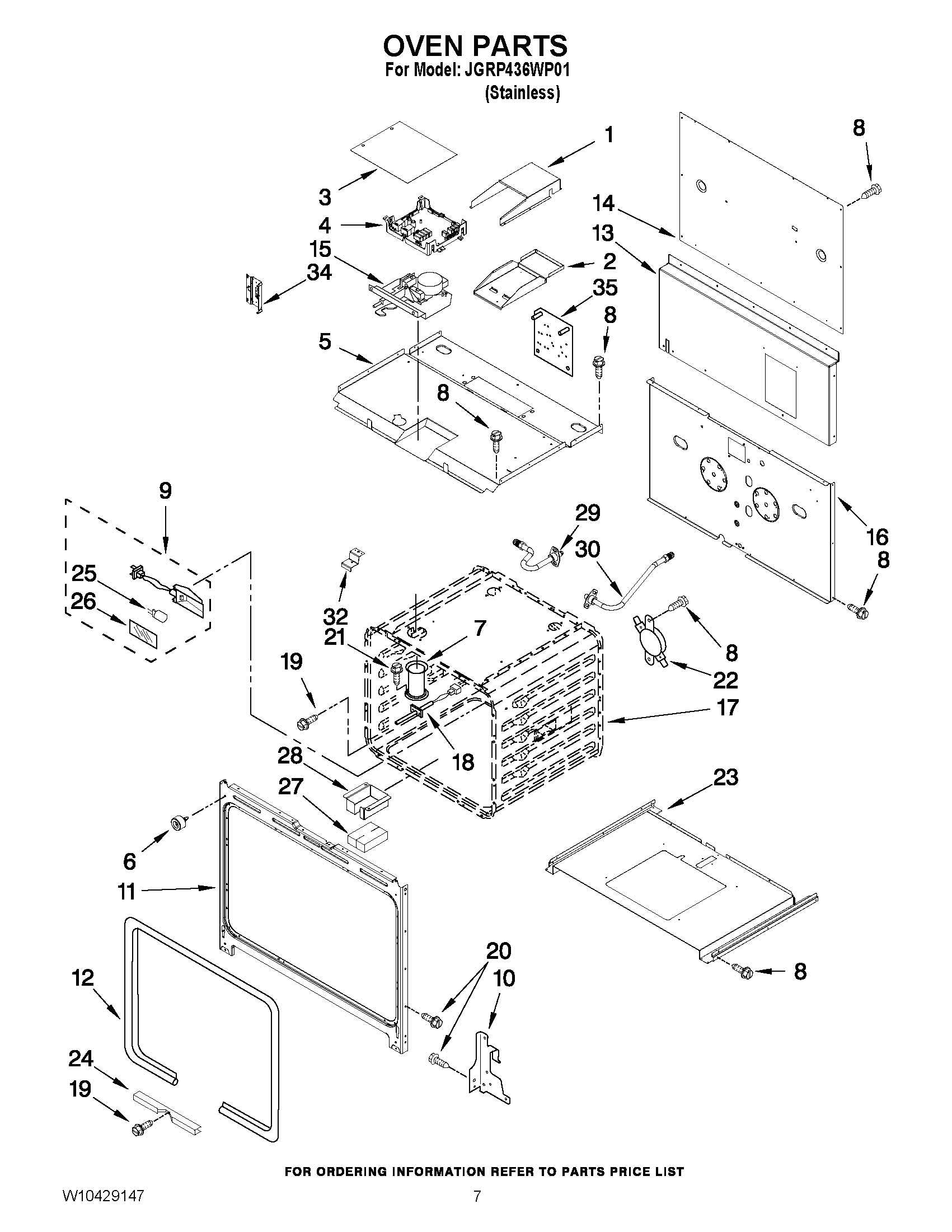

JGRP436WP01 05 – OVEN PARTS

Products

Position	Product
NI	MAY W10299356
NI	MAY W10299351
NI	MAY W10282811
1	DRAWER
2	SUPPORT
3	SEAL
4	MAY W10335645
5	MAY W10145373
6	ASSEMBLY, BUMPER
7	MAY W10145743
8	MAY 7101P426- 60
9	OVEN LIGHT ASSY
10	MAY 4455605
10	MAY 4455606
11	MAY W10160867
12	MAY W10160889
13	MAY W10145391
14	MAY W10321815
15	MAY W10195935
16	MAY W10145355
17	LINER (NOT A SERVICEABLE PART)
18	MAY W10131825
19	MAY 4449154
20	MAY 4449040
21	Screw
22	THERMOSTAT
23	MAY W10145370
24	MAY W10157511
25	BULB, OVEN
26	LENS
27	MAY W10311009
28	MAY W10310985
29	MAY W10145715
30	MAY W10145716
32	MAY W10308039
34	MAY W10145362
35	MAY 9758080
