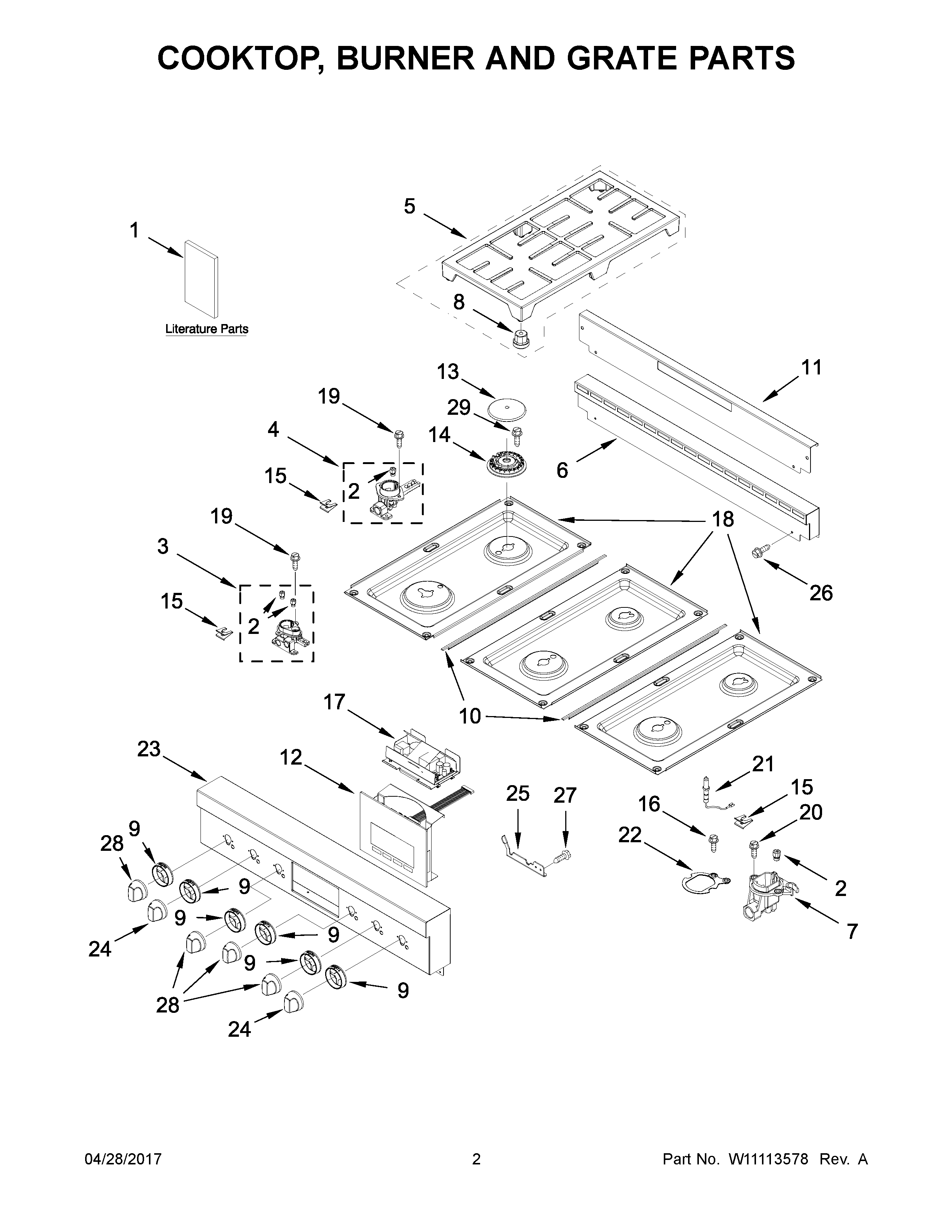

JGRP436WP02 02 – COOKTOP, BURNER AND GRATE PARTS

JGRP436WP02 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

JGRP436WP02 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NICORD, POWER
NIMAY W10763504
NIMAY W10368807
NIMAY 4450800
NIMAY W10344051
NIBRACKET, ANTI-TIP
NIHARNESS, DOOR LOCK
NIMAY W10399620
NIMAY W10830796
NICLIP, HARNESS
NIMAY W10830797
NISCREW, ANTI-TIP KIT
NIMAY W10183556
NILINER (NOT A SERVICEABLE PART)
NIMAY W10116168
1GUIDE, USE & CARE
1BMAY W10403308
1CMAY W10403309
1DTIPS, SAFE COOKING (ENGLISH)
1AINSTRUCTIONS, INSTALLATION
1ETIPS, SAFE COOKING (FRENCH)
2CORIFICE (CR)
2BORIFICE (15K) (LEFT REAR, CENTER FRONT, RIGHT REAR)
2ORIFICE (20K) (LEFT FRONT & RIGHT FRONT, HIGH)
2AORIFICE (LF-LOW)
3ASSEMBLY, ORIFICE HOLDER (LEFT FRONT & RIGHT FRONT)
4ASSEMBLY, ORIFICE HOLDER (LEFT REAR, CENTER FRONT, RIGHT REAR)
5MAY W10276551
6MAY W10323249
7MAY W10883622
8BUMPER, GRATE
9MAY W10276494
10TRIM, T-STRIP
11MAY W10323250
12ASSEMBLY, KEYPAD
13BMAY W10364463
13MAY W10256034
13AMAY W10256032
14ABURNER, HEAD (LR,RF)
14MAY W10879806
14BBURNER HEAD (RR)
15SPRING, ELECTRODE
15ASPRING, ELECTRODE (RR)
16MAY 8286921
17ASSEMBLY, POWER SUPPLY
18MAY W10352969
18ACOOKTOP (BLACK (CENTER))
18BCOOKTOP (BLACK (RIGHT))
19SCREW (ALL BUT CENTER REAR)
20MAY 3196160
21ELECTRODE, WIRE
22MAY 8286930
23MAY W10789953
24KNOB, CONTROL LF
25BRACKET,CONSOLE (LEFT)
25ABRACKET,CONSOLE (RIGHT)
26SCREW (8BX3/8-NI)
27MAY 7101P500-60
28KNOB, CONTROL (LR, RF) LR, RF
29SCREW
