JGRP436WP02 05 – OVEN PARTS – Aparts

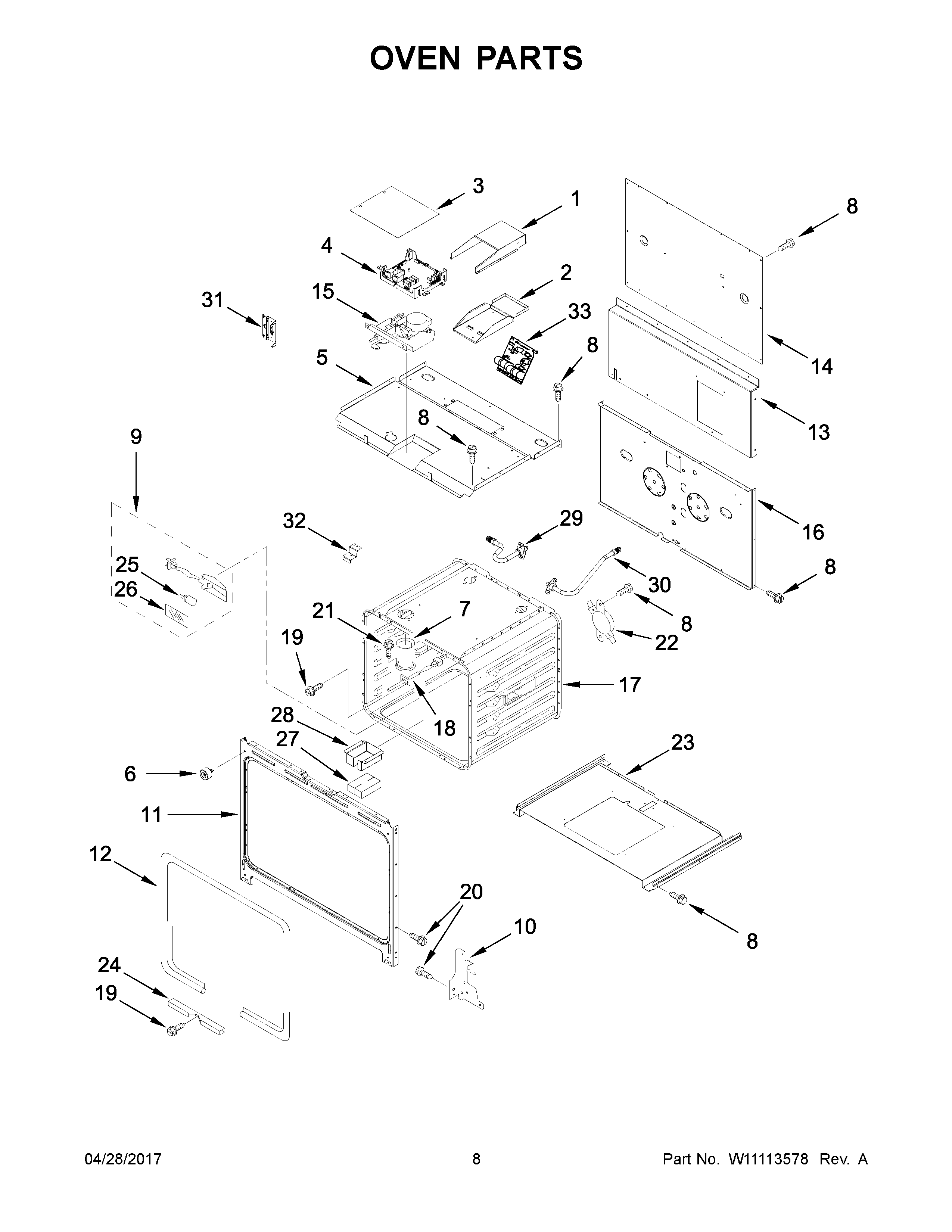

JGRP436WP02 05 – OVEN PARTS

Products

Position	Product
NI	MAY W10299351
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10282811
NI	MAY W10299356
1	DRAWER
2	SUPPORT, CONTROL
3	SEAL
4	MANAGER, APPLIANCE
5	MAY W10145373
6	ASSEMBLY, BUMPER
7	MAY W10145743
8	MAY 7101P426- 60
9	OVEN LIGHT ASSY
10A	MAY 4455606
10	MAY 4455605
11	MAY W10160867
12	GASKET, OVEN
13	MAY W10145391
14	MAY W10321815
15	LATCH, MOTORIZED
16	MAY W10145355
18	MAY W10131825
19	MAY 4449154
20	MAY 4449040
21	Screw
22	THERMOSTAT
23	MAY W10145370
24	MAY W10157511
25	BULB, OVEN
26	LENS
27	MAY W10311009
28	MAY W10310985
29	MAY W10145715
30	MAY W10145716
31	MAY W10145362
32	MAY W10308039
33	MAY W10511278
