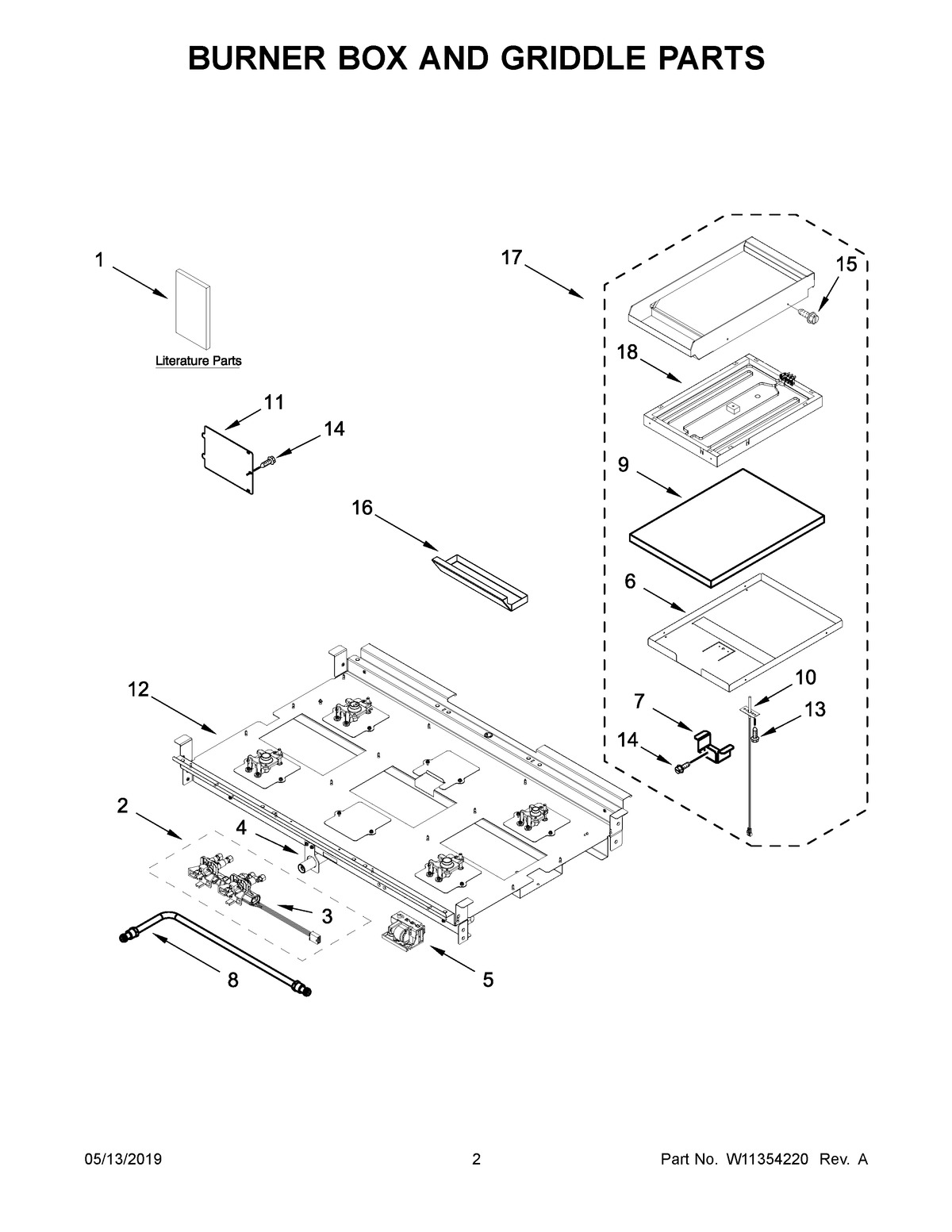

JGRP536HL00 02 – BURNER BOX AND GRIDDLE PARTS

Products

Position	Product
NI	SCREW, ANTI-TIP KIT
NI	MAY W11311197
NI	MAY W11311196
NI	HARNESS, WIFI
NI	MAY W11200325
NI	HARNESS, DOOR LOCK
NI	MAY W11200326
NI	HARNESS, GRIDDLE
NI	MAY W11200308
NI	KIT, LP CONVERSION
NI	LINER (NOT A SERVICEABLE PART)
NI	BRACKET, ANTI-TIP
NI	MAY 4450800
NI	CORD, POWER
1	MAY W11177275
1B	MAY W11177312
1C	GUIDE, INTERNET CONNECTIVITY
1D	MAY W11202371
1E	MAY W11202275
1A	MAY W11177278
2A	MAY W10893062
2	MAY W10893053
3	SWITCH, HARNESS (RIGHT FRONT AND RIGHT REAR)
4	BRACKET, MANIFOLD
5	MODULE, SPARK
6	MAY W11330430
7	BRACKET, GRIDDLE-RTD
8A	MAY W10892443
8	MAY W10892370
9	INSULATION, GRIDDLE
10	SENSOR, GRIDDLE
11	MAY W10115843
13	MAY 3196160
14	MAY 7101P426- 60
15	Screw
16	DRIP, TRAY GRIDDLE
17	ASSEMBLY, GRIDDLE MODULE
18	ELEMENT, GRIDDLE
