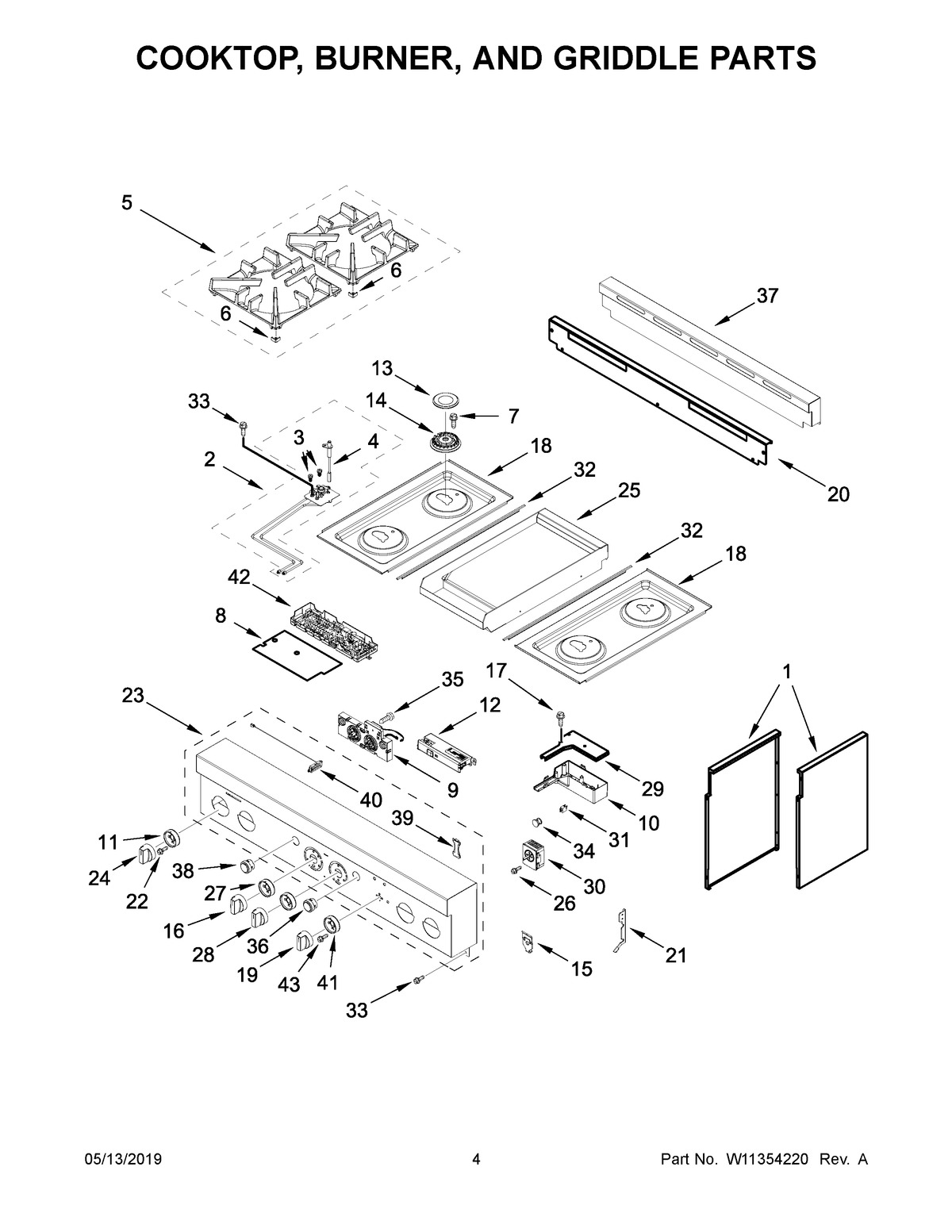

JGRP536HL00 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

Products

Position	Product
1	MAY W11106881
1A	MAY W11106880
2	MAY W10892793
2A	MAY W10892494
2B	MAY W10892475
2C	MAY W10892730
3D	ORIFICE, SIMMER (2.0K) (RIGHT REAR)
3C	ORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3B	ORIFICE, MAIN (7.2K) (RIGHT REAR)
3	ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3A	ORIFICE, MAIN (15.4K) (LEFT REAR AND RIGHT FRONT)
4A	IGNITER (RIGHT REAR)
4	IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
5	ASSEMBLY, GRATE (BLACK (SET OF 2))
6	BUMPER, GRATE
7	SCREW
8	BARRIER, APPLIANCE MANAGER
9	MAY W11095713
10	COVER, WIFI OUTER
11	BEZEL, COOKTOP
12	ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
13	CAP, BURNER (BLACK (SET OF 4))
14	SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
14A	SPREADER, FLAME (LOW) (RIGHT REAR)
15	SPRING CLIP, RANGE
16	MAY W11092267
17	SCREW
18A	MAY W10804371
18	PANEL, COOKTOP (BLACK (LEFT))
19	KNOB, GRIDDLE (STAINLESS)
20	MAY W10323250
21	BRACKET,CONSOLE (LEFT)
21A	BRACKET,CONSOLE (RIGHT)
22	MAY W10919387
23	MAY W11253774
24	KNOB, BURNER (STAINLESS)
25	LINER (NOT A SERVICEABLE PART)
26	Screw
27	BEZEL, OVEN (FOR 2 OVEN KNOBS) (STAINLESS)
28	KNOB, OVEN TEMPERATURE (STAINLESS)
29	COVER, WIFI INNER
30	CONTROL, GRIDDLE
31	LIGHT, INDICATOR HOUSING
32	L-STRIP
33	MAY 7101P426- 60
34	MAY W10294500
35	SCREW
36	BUTTON ASSEMBLY, OVEN START
37	MAY W11183086
38	BUTTON ASSEMBLY, OVEN LIGHT
39	ASSEMBLY, LIGHT PIPE
40	ANTENNA, WIFI
41	BEZEL, GRIDDLE
42	MAY W11100276
43	SCREW
