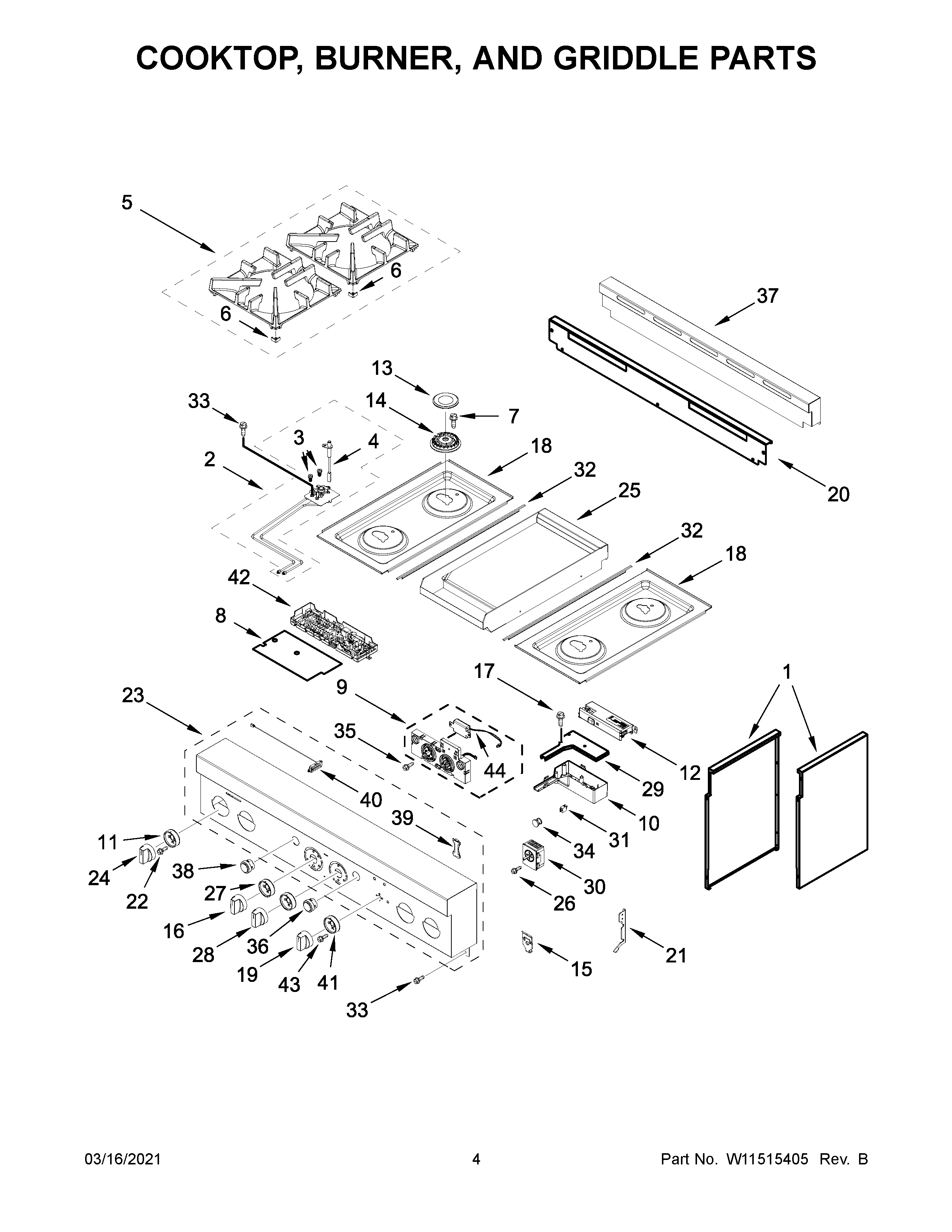

JGRP536HL01 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

JGRP536HL01 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

Written by

in

JGRP536HL01 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

Products

PositionProduct
1W11333179 Whirlpool Side Assembly
1AW11333303 Whirlpool Side Complete Assembly
2W11333305 Whirlpool Holder Orifice
2CW11333309 Whirlpool Orifice Holder
2BW11333307 Whirlpool Orifice Holder
2AW11333306 Whirlpool Orifice Holder Assembly
3AW10892418 Whirlpool Range Orifice Spud
3W11643164 Whirlpool Orifice Spud
3CW11661909 Whirlpool Range Orifice Spud
3DW10892429 Whirlpool Orifice Spud
3BW10892440 Whirlpool Spud Orifice
4W11573760 Whirlpool Surface Igniter
4AW11238756 Whirlpool Surface Igniter
5W11515370 Whirlpool Burner Grate
6W11550692 Whirlpool Bumper
7SCREW
8W11320149 Whirlpool Insulator
9W11492283-includeCORE Whirlpool W11492283 Refrigerator Electronic Control Board + Core
10COVER, WIFI OUTER
11BEZEL-KNOB
12W11234290 Whirlpool Electronic Control Board
13W11328971 Whirlpool Burner Cap
14W11319683 Whirlpool Burner Head
14AW11319673 Whirlpool Burner Head
15W11318207 Whirlpool Clip Assembly
16W11574370 Whirlpool Knob
17W11169708 Whirlpool Screw
18W11316696 Whirlpool Cooktop
18AW11334155 Whirlpool Cooktop
19WPL W10884943
20W10323250 Whirlpool Top Trim
21W10130760 Whirlpool Bracket Mounting
21AW10130759 Whirlpool Mounting Bracket
22W11509770 Whirlpool Screw
23W11444077 Whirlpool Control Panel
24W11574368 Whirlpool Knob
25CABINET (NOT A SERVICEABLE PART)
26WP3196557 Whirlpool Screw
27W11317499 Whirlpool Knob Bezel
28W11574369 Whirlpool Range Knob
29WPL W11205794
30W11318834 Whirlpool Infinite Heat Switch
31W10116114 Whirlpool Indicator Light
32W10291193 Whirlpool Trim Top
33SCREW
34W10294500 Whirlpool Light Lens
35WP3400814 Whirlpool Screw
36W11319196 Whirlpool Push Button
37W11476245 Whirlpool Trim Top
38W11318857 Whirlpool Push Button
39WPL W10896369
40W11318855 Whirlpool Antenna
41W11317495 Whirlpool Knob Bezel
42W11356259-includeCORE Whirlpool W11356259 Washer Electronic Control Board + Core
43WPL 7101P30960
44W11123146 Whirlpool Speaker
