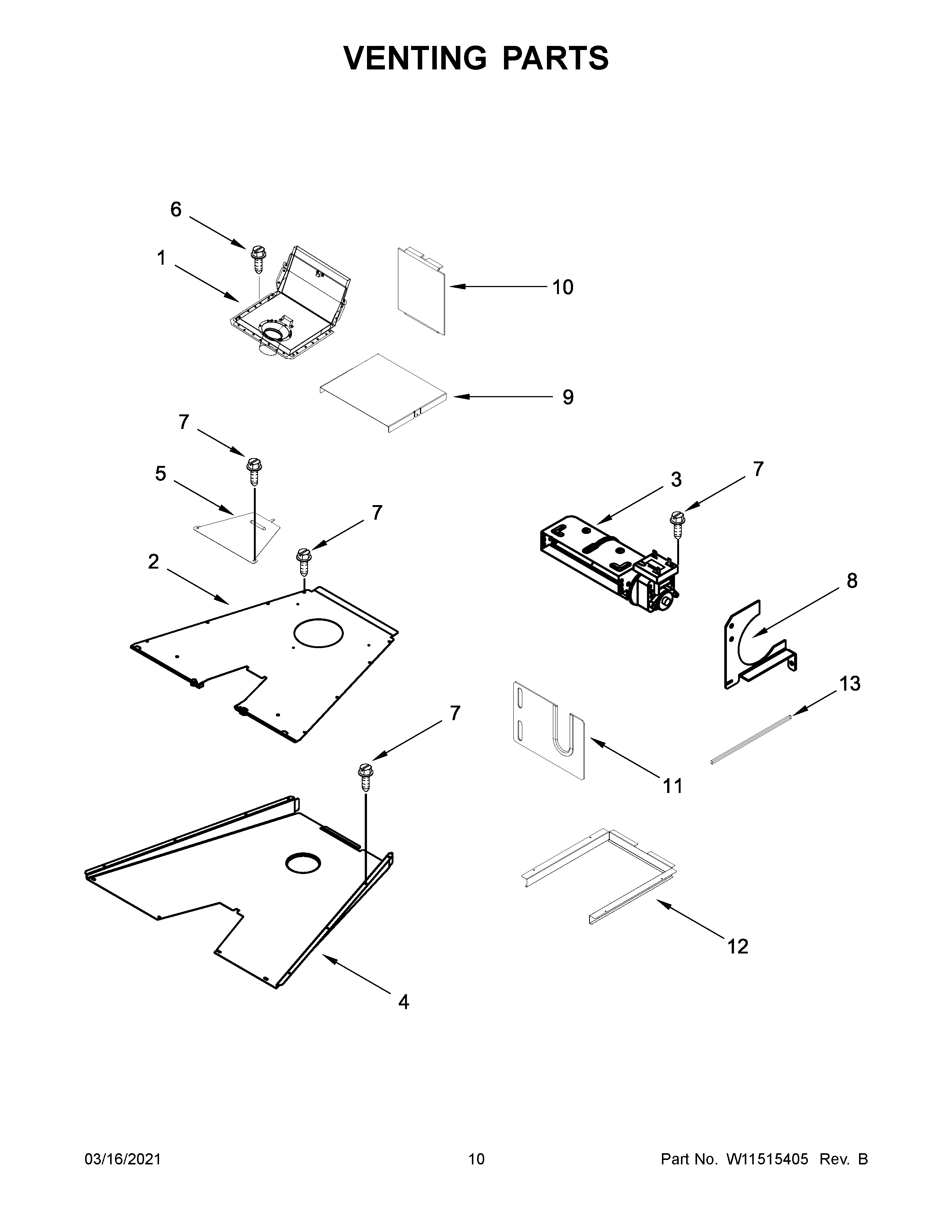

JGRP536HL01 06 – VENTING PARTS

Products

PositionProduct
1W10340579 Whirlpool Exhaust Vent
2VENT, COOLING TOP (30 IN)
3W11248652 Whirlpool Blower
4VENT, COOLING BOTTOM (30 IN)
5PLATE, COOLING LATCH
6WP3400805 Whirlpool Screw Assembly
7SCREW
8BRACKET, BLOWER MOUNT
9RETAINER, INSULATION
10INSULATION, CHIMNEY
11COVER, CHANNEL
12DUCT, PRIMARY AIR (30 IN)
13W11175143 Whirlpool Gasket
