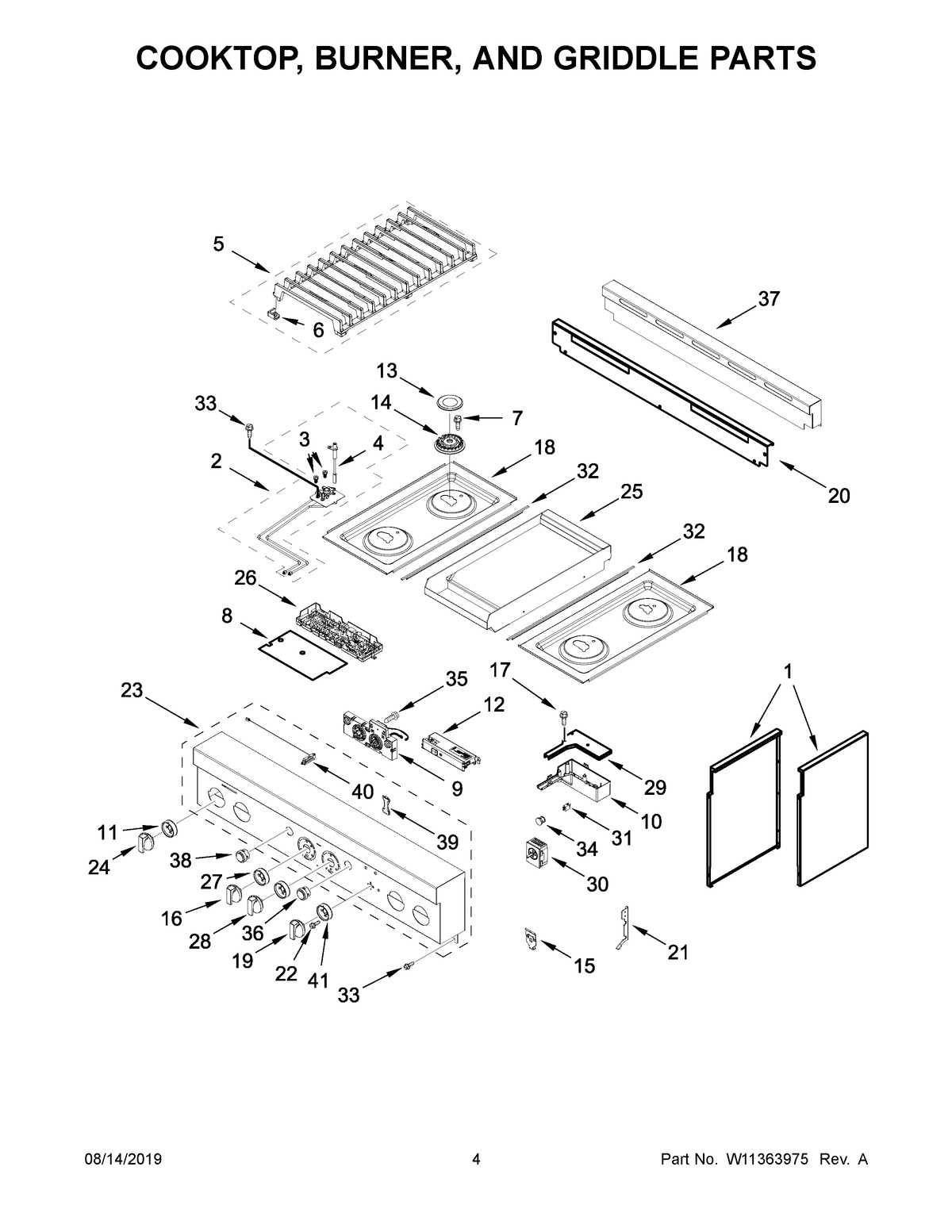

JGRP536HM00 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

Products

Position	Product
1	MAY W11106881
1A	MAY W11106880
2B	MAY W10892475
2	MAY W10892793
2C	MAY W10892730
2A	MAY W10892494
3B	ORIFICE, MAIN (7.2K) (RIGHT REAR)
3D	ORIFICE, SIMMER (2.0K) (RIGHT REAR)
3C	ORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3	ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3A	ORIFICE, MAIN (15.4K) (LEFT REAR AND RIGHT FRONT)
4A	IGNITER (RIGHT REAR)
4	IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
5A	ASSEMBLY, GRATE (BLACK) (RIGHT)
5	ASSEMBLY, GRATE (BLACK) (LEFT)
6	BUMPER, GRATE
7	MAY W11323260
8	BARRIER, APPLIANCE MANAGER
9	MAY W11095713
10	COVER, WIFI OUTER
11	BEZEL, COOKTOP
12	ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
13	CAP, BURNER (BLACK (SET OF 4))
14	SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
14A	SPREADER, FLAME (LOW) (RIGHT REAR)
15	SPRING CLIP, RANGE
16	MAY W11317854
17	SCREW
18	PANEL, COOKTOP (BLACK) (LEFT)
18A	PANEL, COOKTOP (BLACK) (RIGHT)
19	KNOB, GRIDDLE (STAINLESS)
20	MAY W10323250
21	BRACKET,CONSOLE (LEFT)
21A	BRACKET,CONSOLE (RIGHT)
22	SCREW
23	MAY W11253774
24	KNOB, BURNER (STAINLESS)
25	LINER (NOT A SERVICEABLE PART)
26	MAY W11100276
27	BEZEL, OVEN (FOR 2 OVEN KNOBS) (STAINLESS)
28	KNOB, OVEN TEMPERATURE (STAINLESS)
29	COVER, WIFI INNER
30	CONTROL, GRIDDLE
31	LIGHT, INDICATOR HOUSING
32	L-STRIP
33	MAY 7101P426- 60
34	MAY W10294500
35	SCREW
36	BUTTON ASSEMBLY, OVEN START
37	MAY W11183086
38	BUTTON ASSEMBLY, OVEN LIGHT
39	ASSEMBLY, LIGHT PIPE
40	ANTENNA, WIFI
41	BEZEL, GRIDDLE
