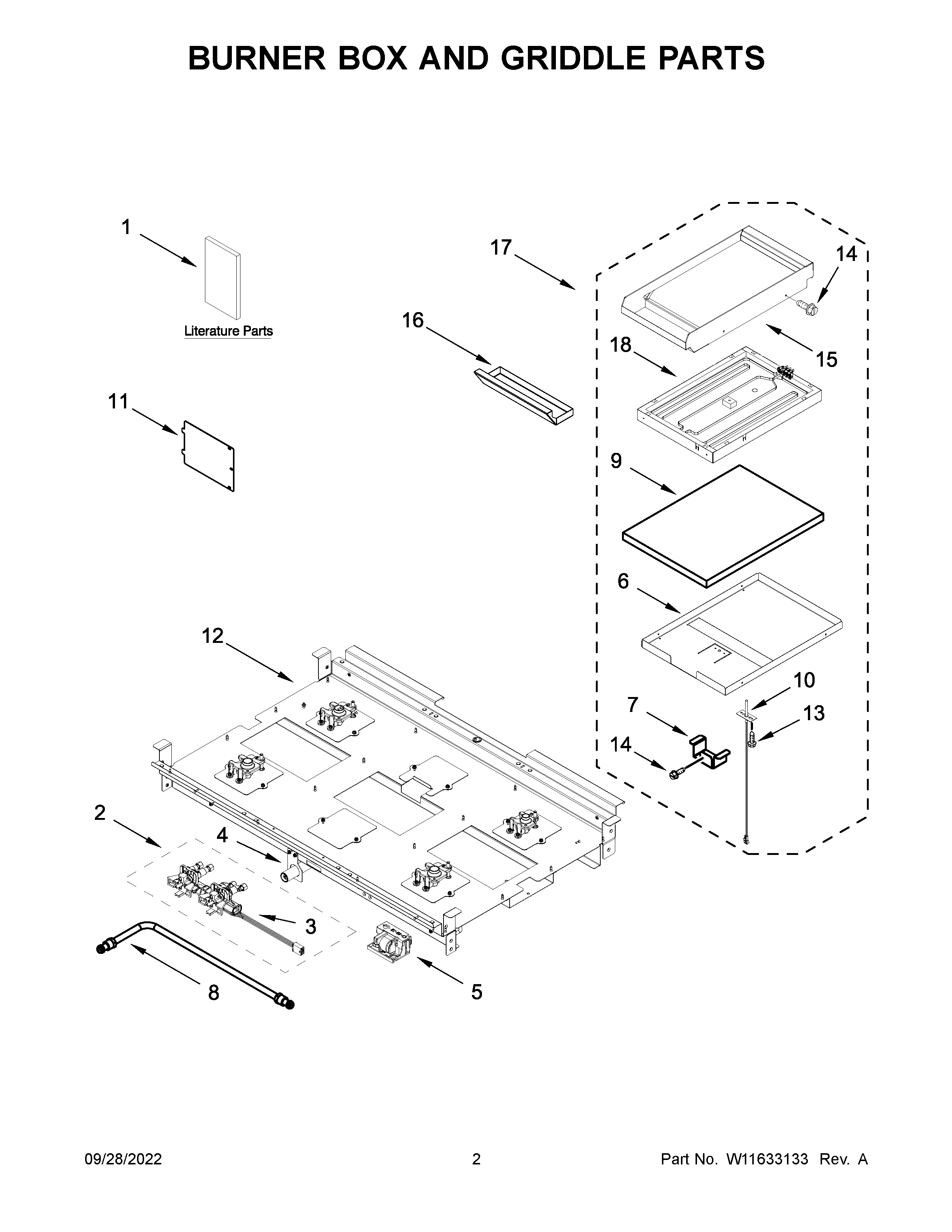

JGRP536HM05 02 – BURNER BOX AND GRIDDLE PARTS

JGRP536HM05 02 – BURNER BOX AND GRIDDLE PARTS

Written by

in

JGRP536HM05 02 – BURNER BOX AND GRIDDLE PARTS

Products

PositionProduct
NIW11317791 Whirlpool Wire Harness
NIW10780278 Whirlpool Wire Harness
NIW11200325 Whirlpool Wire Harness
NIW11317787 Whirlpool Wire Harness
NIW10624584 Whirlpool Power Cord
NIHARNESS, MAIN (36 IN)
NIHARNESS, COOKTOP
NISCREW, ANTI-TIP KIT
NIW11544575 Whirlpool Anti-Tip Bracket
NIW11446239 Whirlpool Wire Harness
NIW11446236 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NIW11428599 Whirlpool Conversion Kit
NI4450800 Whirlpool Oven Screw
NI16515 Whirlpool Clip
1FSHEET, TECH
1EDIAGRAM, WIRING (OVEN)
1DDIAGRAM, WIRING (COOKTOP)
1CGUIDE, INTERNET CONNECTIVITY
1BGUIDE, QUICK START
1USE AND CARE GUIDE
1AINSTALLATION INSTRUCTIONS
2W11333175 Whirlpool Manifold Assembly
2AW11333176 Whirlpool Manifold
3W11320016 Whirlpool Wire Harness
4W11320153 Whirlpool Mounting Bracket
5W11319687 Whirlpool Spark Module
6TRAY, GRIDDLE INSULATION
7BRACKET, GRIDDLE-RTD
8ATUBE, MANIFOLD SUPPLY (RIGHT)
8TUBE, MANIFOLD SUPPLY (LEFT)
9INSULATION, GRIDDLE
10W11319618 Whirlpool Sensor
11W10115843 Whirlpool Access Cover
13W10491985 Whirlpool Screw
14W10162096 Whirlpool Screw
15W11602622 Whirlpool Griddle Assembly
16W10276497 Whirlpool Drip Tray
17W11602621 Whirlpool Module
18W11319602 Whirlpool Grille Element
