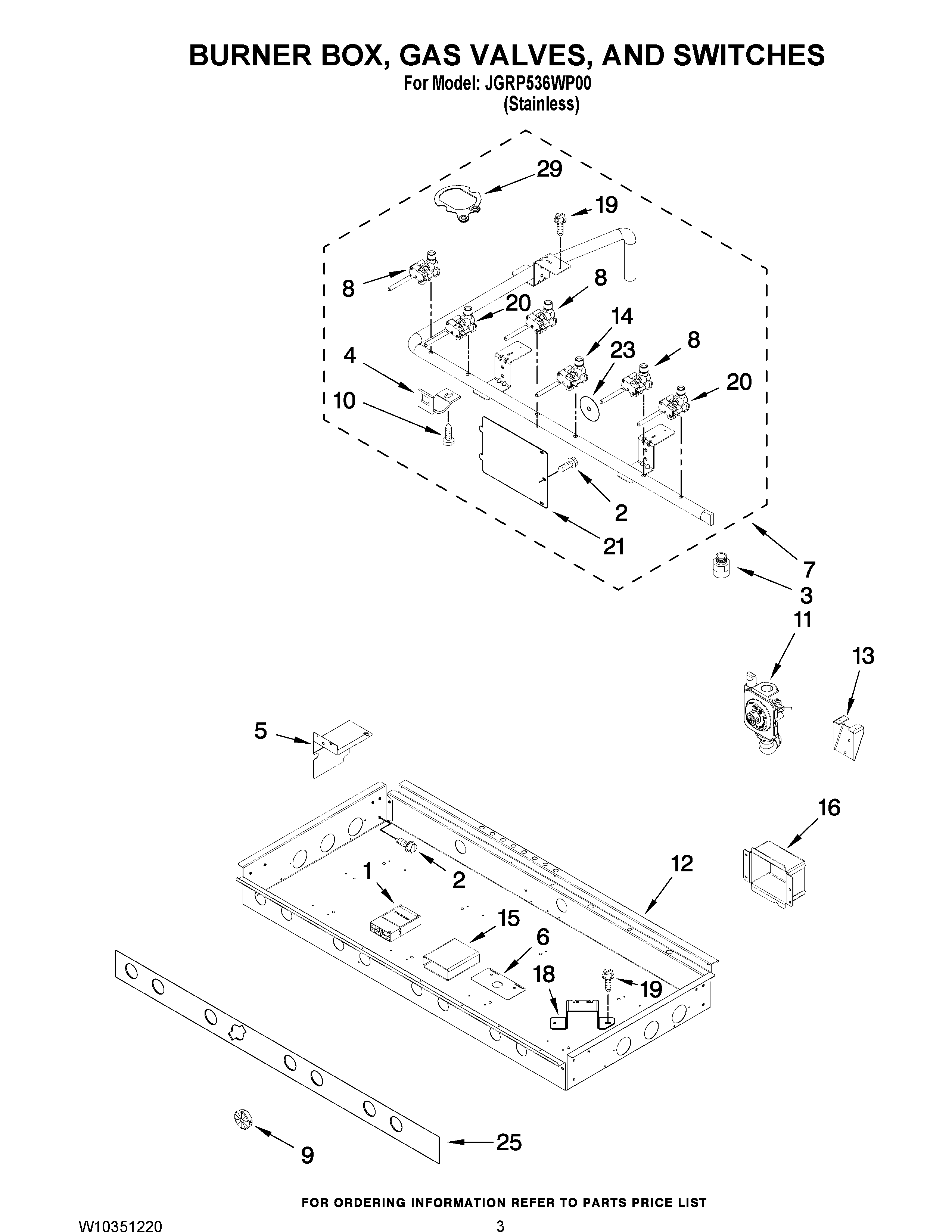

JGRP536WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

JGRP536WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

JGRP536WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NIMAY W10145479
NIMAY W10145480
NIMAY W10145481
NITUBING, GAS (RF – RIGHT)
NIMAY W10276501
1MAY 7431P038-60
3ADAPTER, FEMALE
4MAY W10189107
5MAY W10325491
6MAY W10115855
7MAY W10145508
8VALVE, SINGLE LR,CF,RR
9MAY W10189097
10SCREW, VALVE MTG
11MAY W10145584
12MAY W10272892
13MAY W10308042
14VALVE, SINGLE (CR)
15INSULATION, SPARK MODULE
16MAY W10308051
18BRACKET, BURNER (CR)
18BRACKET, BURNER (RF,RR,CF,LR,LF)
19MAY 7101P426- 60
20VALVE, GAS (LF & RF)
21MAY W10115843
23MAY W10189177
25MAY W10145622
29MAY 8286930
