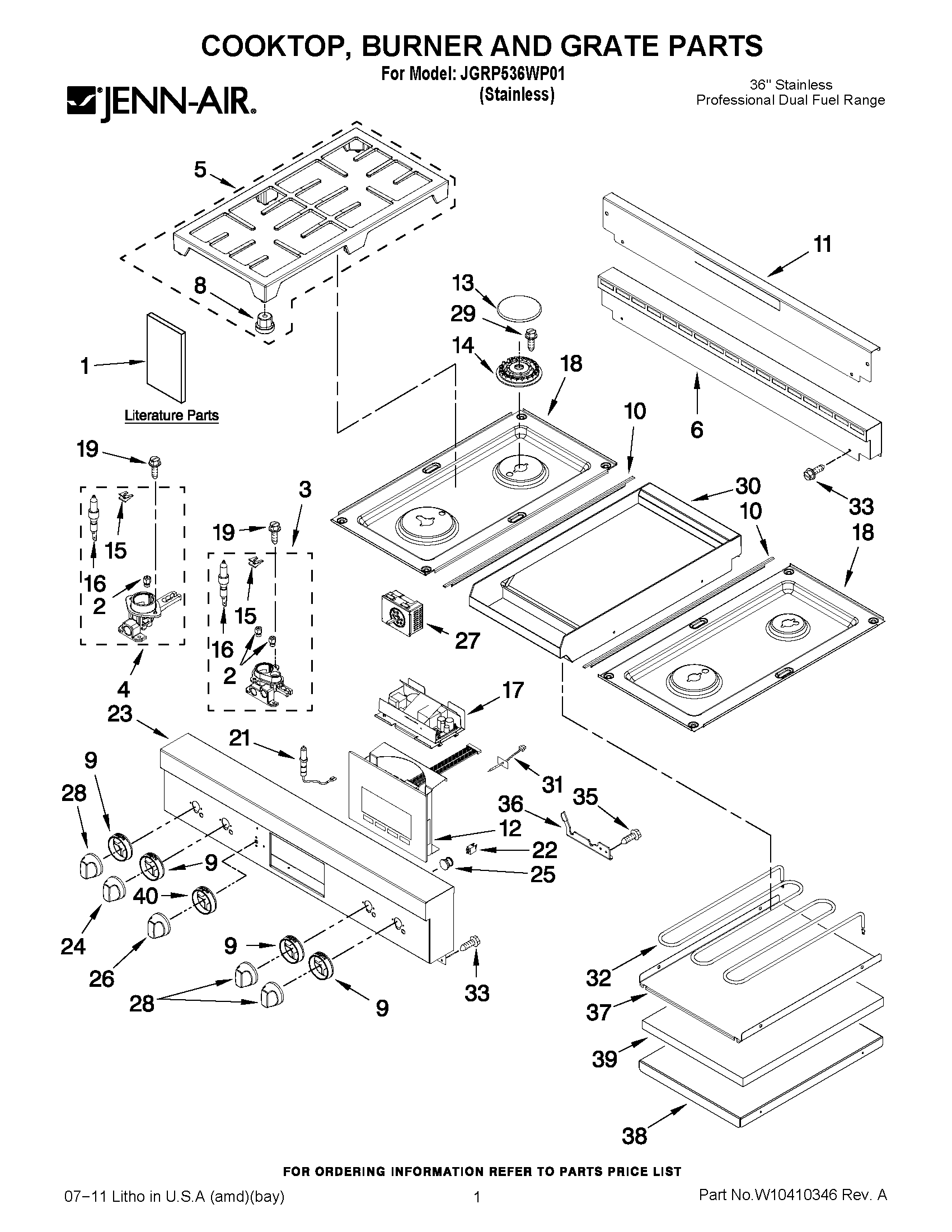

JGRP536WP01 01 – COOKTOP, BURNER AND GRATE PARTS

JGRP536WP01 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

JGRP536WP01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1INSTR, INSTALLER
1MAY W10399389
1MAY W10403308
1MAY W10394575
1MAY W10403309
1TIPS, SAFE COOKING (FRENCH)
1TIPS, SAFE COOKING (ENGLISH)
2ORIFICE (LF-LOW)
2ORIFICE (LF-HIGH)
2ORIFICE (CR)
2ORIFICE (15K) (LEFT REAR, CENTER FRONT, RIGHT REAR)
3ORIFICE HOLDER (DUAL-LF)
4ORIFICE HOLDER (RR)
4MAY W10364556
5MAY W10276551
6MAY W10323249
8PAD, GRATE
9MAY W10276494
10L-STRIP
11MAY W10323250
12MAY W10344181
13MAY W10364463
13MAY W10256032
13MAY W10256034
14BURNER, HEAD (LF)
14BURNER HEAD (RR)
14BURNER, HEAD (LR,RF)
15MAY W10256046
15SPRING, ELECTRODE (RR)
16ELECTRODE (LR, RF & RR)
17ASSEMBLY, POWER SUPPLY
18MAY W10352968
18MAY W10352969
19SCREW (ALL BUT CENTER REAR)
21ELECTRODE, WIRE
22LIGHT, INDICATOR HOUSING
23MAY W10295786
24KNOB, CONTROL LF
25MAY W10294500
26MAY W10145566
27MAY W10116113
28KNOB, CONTROL (LR, RF) LR, RF
29MAY 3400099
30MAY W10276498
31MAY W10319835
32ELEMENT, GRIDDLE
33SCREW (8BX3/8-NI)
35MAY 7101P500-60
36BRACKET,CONSOLE (RIGHT)
36BRACKET,CONSOLE (LEFT)
37MAY W10145620
38MAY W10246074
39MAY W10145621
40MAY W10145453
