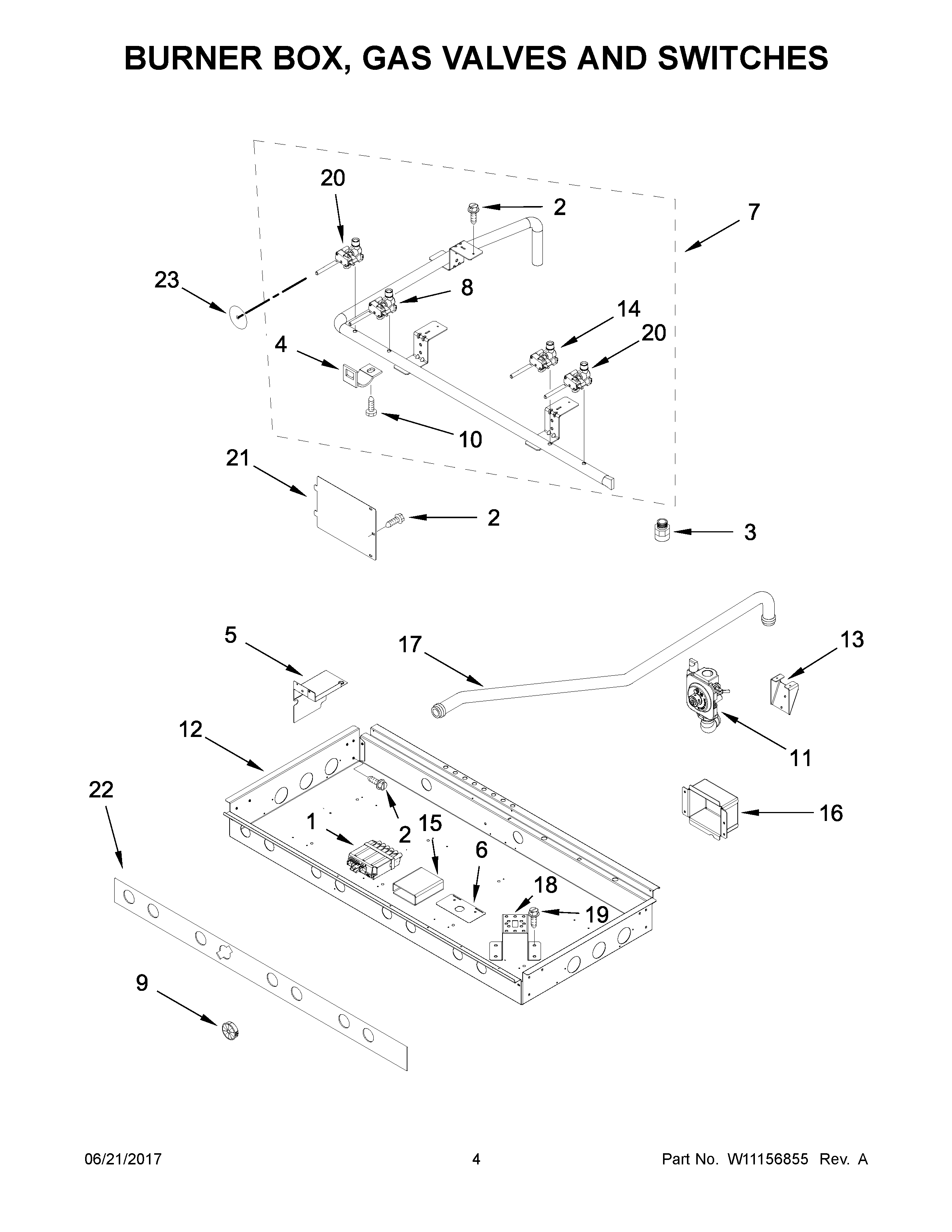

JGRP536WP02 03 – BURNER BOX, GAS VALVES AND SWITCHES

Products

PositionProduct
NITUBING, GAS (LF-RIGHT)
NITUBING, GAS (LF-LEFT)
NITUBING, GAS (LR)
NIMAY W10368335
NILINER (NOT A SERVICEABLE PART)
NIMAY W10276501
1MODULE, SPARK
3ADAPTER, FEMALE
4BRACKET, VALVE
5BRACKET, SPARK MODULE
6MAY W10115855
7MAY W10402607
8VALVE, GAS (LF)
9MAY W10189097
10SCREW, VALVE MTG
11MAY W10145584
12MAY W10371520
13MAY W10308042
14VALVE, SIMMER
15INSULATION, SPARK MODULE
16MAY W10308051
17MAY W10348600
18BRACKET, BURNER
19MAY 7101P426- 60
20VALVE, SINGLE LR,RF
21MAY W10115843
22MAY W10145622
23MAY W10189177
