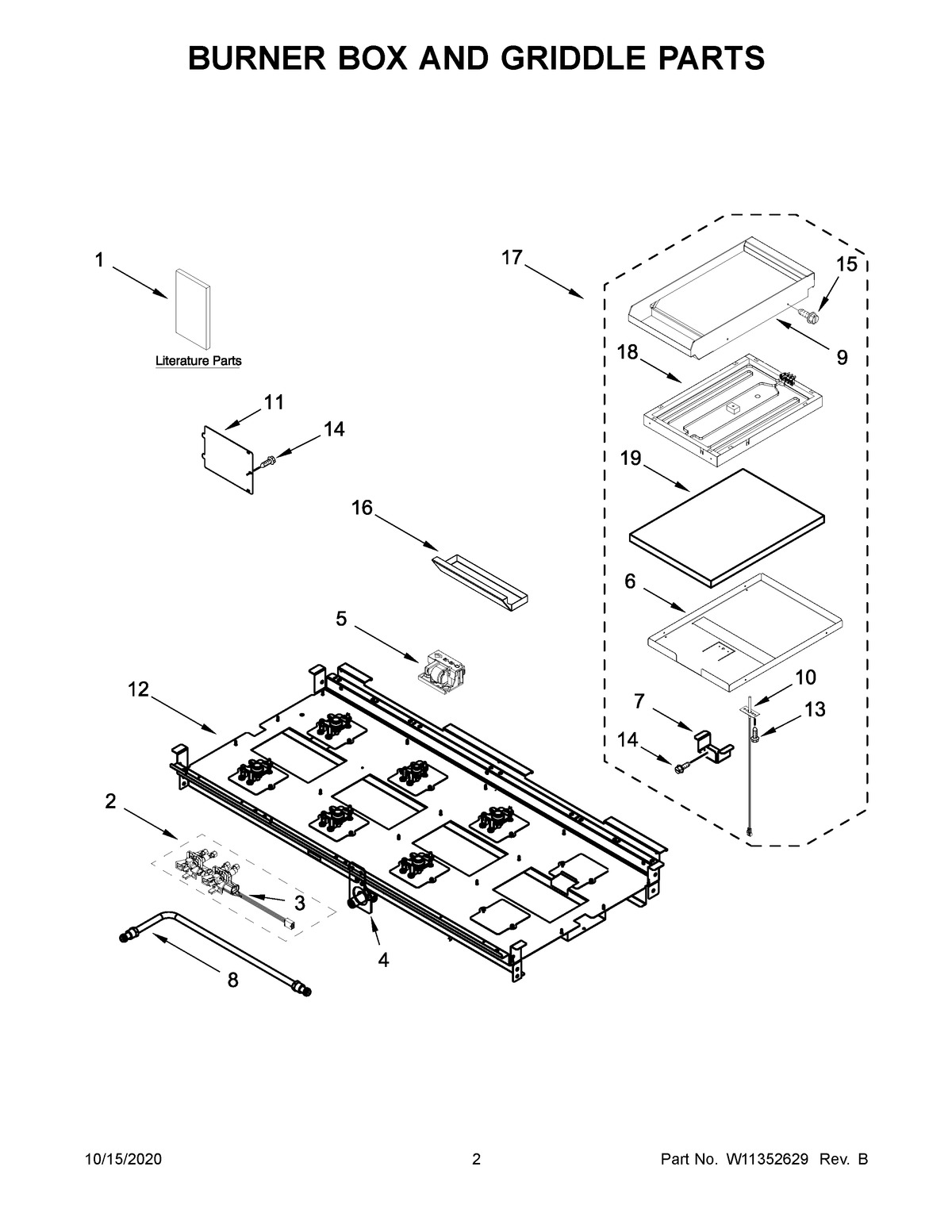

JGRP548HL00 02 – BURNER BOX AND GRIDDLE PARTS

Products

Position	Product
NI	HARNESS, COMMUNICATION
NI	MAY W11311197
NI	MAY W11311196
NI	HARNESS, WIFI
NI	HARNESS, DOOR LOCK
NI	MAY W11200305
NI	HARNESS, COOKTOP
NI	HARNESS, GRIDDLE
NI	KIT, LP CONVERSION
NI	CORD, POWER
NI	MAY 4450800
NI	SCREW, ANTI-TIP KIT
NI	LINER (NOT A SERVICEABLE PART)
NI	BRACKET, ANTI-TIP
1D	MAY W11202375
1C	GUIDE, INTERNET CONNECTIVITY
1B	MAY W11177312
1A	MAY W11177278
1	MAY W11177275
1E	MAY W11202275
2	ASSEMBLY, VALVE MANIFOLD (LEFT FRONT AND LEFT REAR)
2B	ASSEMBLY, VALVE MANIFOLD (LEFT FRONT AND LEFT REAR)
2A	ASSEMBLY, VALVE MANIFOLD (RIGHT FRONT AND RIGHT REAR)
3	SWITCH, HARNESS (RIGHT FRONT AND RIGHT REAR)
4	BRACKET, MANIFOLD
5	MODULE, SPARK
6	MAY W11330430
7	BRACKET, GRIDDLE-RTD
8B	TUBE, MANIFOLD SUPPLY (RIGHT CENTER)
8A	TUBE, MANIFOLD SUPPLY (LEFT CENTER)
8	TUBE, MANIFOLD SUPPLY (LEFT)
9	MODULE, GRIDDLE
10	SENSOR, GRIDDLE
11	MAY W10115843
13	MAY 3196160
14	MAY 7101P426- 60
15	Screw
16	DRIP, TRAY GRIDDLE
17	ASSEMBLY, GRIDDLE MODULE
18	ELEMENT, GRIDDLE
19	INSULATION, GRIDDLE
