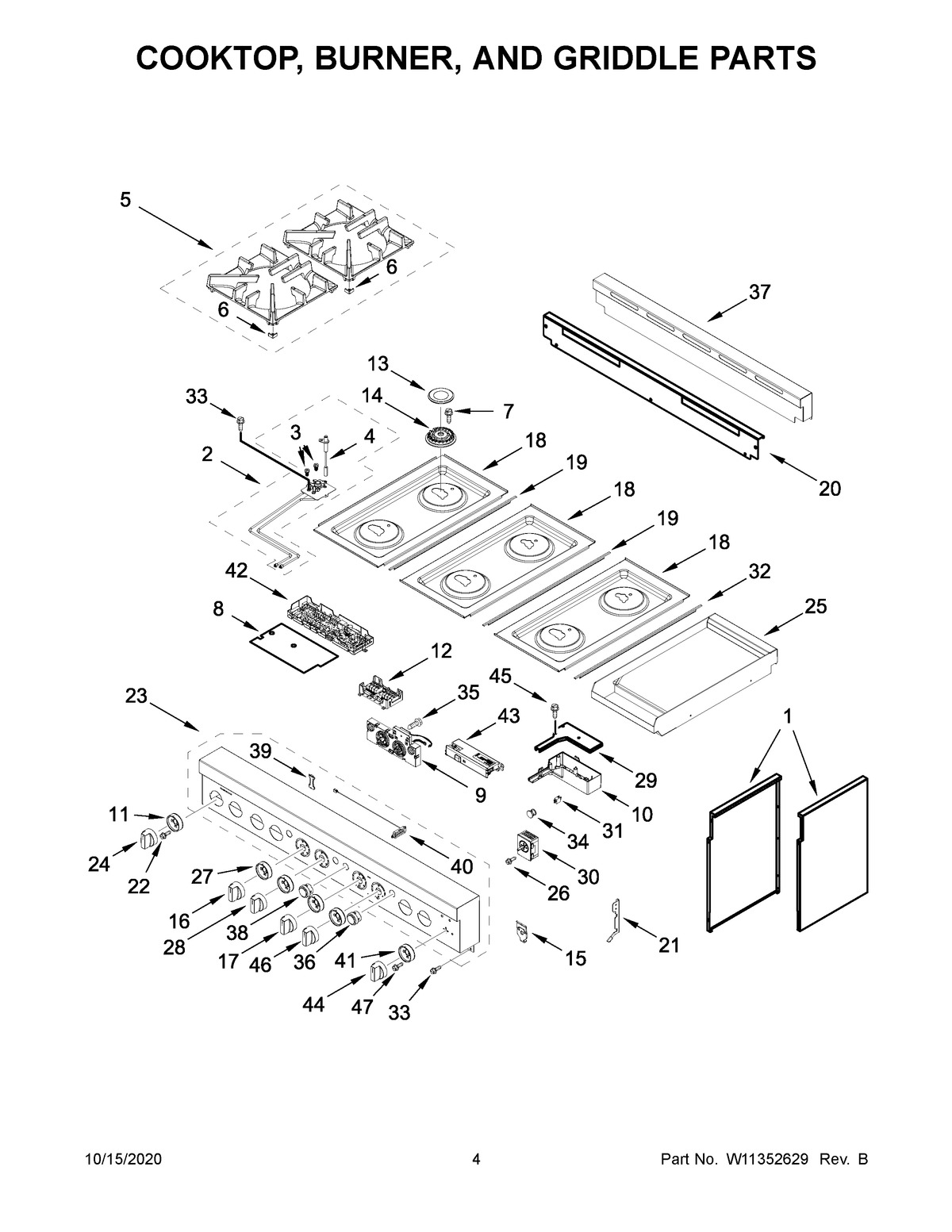

JGRP548HL00 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

JGRP548HL00 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

Written by

in

JGRP548HL00 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

Products

PositionProduct
1PANEL, CABINET SIDE (LEFT)
1APANEL, CABINET SIDE (RIGHT)
2DASSEMBLY, ORIFICE HOLDER (RIGHT CENTER FRONT)
2AASSEMBLY, ORIFICE HOLDER (LEFT REAR)
2ASSEMBLY, ORIFICE HOLDER (LEFT FRONT)
2CASSEMBLY, ORIFICE HOLDER (CENTER REAR)
2EASSEMBLY, ORIFICE HOLDER (RIGHT CENTER REAR)
2BASSEMBLY, ORIFICE HOLDER (LEFT CENTER FRONT)
3DORIFICE, SIMMER (2.0K) (RIGHT REAR)
3CORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3BORIFICE, MAIN (7.2K) (RIGHT REAR)
3ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3AORIFICE, MAIN (15.4K) (LEFT REAR AND RIGHT FRONT)
4AIGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4BIGNITER (RIGHT REAR)
4IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
5ASSEMBLY, GRATE (BLACK (SET OF 2))
6BUMPER, GRATE
7MAY W11323260
8BARRIER, APPLIANCE MANAGER
9MAY W11219188
10COVER, WIFI OUTER
11BEZEL, COOKTOP
12MAY W10871065
13CAP, BURNER (BLACK (SET OF 6))
14SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
14ASPREADER, FLAME (LOW) (RIGHT REAR)
15SPRING CLIP, RANGE
16MAY W11263512
17MAY W11092267
18APANEL, COOKTOP (BLACK (RIGHT CENTER))
18BPANEL, COOKTOP (BLACK) (RIGHT CENTER)
18PANEL, COOKTOP (BLACK (LEFT))
19TRIM, T-STRIP
20MAY W10323252
21BRACKET,CONSOLE (LEFT)
21ABRACKET,CONSOLE (RIGHT)
22MAY W10919387
23MAY W11253772
24KNOB, BURNER (STAINLESS)
25LINER (NOT A SERVICEABLE PART)
26Screw
27BEZEL, OVEN (FOR 2 OVEN KNOBS) (STAINLESS)
28MAY W11263513
29COVER, WIFI INNER
30CONTROL, GRIDDLE
31LIGHT, INDICATOR HOUSING
32L-STRIP
33MAY 7101P426- 60
34MAY W10294500
35SCREW
36BUTTON ASSEMBLY, OVEN START
37MAY W11183087
38BUTTON ASSEMBLY, OVEN LIGHT
39ASSEMBLY, LIGHT PIPE
40ANTENNA, WIFI
41BEZEL, GRIDDLE
42MAY W11100277
43ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
44KNOB, GRIDDLE (STAINLESS)
45SCREW
46KNOB, OVEN TEMPERATURE (STAINLESS)
47SCREW
