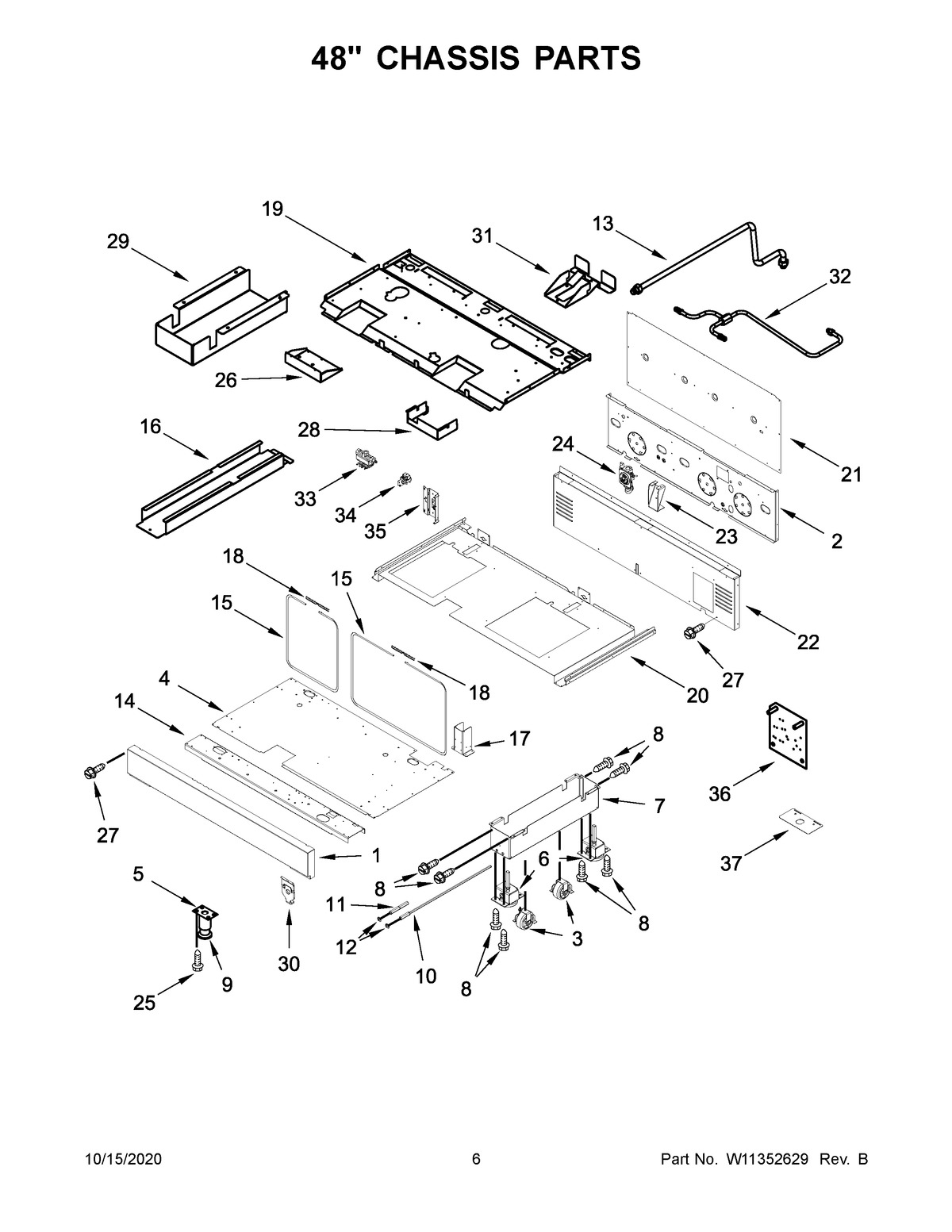

JGRP548HL00 04 – 48″ CHASSIS PARTS

JGRP548HL00 04 – 48″ CHASSIS PARTS

Written by

in

JGRP548HL00 04 – 48″ CHASSIS PARTS

Products

Position	Product
1	KICKPLATE
2	BACK, CHASSIS
3	MAY W10138054
4	DUCT, BOTTOM (48")
5	PLATE, MOUNTING FOOT
6	FOOT
7	BASE, LEVELING LEG
8	MAY 4449743
9	MAY 9759117
10	MAY W10115869
11	MAY W10115793
12	RING
13	MAY W11181648
14	SUPPORT, CHANNEL
15A	GASKET, OVEN (18")
15	GASKET, OVEN (30")
16	DUCT-CHASSIS, REAR
17	MAY W10115819
18	MAY W11362015
19	TOP, CHASSIS
20	CHASSIS, BOTTOM
21	PANEL, BACK TOP
22	PANEL, BACK BOTTOM
23	BRACKET, PRESSURE REGULATOR
24	REGULATOR, PRESSURE
25	MAY 3400518
26	DRAWER, APPLIANCE MANAGER
27	MAY 7101P426- 60
28	CABINET, APPLIANCE MANAGER
29	CHANNEL, WIRE
30	SPRING CLIP, RANGE
31	MAY W11190223
32	MAY W11112366
33	MAY W10145680
34	MAY W10311268
35	MAY W10145362
36	MAY W10511278
37	MAY W10115855
