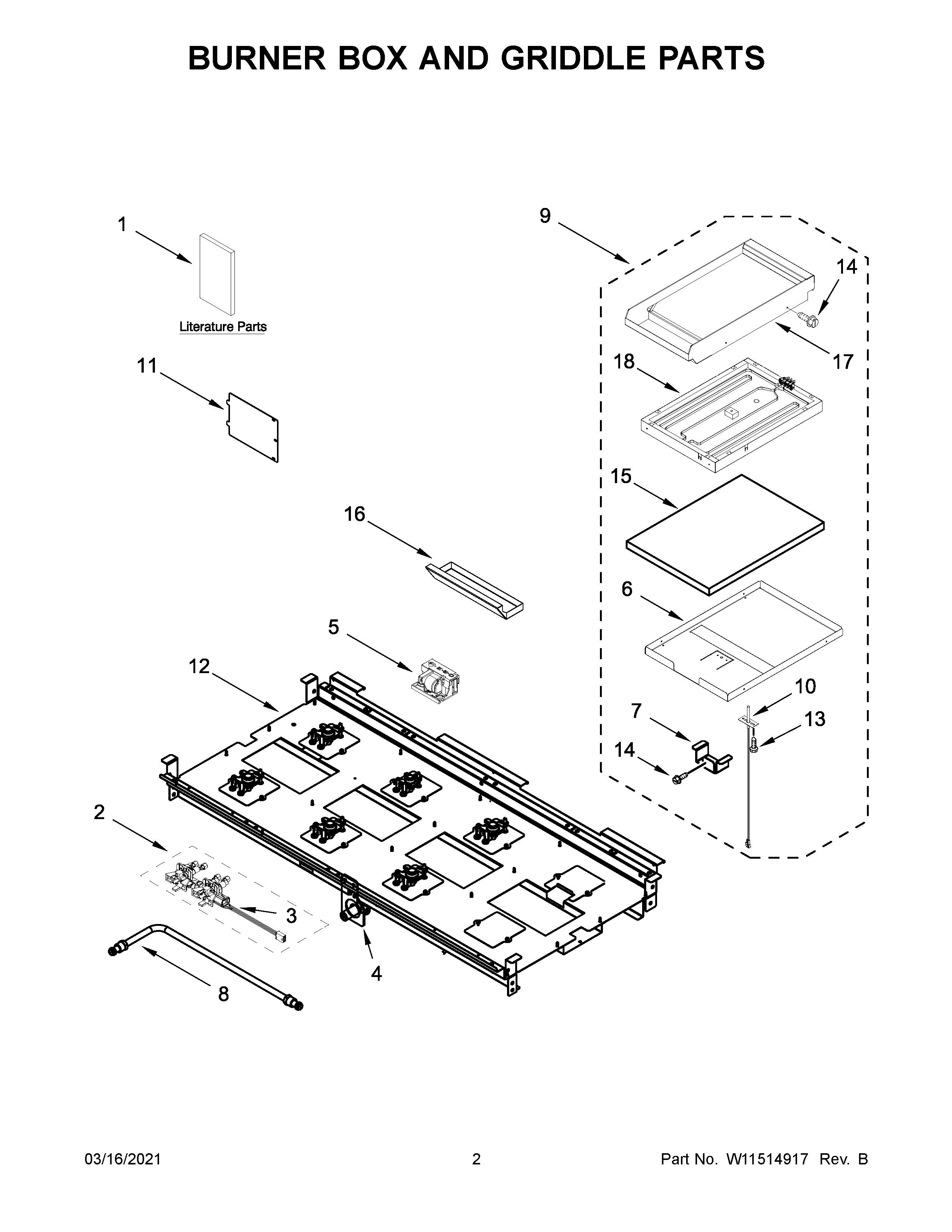

JGRP548HL01 02 – BURNER BOX AND GRIDDLE PARTS

JGRP548HL01 02 – BURNER BOX AND GRIDDLE PARTS

Written by

in

JGRP548HL01 02 – BURNER BOX AND GRIDDLE PARTS

Products

PositionProduct
NIW11317788 Whirlpool Wire Harness
NIW10780278 Whirlpool Wire Harness
NIW11200305 Whirlpool Wire Harness
NIW11317787 Whirlpool Wire Harness
NIW11317791 Whirlpool Wire Harness
NIW11317786 Whirlpool Wire Harness
NIW10624584 Whirlpool Power Cord
NISCREW, ANTI-TIP KIT
NICABINET (NOT A SERVICEABLE PART)
NI4450800 Whirlpool Oven Screw
NIW11544575 Whirlpool Anti-Tip Bracket
NIW11428599 Whirlpool Conversion Kit
NIW11446236 Whirlpool Wire Harness
NIW11446239 Whirlpool Wire Harness
1BGUIDE, QUICK START
1GUIDE, USE AND CARE
1AINSTRUCTIONS, INSTALLATION
1DDIAGRAM, WIRING
1ESHEET, TECH
1CGUIDE, INTERNET CONNECTIVITY
2W11320017 Whirlpool Manifold
2AW11320019 Whirlpool Manifold
2BW11320025 Whirlpool Manifold
3W11320016 Whirlpool Wire Harness
4W11320153 Whirlpool Mounting Bracket
5W11319687 Whirlpool Spark Module
6TRAY, GRIDDLE INSULATION
7BRACKET, GRIDDLE-RTD
8W11320029 Whirlpool Gas Tubing
8ATUBE, MANIFOLD SUPPLY (LEFT CENTER)
8BTUBE, MANIFOLD SUPPLY (RIGHT CENTER)
9W11602621 Whirlpool Module
10W11319618 Whirlpool Sensor
11W10115843 Whirlpool Access Cover
13W10491985 Whirlpool Screw
14W10162096 Whirlpool Screw
15INSULATION, GRIDDLE
16W10276497 Whirlpool Drip Tray
17W11602622 Whirlpool Griddle Assembly
18W11319602 Whirlpool Grille Element
