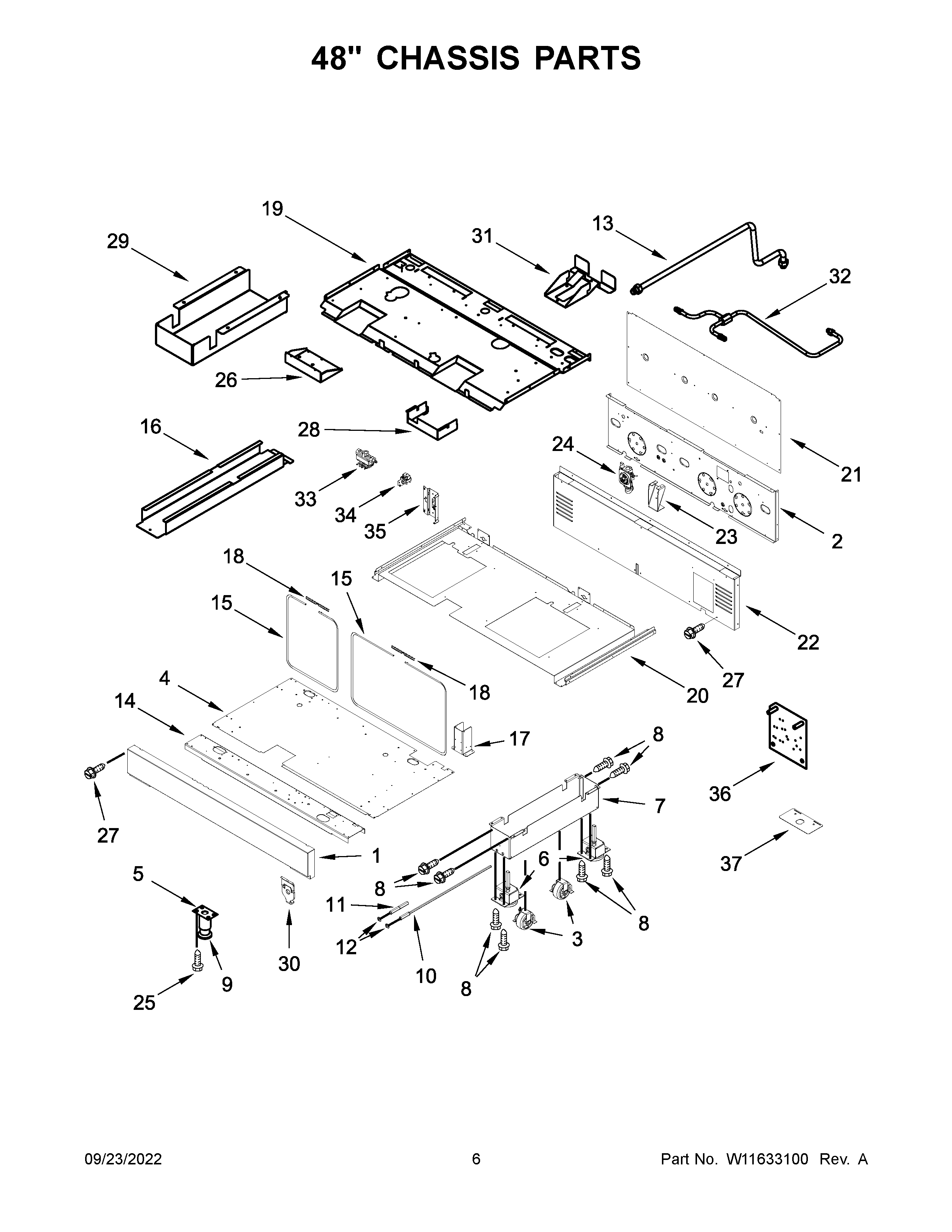

JGRP548HL05 04 – 48″ CHASSIS PARTS

Products

Position	Product
1	W11317946 Whirlpool Cover Plate
2	BACK, CHASSIS
3	WPW10138054 Whirlpool Refrigerator Cabinet Roller
4	W11320536 Whirlpool Duct
5	WP9759118 Whirlpool Mounting Plate
6	W10859931 Whirlpool Foot Level
7	W10908710 Whirlpool Mounting Bracket
8	WP4449743 Whirlpool Screw
9	WP9759117 Whirlpool Leveling Foot
10	W10115869 Whirlpool Shaft
11	W10115793 Whirlpool Shaft
12	489504 Whirlpool Oven Ring
13	W11364214 Whirlpool Gas Tubing
14	SUPPORT, CHANNEL
15A	W11115326 Whirlpool Gasket
15	W11675844 Whirlpool Oven Gasket
16	W11050145 Whirlpool HVAC Air Duct
17	W10115819 Whirlpool Brace
18	W11362015 Whirlpool Retainer
19	TOP, CHASSIS
20	CHASSIS, BOTTOM
21	PANEL, BACK TOP
22	PANEL, BACK BOTTOM
23	W11320155 Whirlpool Mounting Bracket
24	W11193822 Whirlpool Regulator
25	3400518 Whirlpool Oven Foot Mount Screw
26	DRAWER, APPLIANCE MANAGER
27	SCREW
28	CABINET, APPLIANCE MANAGER
29	CHANNEL, WIRE
30	W11318207 Whirlpool Clip Assembly
31	W11190223 Whirlpool Bracket Assembly
32	W11355235 Whirlpool Gas Tubing
33	W11239228 Whirlpool Gas Valve
34	W10311268 Whirlpool Gas Valve
35	W10145362 Whirlpool Control Bracket
36	WPW10511278 Whirlpool Spark Module
37	W10115855 Whirlpool Support Bracket
