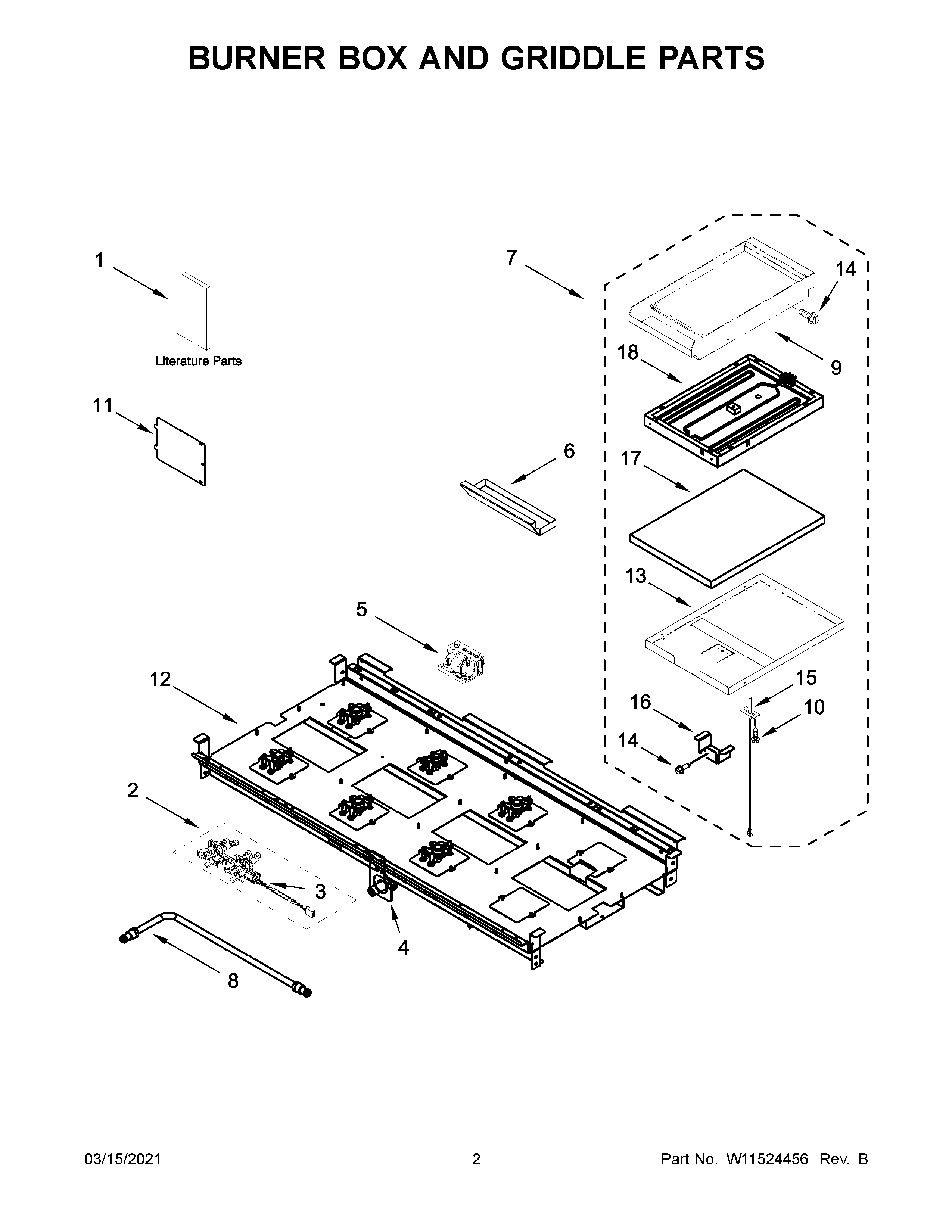

JGRP548HM01 02 – BURNER BOX AND GRIDDLE PARTS
Written by
in
JGRP548HM01 02 – BURNER BOX AND GRIDDLE PARTS
Products
Position
Product
NI
W11317788 Whirlpool Wire Harness
NI
W11317791 Whirlpool Wire Harness
NI
W11317787 Whirlpool Wire Harness
NI
W10780278 Whirlpool Wire Harness
NI
W10624584 Whirlpool Power Cord
NI
W11200305 Whirlpool Wire Harness
NI
W11317786 Whirlpool Wire Harness
NI
SCREW, ANTI-TIP KIT
NI
W11428599 Whirlpool Conversion Kit
NI
W11446236 Whirlpool Wire Harness
NI
W11446239 Whirlpool Wire Harness
NI
CABINET (NOT A SERVICEABLE PART)
NI
4450800 Whirlpool Oven Screw
NI
W11544575 Whirlpool Anti-Tip Bracket
1C
GUIDE, QUICK START
1
GUIDE, USE AND CARE
1A
INSTRUCTIONS, INSTALLATION
1D
DIAGRAM, WIRING
1B
GUIDE, INTERNET CONNECTIVITY
1E
SHEET, TECH
2B
W11320025 Whirlpool Manifold
2
W11320017 Whirlpool Manifold
2A
W11320019 Whirlpool Manifold
3
W11320016 Whirlpool Wire Harness
4
W11320153 Whirlpool Mounting Bracket
5
W11319687 Whirlpool Spark Module
6
W10276497 Whirlpool Drip Tray
7
W11602621 Whirlpool Module
8B
TUBE, MANIFOLD SUPPLY (RIGHT CENTER)
8A
TUBE, MANIFOLD SUPPLY (LEFT CENTER)
8
W11320029 Whirlpool Gas Tubing
9
W11602622 Whirlpool Griddle Assembly
10
W10491985 Whirlpool Screw
11
W10115843 Whirlpool Access Cover
13
TRAY, GRIDDLE INSULATION
14
W10162096 Whirlpool Screw
15
W11319618 Whirlpool Sensor
16
BRACKET, GRIDDLE-RTD
17
INSULATION, GRIDDLE
18
W11319602 Whirlpool Grille Element
←
