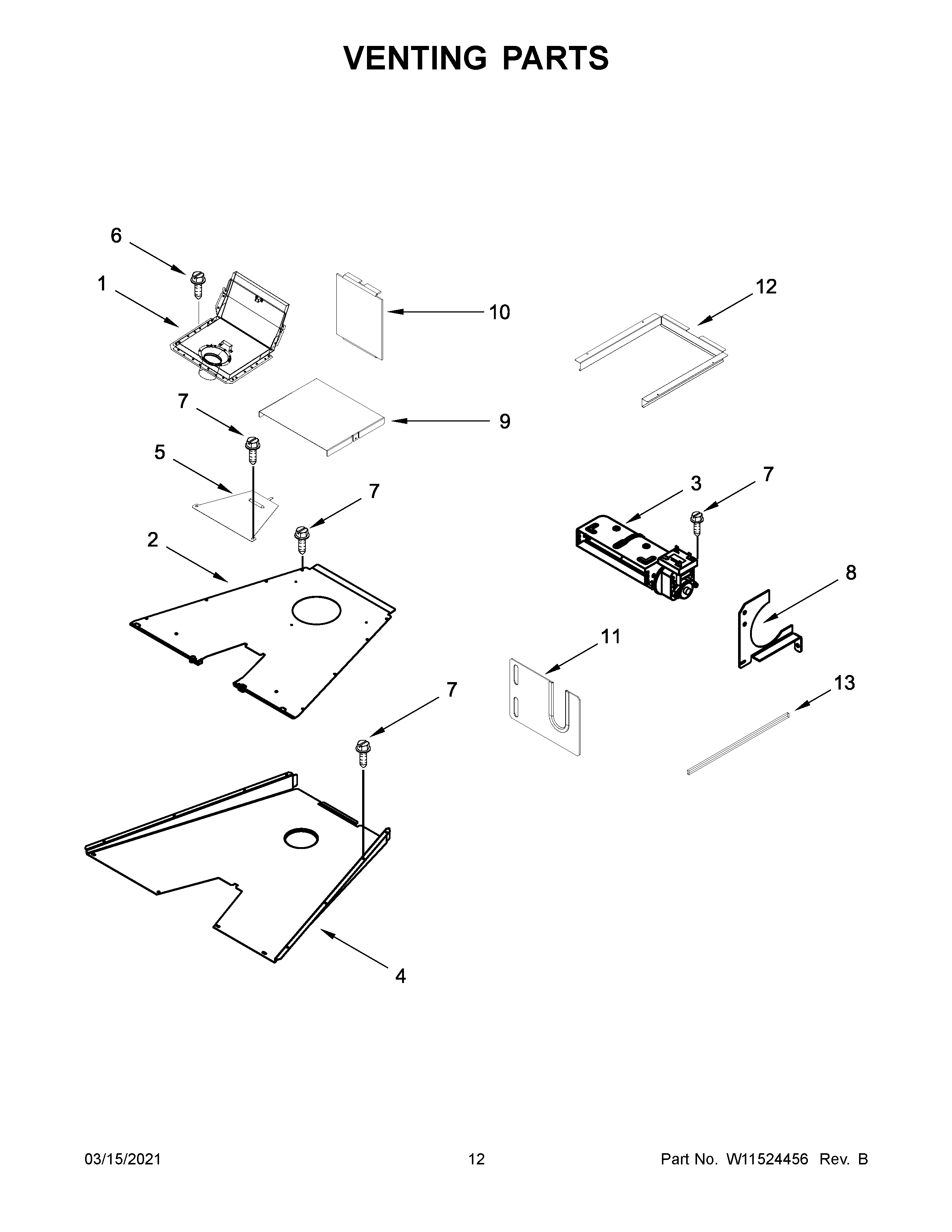

JGRP548HM01 07 – VENTING PARTS

Products

PositionProduct
1AVENT, CHIMNEY BOX (18 IN)
1W10340579 Whirlpool Exhaust Vent
2AVENT, COOLING TOP (18 IN)
2VENT, COOLING TOP (30 IN)
3W11248652 Whirlpool Blower
4AVENT, COOLING BOTTOM (18 IN)
4VENT, COOLING BOTTOM (30 IN)
5PLATE, COOLING LATCH
6WP3400805 Whirlpool Screw Assembly
7SCREW
8BRACKET, BLOWER MOUNT
9RETAINER, INSULATION
10INSULATION, CHIMNEY
11COVER, CHANNEL
12DUCT, PRIMARY AIR (30 IN)
12ADUCT, PRIMARY AIR (18 IN)
13W11175143 Whirlpool Gasket
