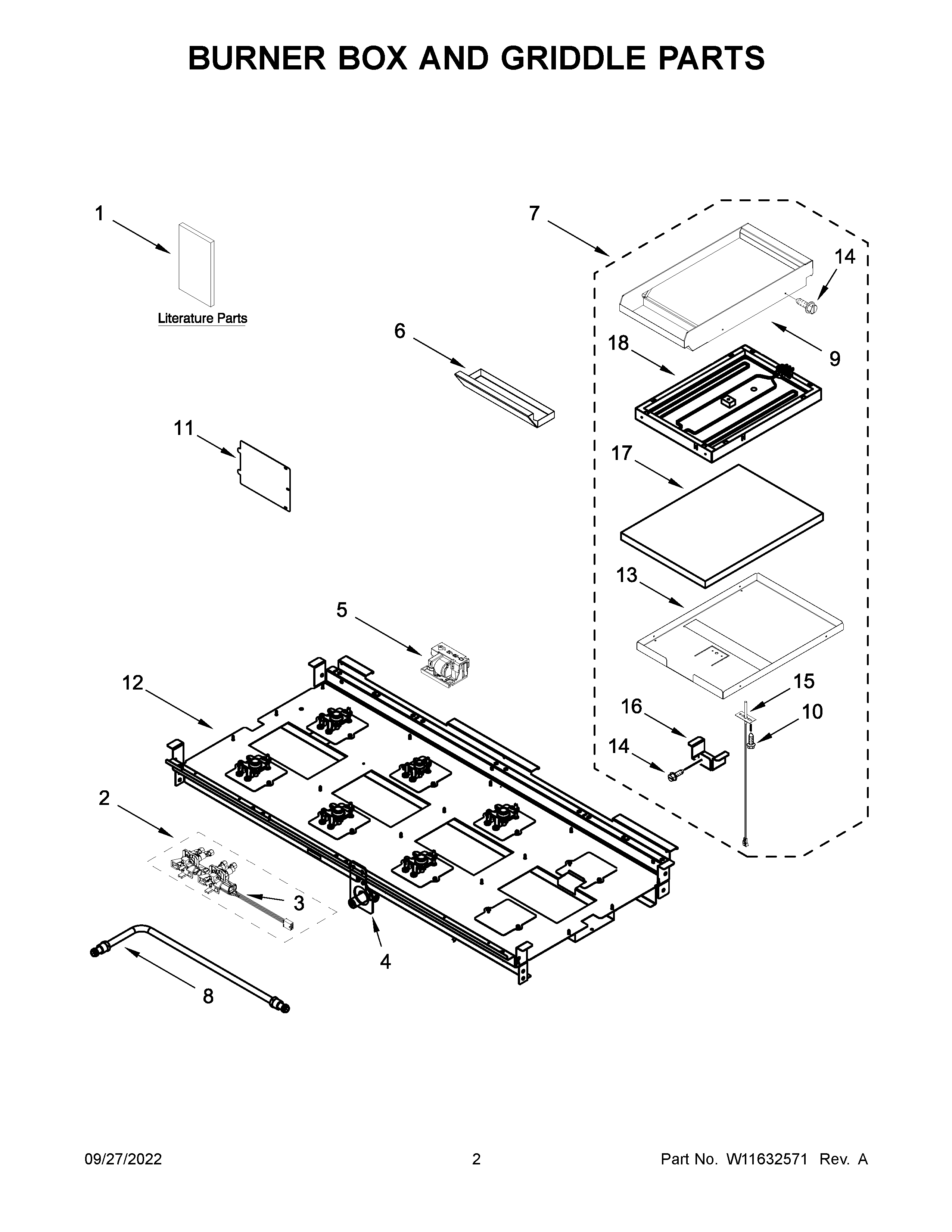

JGRP548HM05 02 – BURNER BOX AND GRIDDLE PARTS

Products

Position	Product
NI	W11446236 Whirlpool Wire Harness
NI	W10780278 Whirlpool Wire Harness
NI	W11317787 Whirlpool Wire Harness
NI	W11317791 Whirlpool Wire Harness
NI	HARNESS, MAIN (48 IN)
NI	W11317786 Whirlpool Wire Harness
NI	W11317788 Whirlpool Wire Harness
NI	W10624584 Whirlpool Power Cord
NI	SCREW, ANTI-TIP KIT
NI	CABINET (NOT A SERVICEABLE PART)
NI	4450800 Whirlpool Oven Screw
NI	W11544575 Whirlpool Anti-Tip Bracket
NI	16515 Whirlpool Clip
NI	W11428599 Whirlpool Conversion Kit
NI	W11446239 Whirlpool Wire Harness
1	USE AND CARE GUIDE
1A	INSTALLATION INSTRUCTIONS
1D	WIRING DIAGRAM (OVEN)
1F	SHEET, TECH
1C	GUIDE, QUICK START
1E	WIRING DIAGRAM (COOKTOP)
1B	GUIDE, INTERNET CONNECTIVITY
2B	W11320025 Whirlpool Manifold
2A	W11320019 Whirlpool Manifold
2	W11320017 Whirlpool Manifold
3	W11320016 Whirlpool Wire Harness
4	W11320153 Whirlpool Mounting Bracket
5	W11319687 Whirlpool Spark Module
6	W10276497 Whirlpool Drip Tray
7	W11602621 Whirlpool Module
8A	TUBE, MANIFOLD SUPPLY (LEFT CENTER)
8	W11320029 Whirlpool Gas Tubing
8B	TUBE, MANIFOLD SUPPLY (RIGHT CENTER)
9	W11602622 Whirlpool Griddle Assembly
10	W10491985 Whirlpool Screw
11	W10115843 Whirlpool Access Cover
13	TRAY, GRIDDLE INSULATION
14	W10162096 Whirlpool Screw
15	W11319618 Whirlpool Sensor
16	BRACKET, GRIDDLE-RTD
17	INSULATION, GRIDDLE
18	W11319602 Whirlpool Grille Element
