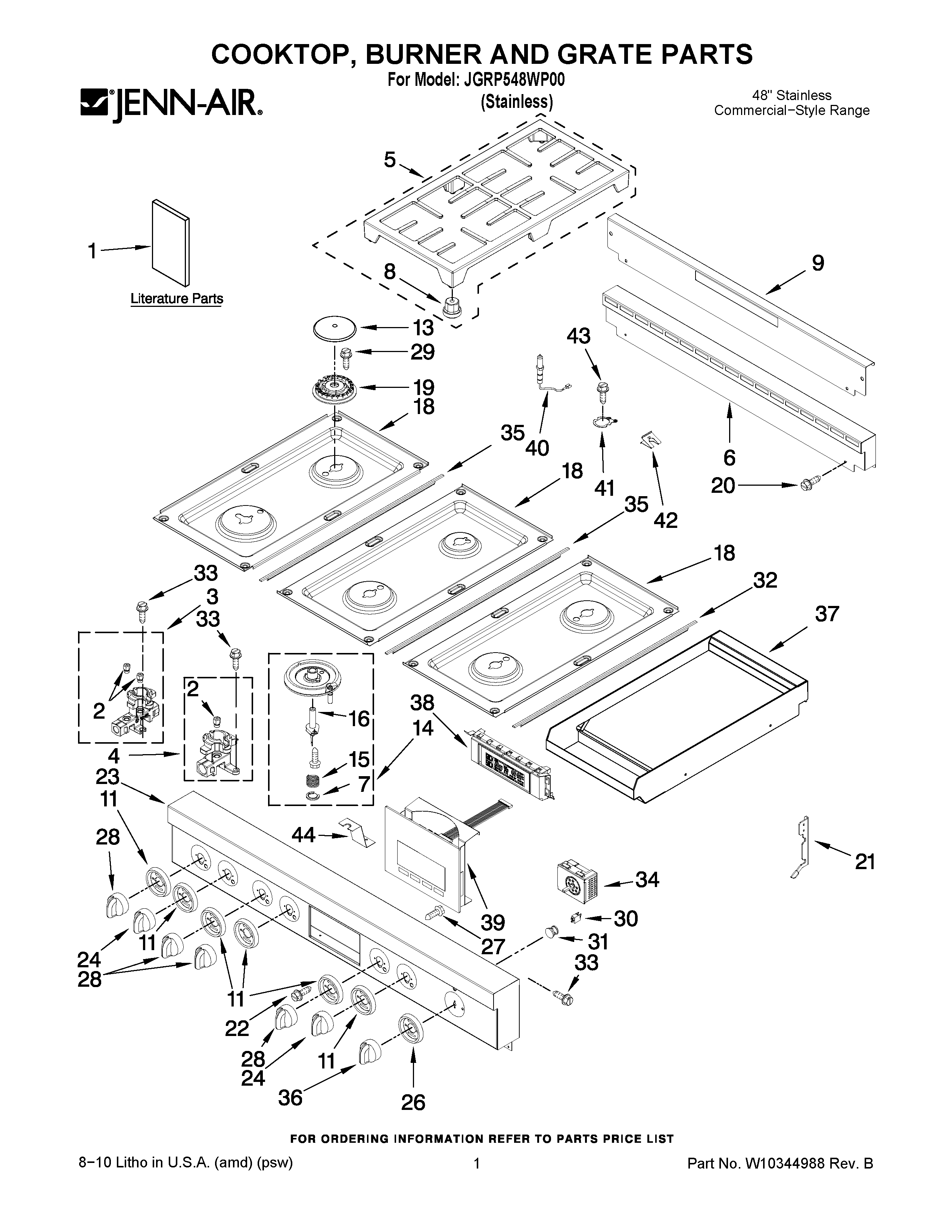

JGRP548WP00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1MAY W10322719
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY W10323237
1MAY W10323236
1MAY W10322721
2ORIFICE (LR & RF)
2ORIFICE (L)
2ORIFICE (CR)
2ORIFICE (LF)
3ORIFICE HOLDER (LF)
4ORIFICE HOLDER (LR & RF)
4ORIFICE HOLDER (RR)
5MAY W10276551
6MAY W10323251
7CLIP, ELECTRODE
8PAD, GRATE
9MAY W10323252
11MAY W10276494
13CAP, BURNER (RR)
13CAP, BURNER (LF)
13CAP, BURNER (LR & RF)
14BASE, BURNER (LF)
14BASE, BURNER (LR & RF)
15SPRING, ELECTRODE (LF, LR & RF)
16ELECTRODE (LF)
16ELECTRODE (LR & RF)
16ELECTRODE (CR)
18MAY W10189098
18MAY W10189104
18COOKTOP (CENTER)
19BURNER HEAD (RR)
19BURNER HEAD (LR & RF)
19BURNER HEAD (LF)
20SCREW (8BX3/8-NI)
21BRACKET,CONSOLE (LEFT)
21BRACKET,CONSOLE (RIGHT)
22MAY 7101P500-60
23MAY W10295787
24KNOB, CONTROL LF
26MAY W10145453
27MAY 8286921
28KNOB, CONTROL (LR, RF) LR, RF
29SCREW
30LIGHT, INDICATOR HOUSING
31MAY W10294500
32L-STRIP
33MAY 7101P426- 60
34MAY W10116113
35TRIM, T-STRIP
36MAY W10145566
37MAY W10276498
38ASSEMBLY, POWER SUPPLY
39MAY W10335684
40ELECTRODE, WIRE
41MAY 8286930
42SPRING, ELECTRODE (RR)
43MAY 3196160
44MAY 3801F946-51
