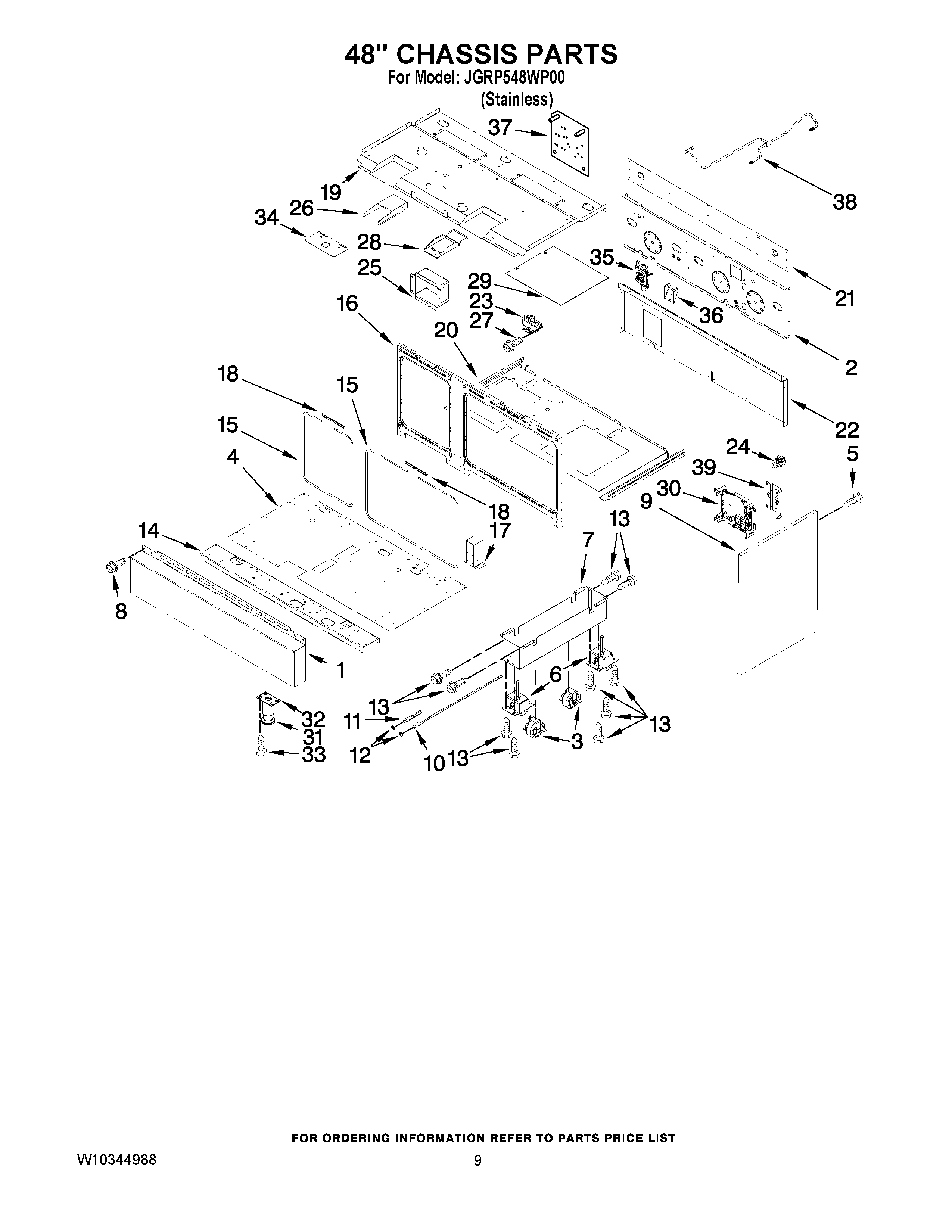

JGRP548WP00 05 – 48“ CHASSIS PARTS
Written by
in
JGRP548WP00 05 – 48“ CHASSIS PARTS
Products
Position
Product
1
MAY W10145767
2
MAY W10145354
3
MAY W10138054
4
MAY W10145378
6
FOOT
7
BASE, LEVELING
8
Screw
9
MAY W10250467
9
MAY W10250466
10
MAY W10115869
11
MAY W10115793
12
RING
13
MAY W10292297
14
MAY W10145375
15
MAY W10116039
15
MAY W10160890
16
MAY W10160895
17
MAY W10115819
18
MAY W10157511
18
MAY W10216520
19
MAY W10145372
20
MAY W10145369
21
MAY W10321816
22
MAY W10145390
23
MAY W10145680
24
MAY W10311268
25
MAY W10308051
26
DRAWER
27
MAY 7101P426- 60
28
SUPPORT
29
SEAL
30
MAY W10335645
31
MAY 9759117
32
PLATE, MOUNTING FOOT
33
MAY 3400518
34
MAY W10115855
35
MAY W10145584
36
MAY W10308042
37
MAY 9758080
38
MAY W10145704
39
MAY W10145362
←
