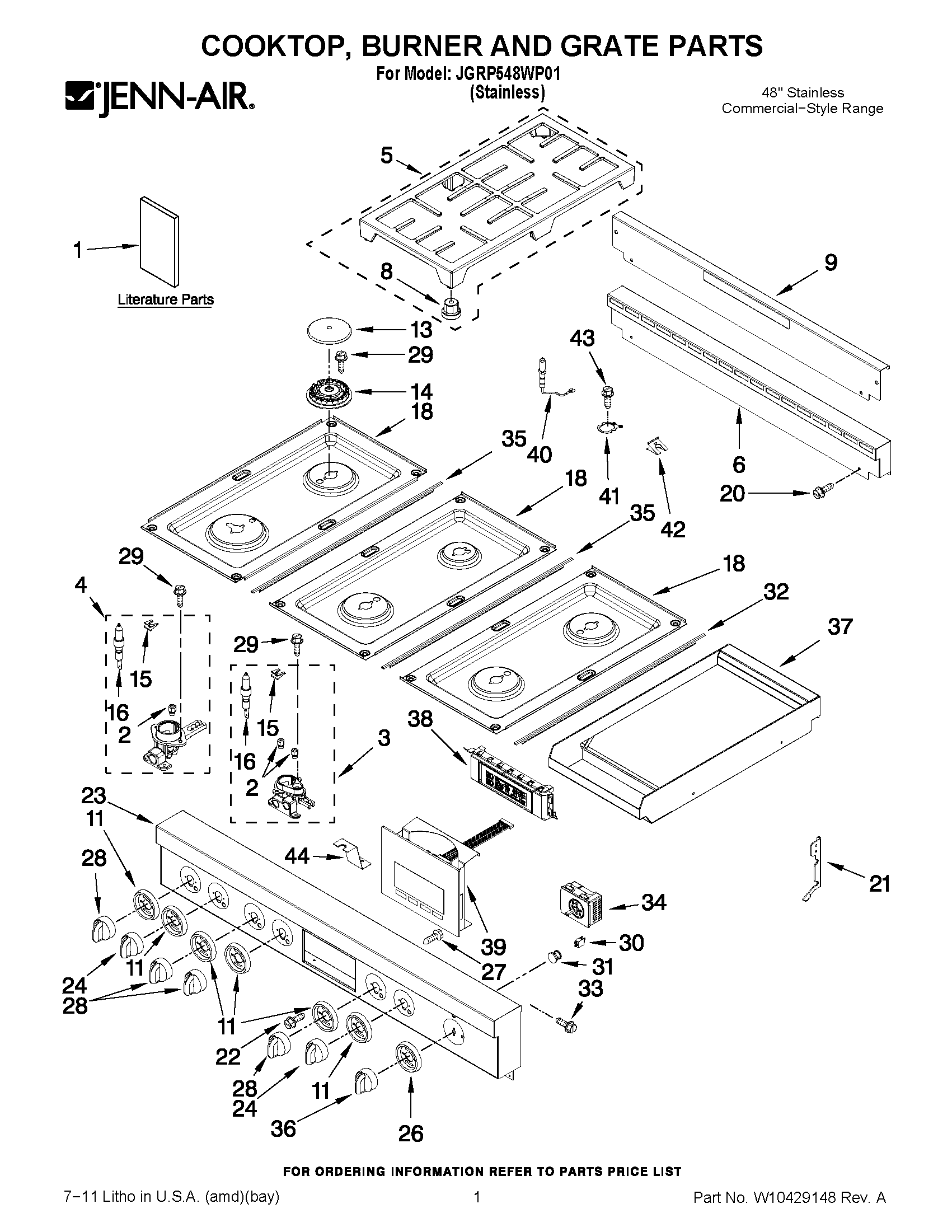

JGRP548WP01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	TIPS, SAFE COOKING (ENGLISH)
1	TIPS, SAFE COOKING (FRENCH)
1	MAY W10403311
1	MAY W10403310
1	MAY W10399389
1	MAY W10394575
2	ORIFICE (15K) (LEFT REAR, CENTER FRONT, RIGHT REAR)
2	ORIFICE (LF-HIGH)
2	ORIFICE (LF-LOW)
2	ORIFICE (CR)
3	ORIFICE HOLDER (DUAL-LF)
4	MAY W10364556
4	ORIFICE HOLDER (RR)
5	MAY W10276551
6	MAY W10323251
8	PAD, GRATE
9	MAY W10323252
13	MAY W10256032
13	MAY W10364463
13	MAY W10256034
14	BURNER, HEAD (LF)
14	BURNER, HEAD (LR,RF)
14	BURNER HEAD (RR)
15	MAY W10256046
16	ELECTRODE (LR, RF & RR)
18	COOKTOP (BLACK (CENTER))
18	MAY W10352963
18	MAY W10352969
20	SCREW (8BX3/8-NI)
21	BRACKET,CONSOLE (RIGHT)
21	BRACKET,CONSOLE (LEFT)
22	MAY 7101P500-60
23	MAY W10295787
24	KNOB, CONTROL LF
26	MAY W10145453
27	MAY 8286921
28	KNOB, CONTROL (LR, RF) LR, RF
29	SCREW (ALL BUT CENTER REAR)
30	LIGHT, INDICATOR HOUSING
31	MAY W10294500
32	L-STRIP
33	MAY 7101P426- 60
34	MAY W10116113
35	TRIM, T-STRIP
36	MAY W10145566
37	MAY W10276498
38	ASSEMBLY, POWER SUPPLY
39	MAY W10344182
40	ELECTRODE, WIRE
41	MAY 8286930
42	SPRING, ELECTRODE (RR)
43	MAY 3196160
44	MAY 3801F946-51
