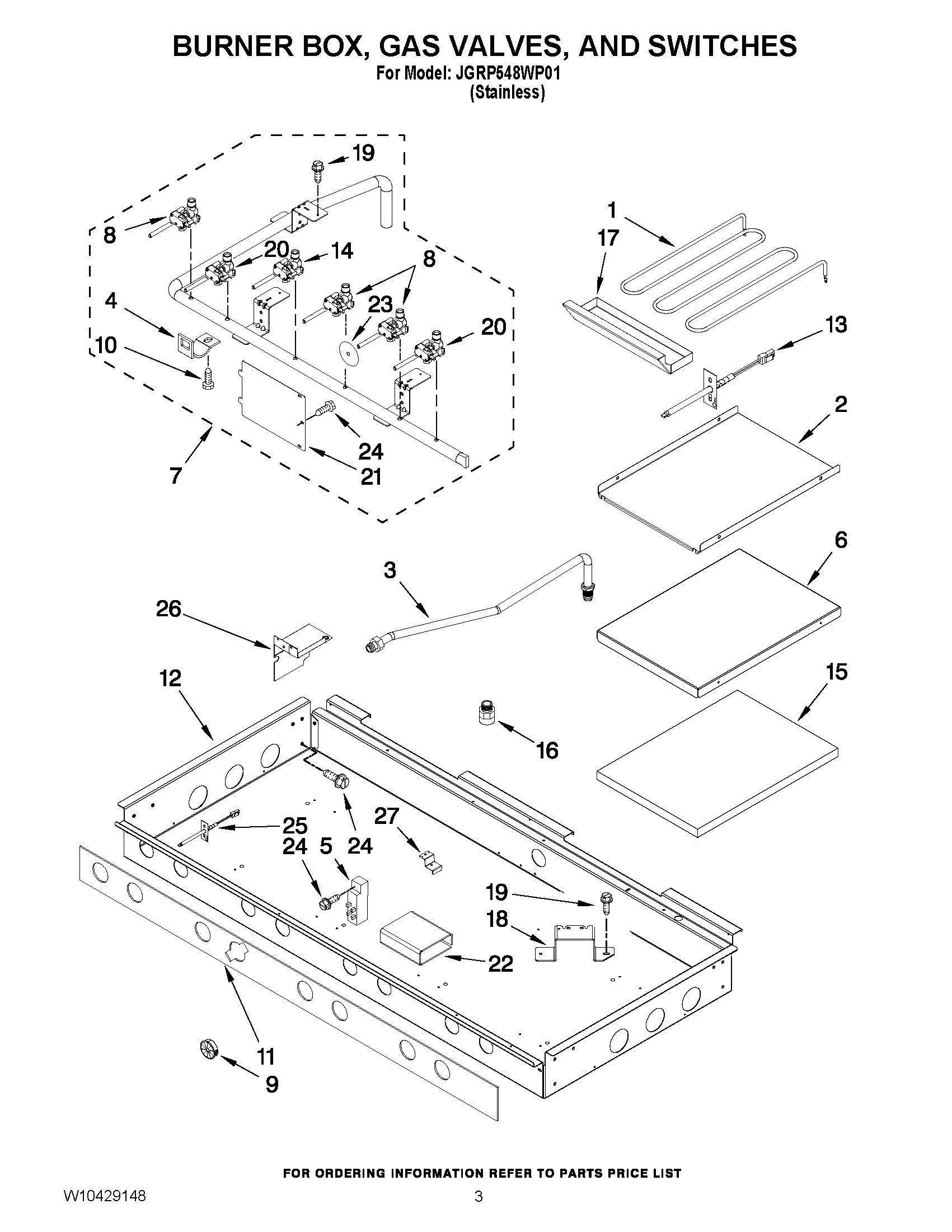

JGRP548WP01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

JGRP548WP01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

JGRP548WP01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NITUBING, GAS (RF (HIGH))
NITUBING, GAS (LR)
NITUBING, GAS (LF (LOW))
NITUBING, GAS (LF (HIGH))
NITUBING, GAS (CF)
NITUBING, GAS (RR)
NITUBING, GAS (RF (LOW))
NIMAY W10145492
1ELEMENT, GRIDDLE
2MAY W10145620
3MAY W10348600
4MAY W10189107
5MAY 7431P038-60
6MAY W10246074
7MAY W10402608
8VALVE, SINGLE LR,RF
9MAY W10189097
10SCREW, VALVE MTG
11MAY W10160202
12MAY W10371521
13MAY W10319835
14VALVE, SIMMER
15MAY W10145621
16ADAPTER, FEMALE
17DRIP, TRAY GRIDDLE
18BRACKET, BURNER
19MAY 4450800
20VALVE, GAS (LF)
21MAY W10115843
22INSULATION, SPARK MODULE
23MAY W10423373
24MAY 7101P426- 60
25MAY W10131825
26MAY W10367054
27MAY W10308039
