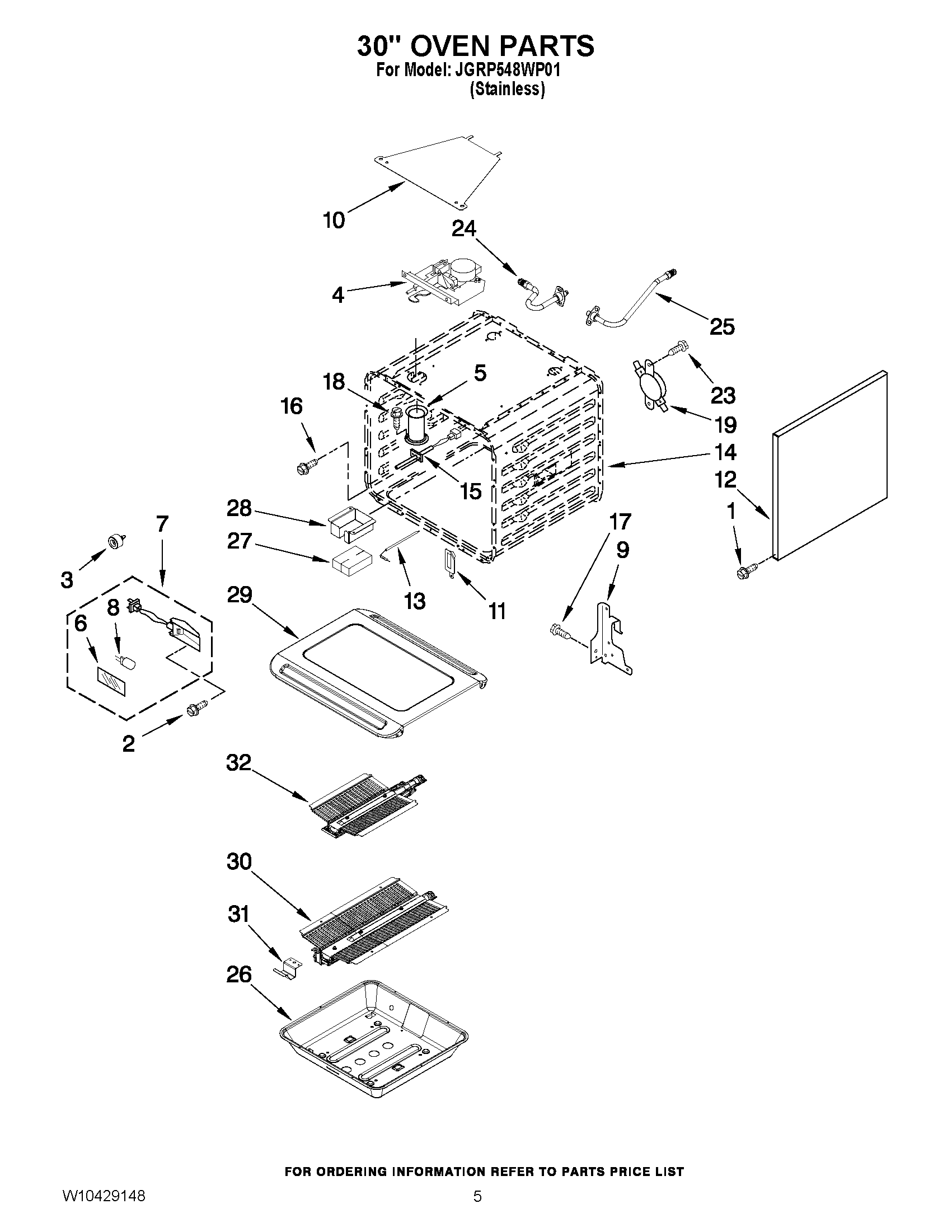

JGRP548WP01 03 – 30“ OVEN PARTS

JGRP548WP01 03 – 30“ OVEN PARTS

Written by

in

JGRP548WP01 03 – 30“ OVEN PARTS

Products

Position	Product
NI	MAY W10299354
NI	MAY W10299350
NI	INSULATION, WRAP, 30“
1	MAY W10292297
2	MAY 4449748
3	ASSEMBLY, BUMPER
4	MAY W10195935
5	MAY W10145743
6	LENS
7	OVEN LIGHT ASSY
8	BULB, OVEN
9	MAY 4455605
9	MAY 4455606
10	MAY W10160858
11	MAY W10115876
11	MAY W10115877
12	SIDE, CHASSIS (LEFT)
12	SIDE, CHASSIS (RIGHT)
13	MAY W10332290
14	LINER (NOT A SERVICEABLE PART)
15	MAY W10131825
16	MAY 4449154
17	MAY 4449040
18	Screw
19	THERMOSTAT
23	MAY 7101P426- 60
24	MAY W10145715
25	MAY W10145716
26	SUPPORT, BAKE PAN
27	MAY W10311009
28	MAY W10310985
29	BOTTOM, OVEN GAS
30	MAY W10311335
31	MAY W10308040
32	MAY W10311409
