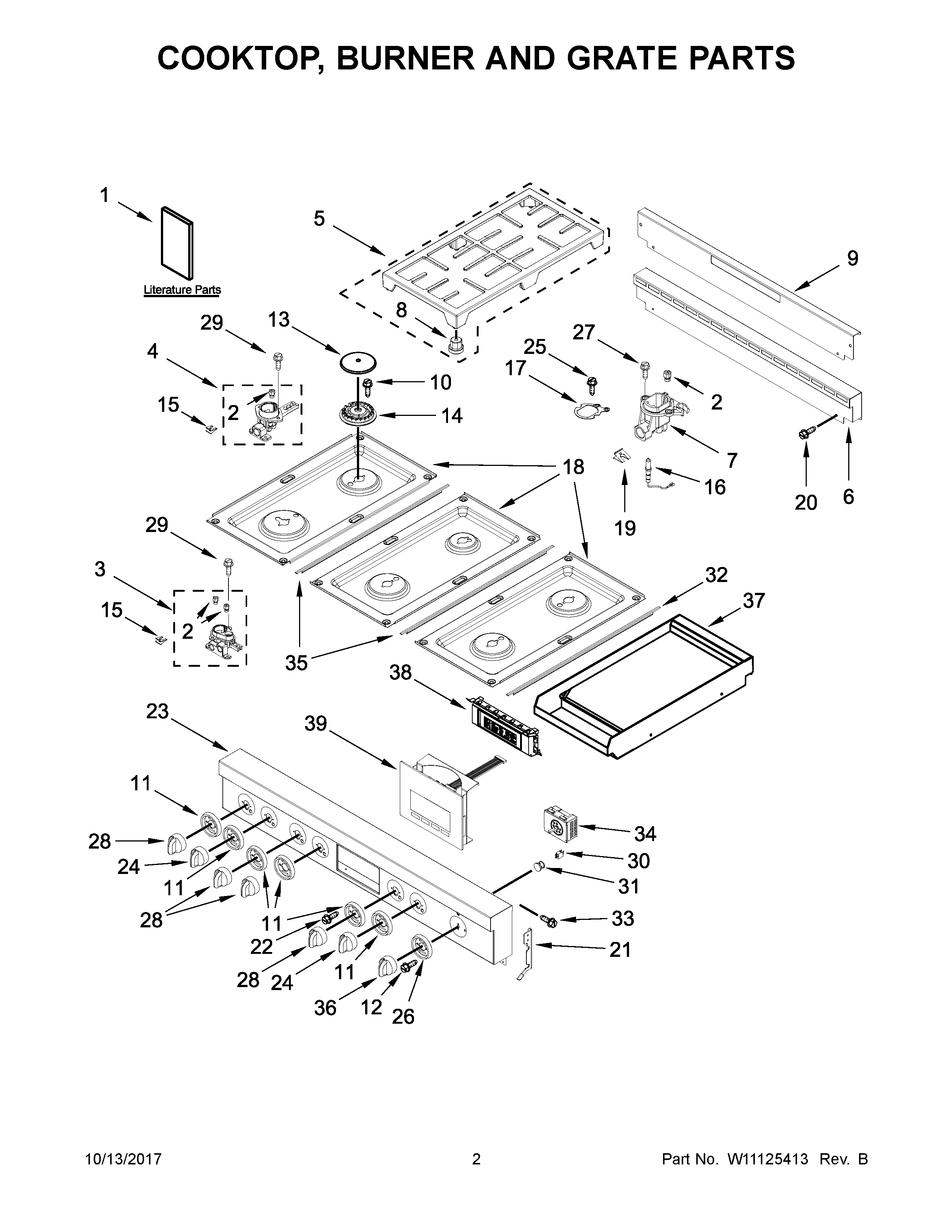

JGRP548WP02 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	MAY W10763503
NI	MAY W10116169
NI	CORD, POWER
NI	MAY W10399611
NI	MAY 4450800
NI	HARNESS, DOOR LOCK
NI	MAY W10344051
NI	MAY W10830796
NI	MAY W10116146
NI	CLIP, HARNESS
NI	MAY W10830797
1	INSTRUCTIONS, INSTALLATION
1A	GUIDE, USE & CARE
1B	GUIDE, LP CONVERSION
1D	MAY W10403311
1C	MAY W10403310
2	ORIFICE (20K) (LEFT FRONT & RIGHT FRONT, HIGH)
2B	ORIFICE (15K) (LEFT REAR, CENTER FRONT, RIGHT REAR)
2C	ORIFICE (CR)
2A	ORIFICE (LF-LOW)
3	ASSEMBLY, ORIFICE HOLDER (LEFT FRONT & RIGHT FRONT)
4	ASSEMBLY, ORIFICE HOLDER (LEFT REAR, CENTER FRONT, RIGHT REAR)
5	MAY W10276551
6	MAY W10323251
7	MAY W10883622
8	BUMPER, GRATE
9	MAY W10323252
10	SCREW
11	MAY W10276494
12	SCREW
13	MAY W10256034
13B	MAY W10364463
13A	MAY W10256032
14A	BURNER, HEAD (LR,RF)
14	MAY W10879806
14B	BURNER HEAD (RR)
15	SPRING, ELECTRODE
16	ELECTRODE, BURNER
17	MAY 8286930
18B	MAY W10352963
18A	COOKTOP (BLACK (CENTER))
18	MAY W10352969
19	SPRING, ELECTRODE (RR)
20	SCREW (8BX3/8-NI)
21	BRACKET,CONSOLE (LEFT)
21A	BRACKET,CONSOLE (RIGHT)
22	MAY 7101P500-60
23	MAY W10789955
24	KNOB, CONTROL LF
25	MAY 3196160
26	MAY W10145453
27	MAY 8286921
28	KNOB, CONTROL (LR, RF) LR, RF
29	SCREW (ALL BUT CENTER REAR)
30	LIGHT, INDICATOR HOUSING
31	MAY W10294500
32	L-STRIP
33	MAY 7101P426- 60
34	MAY W10116113
35	TRIM, T-STRIP
36	MAY W10145566
37	MODULE, GRIDDLE
38	ASSEMBLY, POWER SUPPLY
39	MAY W10464534
