JGRP548WP02 06 – 18″ OVEN PARTS – Aparts

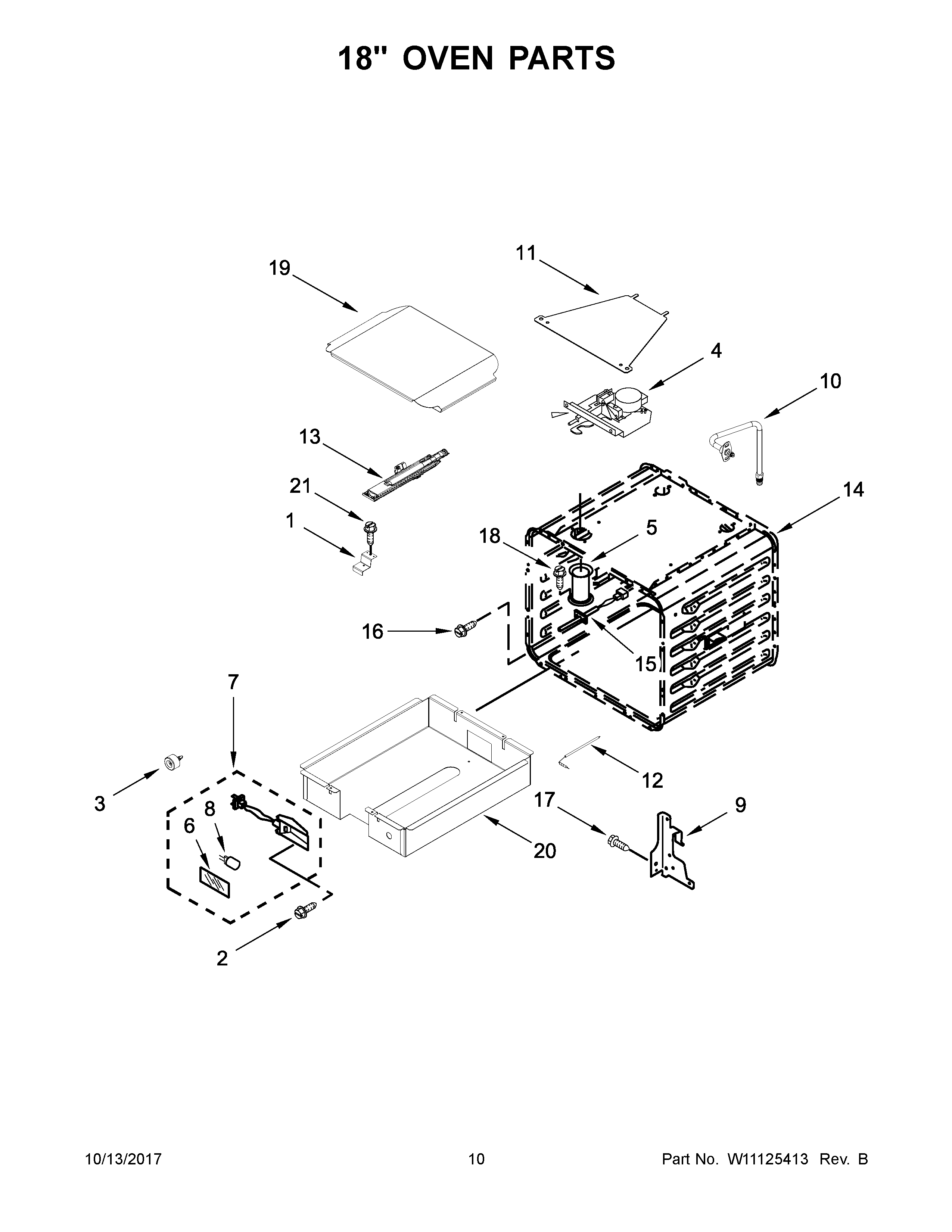

JGRP548WP02 06 – 18″ OVEN PARTS

Products

Position	Product
NI	MAY W10299353
NI	MAY W10282820
NI	MAY W10299355
NI	MAY 3400968
1	MAY W10308041
2	MAY 4449748
3	ASSEMBLY, BUMPER
4	LATCH, MOTORIZED
5	MAY W10145743
6	LENS
7	OVEN LIGHT ASSY
8	BULB, OVEN
9A	MAY 4455606
9	MAY 4455605
10	MAY W10145706
11	MAY W10160858
12	MAY W10878506
13	BURNER, BAKE W/O SPREADER
14	LINER (NOT A SERVICEABLE PART)
15	MAY W10131825
16	MAY 4449154
17	MAY 4449743
18	Screw
19	MAY W10246100
20	MAY W10145651
21	MAY 7101P426- 60
