JGRP548WP02 09 – 18″ OVEN DOOR PARTS
Written by
in

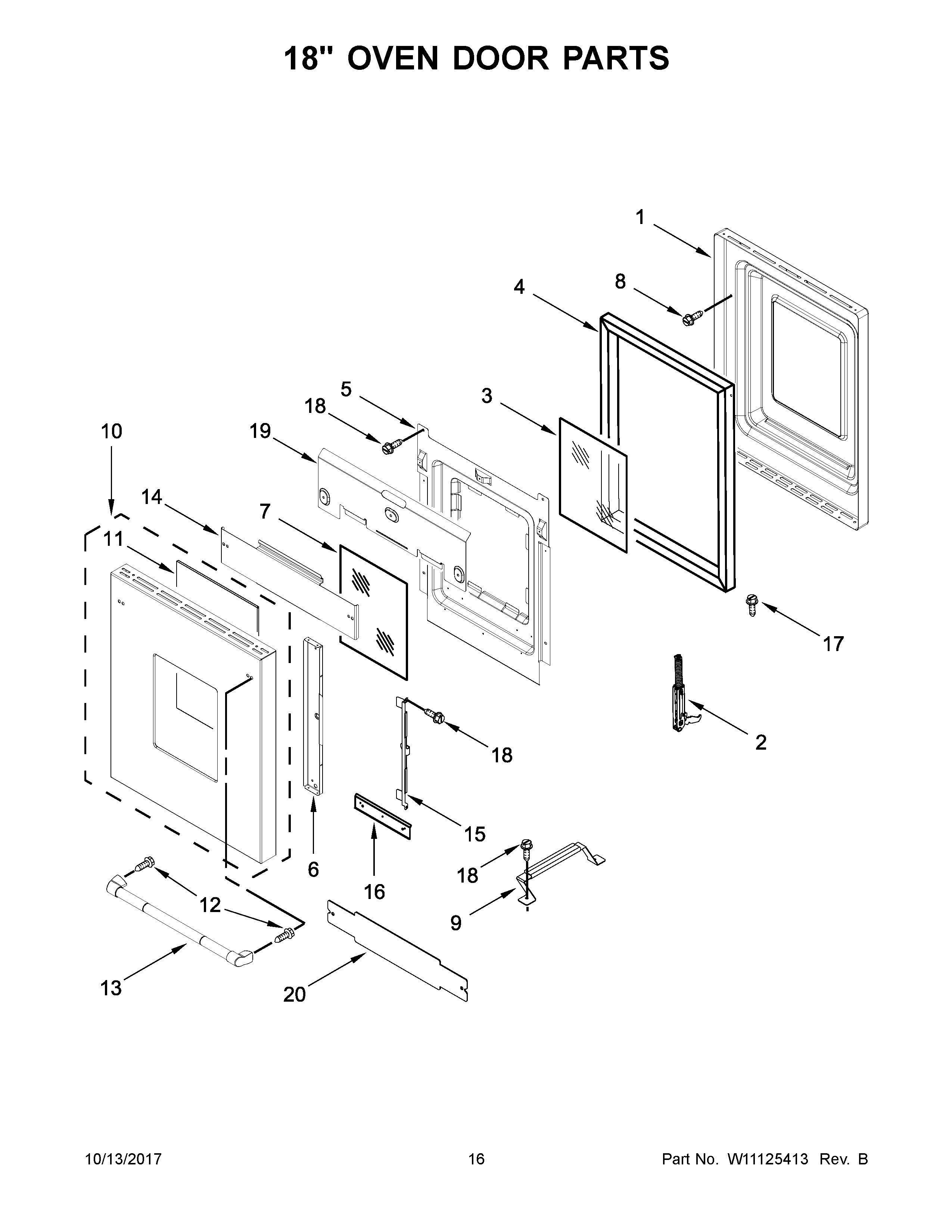

JGRP548WP02 09 – 18″ OVEN DOOR PARTS
Products
Position
Product
1
MAY W10188323
2A
HINGE, DOOR (RIGHT)
2
HINGE, DOOR (LEFT)
3
MAY W10115693
4
MAY W10115737
5
MAY W10188325
6
BRACKET, SIDE
7
MAY W10115695
8
MAY W10292297
9
MAY 9759230
10
MAY W10145758
11
MAY W10145849
12
SCREW, HANDLE
13
MAY W10145768
14
MAY W10145762
15
MAY 9759229
16
MAY W10115708
17
MAY 7101P426- 60
18
Screw
19
MAY W10115700
20
MAY W10335955
←
