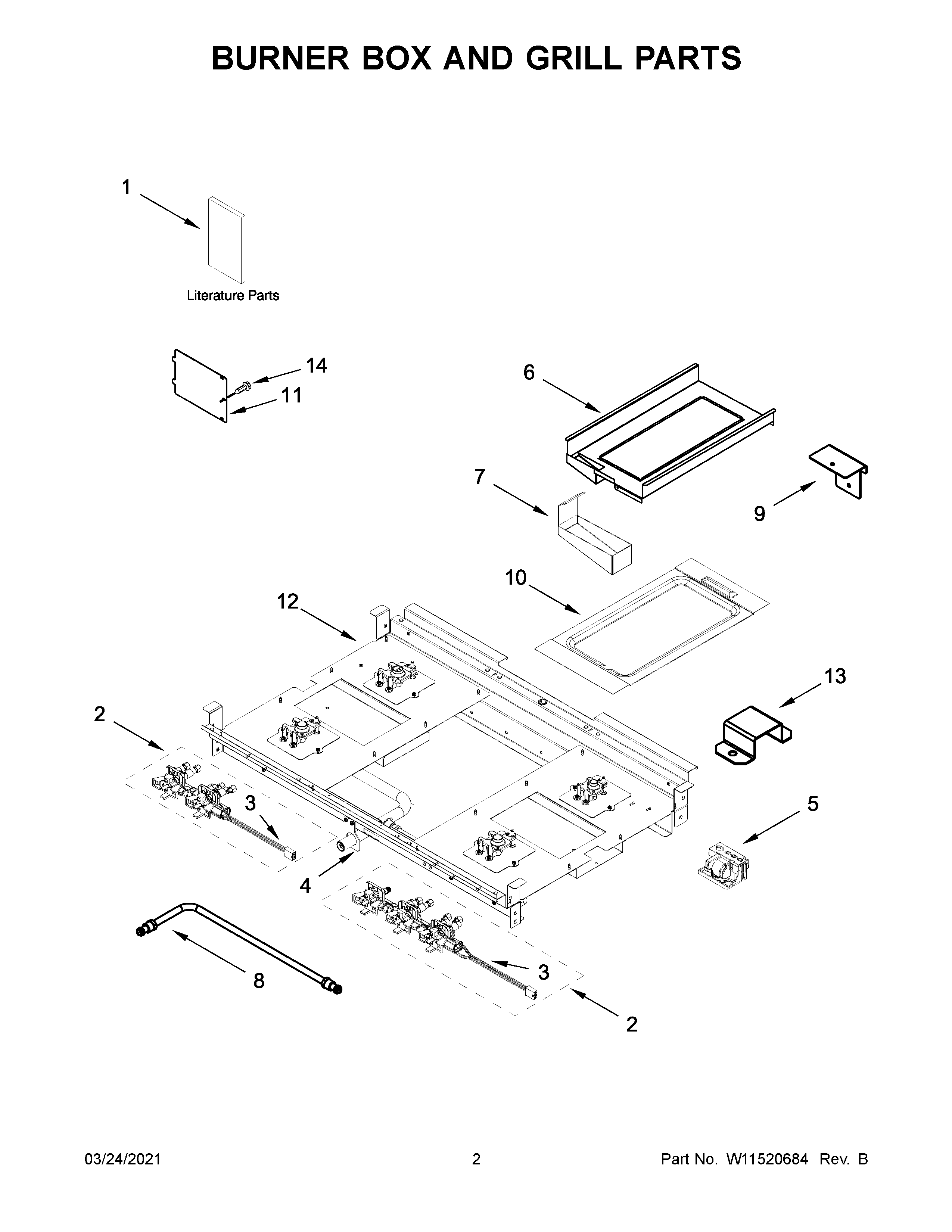

JGRP636HL01 02 – BURNER BOX AND GRILL PARTS

JGRP636HL01 02 – BURNER BOX AND GRILL PARTS

Written by

in

JGRP636HL01 02 – BURNER BOX AND GRILL PARTS

Products

PositionProduct
NIHARNESS, COOKTOP
NIW11200310 Whirlpool Wire Harness
NIW11317791 Whirlpool Wire Harness
NIW11200325 Whirlpool Wire Harness
NIW10780278 Whirlpool Wire Harness
NIW10624584 Whirlpool Power Cord
NISCREW, ANTI-TIP KIT
NIW11544575 Whirlpool Anti-Tip Bracket
NICABINET (NOT A SERVICEABLE PART)
NI4450800 Whirlpool Oven Screw
NIW11428599 Whirlpool Conversion Kit
NIW11446236 Whirlpool Wire Harness
NIW11446239 Whirlpool Wire Harness
1CDIAGRAM, WIRING (OVEN)
1GUIDE, USE AND CARE
1BGUIDE, INTERNET CONNECTIVITY
1DSHEET, TECH
1AINSTRUCTIONS, INSTALLATION
1EGUIDE, QUICK START
2AASSEMBLY, VALVE MANIFOLD (GRILL, RIGHT FRONT, RIGHT REAR)
2W11333175 Whirlpool Manifold Assembly
3W11320016 Whirlpool Wire Harness
3AW11328263 Whirlpool Wire Harness
4W11320153 Whirlpool Mounting Bracket
5W11319687 Whirlpool Spark Module
6W11328011 Whirlpool Drip Tray
7W11328012 Whirlpool Drip Tray
8TUBE, MANIFOLD SUPPLY (LEFT)
8ATUBE, MANIFOLD SUPPLY (RIGHT)
9BRACKET, GRILL GREASE CAPTURE
10DEFLECTOR, GRILL HEAT
11W10115843 Whirlpool Access Cover
13BRACKET, GRILL ORIFICE HOLDER
14SCREW
