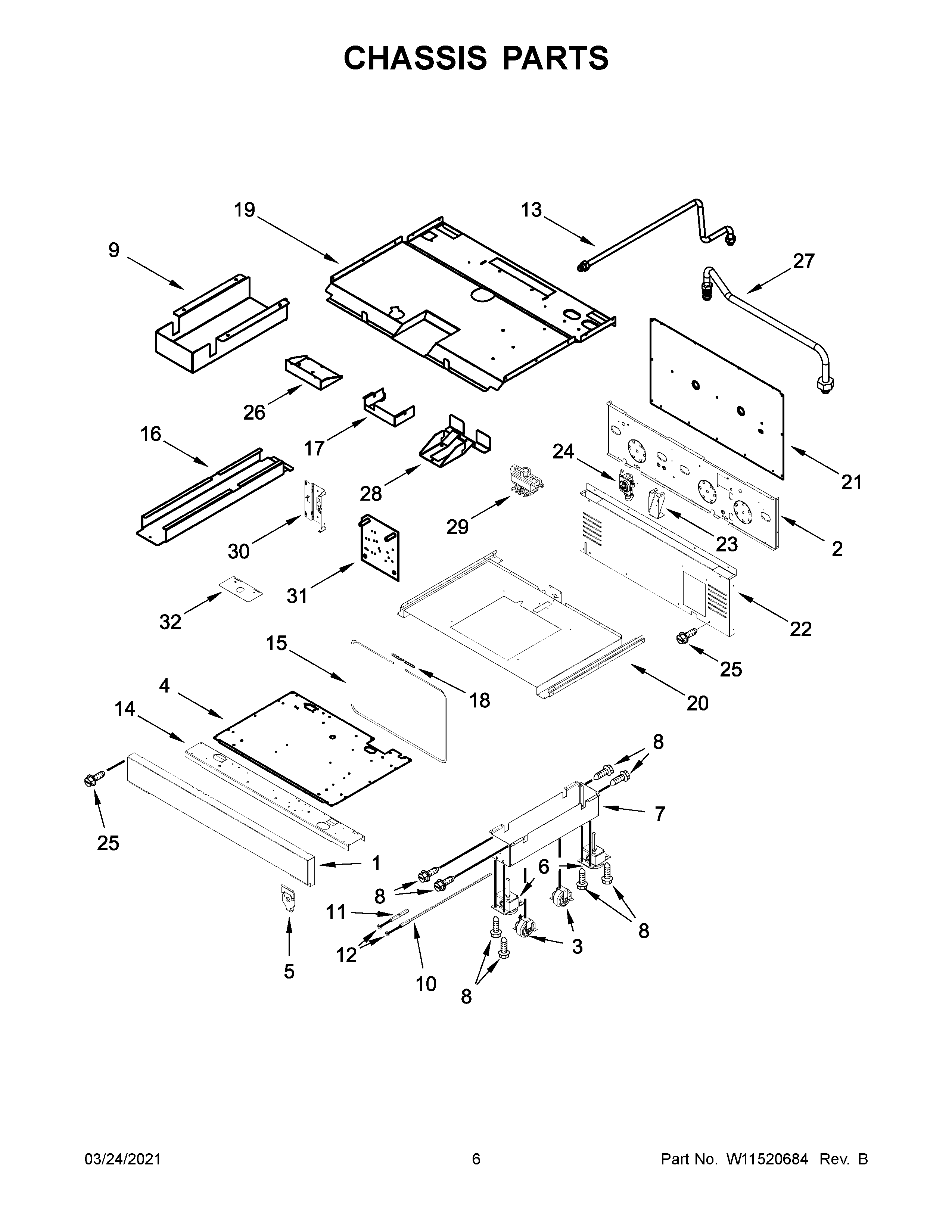

JGRP636HL01 04 – CHASSIS PARTS

Products

Position	Product
1	W11333399 Whirlpool Refrigerator Cover Plate
2	BACK, CHASSIS
3	WPW10138054 Whirlpool Refrigerator Cabinet Roller
4	W11095572 Whirlpool Duct
5	W11318207 Whirlpool Clip Assembly
6	W10859931 Whirlpool Foot Level
7	W10908710 Whirlpool Mounting Bracket
8	WP4449743 Whirlpool Screw
9	CHANNEL, WIRE
10	W10115869 Whirlpool Shaft
11	W10115793 Whirlpool Shaft
12	489504 Whirlpool Oven Ring
13	W11364214 Whirlpool Gas Tubing
14	SUPPORT, CHANNEL
15	W11676901 Whirlpool Range Gasket
16	W11050145 Whirlpool HVAC Air Duct
17	CABINET, APPLIANCE MANAGER
18	W11362015 Whirlpool Retainer
19	TOP, CHASSIS
20	CHASSIS, BOTTOM
21	W11103333 Whirlpool Rear Cover
22	PANEL, BACK BOTTOM
23	W11320155 Whirlpool Mounting Bracket
24	W11193822 Whirlpool Regulator
25	SCREW
26	DRAWER, APPLIANCE MANAGER
27	W11356251 Whirlpool Gas Tubing Assembly
28	W11190223 Whirlpool Bracket Assembly
29	W11239228 Whirlpool Gas Valve
30	W10145362 Whirlpool Control Bracket
31	WPW10511278 Whirlpool Spark Module
32	W10115855 Whirlpool Support Bracket
