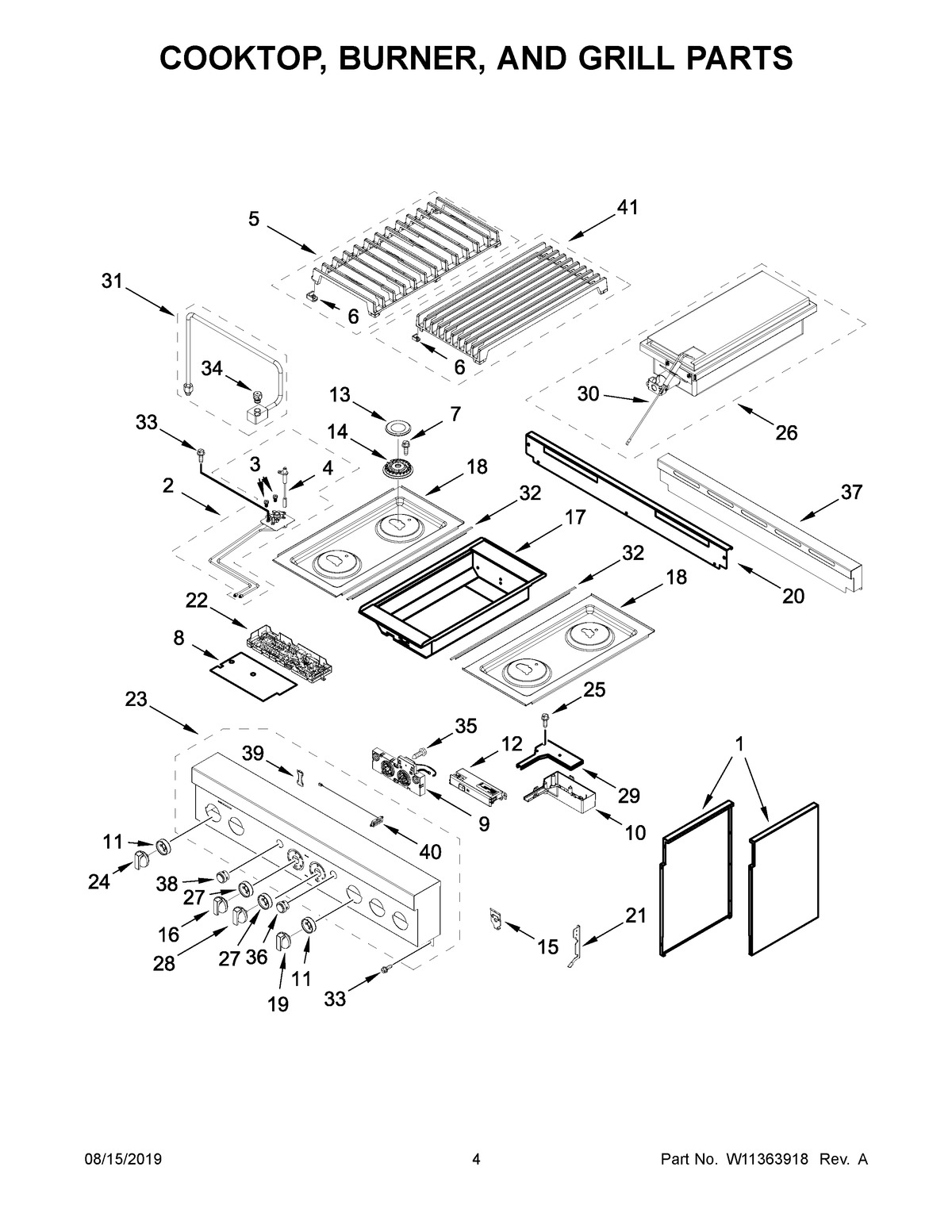

JGRP636HM00 03 – COOKTOP, BURNER, AND GRILL PARTS

Products

Position	Product
1	MAY W11106881
1A	MAY W11106880
2B	MAY W10892475
2C	MAY W10892730
2A	MAY W10892494
2	MAY W10892793
3A	ORIFICE, MAIN (15.4K) (LEFT REAR AND RIGHT FRONT)
3D	ORIFICE, SIMMER (2.0K) (RIGHT REAR)
3B	ORIFICE, MAIN (7.2K) (RIGHT REAR)
3	ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3C	ORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4	IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4A	IGNITER (RIGHT REAR)
5A	ASSEMBLY, GRATE (BLACK) (RIGHT)
5	ASSEMBLY, GRATE (BLACK) (LEFT)
6	BUMPER, GRATE
7	MAY W11323260
8	BARRIER, APPLIANCE MANAGER
9	MAY W11095713
10	COVER, WIFI OUTER
11	BEZEL, COOKTOP
12	ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
13	CAP, BURNER (BLACK (SET OF 4))
14	SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
14A	SPREADER, FLAME (LOW) (RIGHT REAR)
15	SPRING CLIP, RANGE
16	MAY W11317854
17	MAY W11174429
18	PANEL, COOKTOP (BLACK) (LEFT)
18A	PANEL, COOKTOP (BLACK) (RIGHT)
19	MAY W10894926
20	MAY W10323250
21A	BRACKET,CONSOLE (RIGHT)
21	BRACKET,CONSOLE (LEFT)
22	MAY W11100275
23	MAY W11253773
24	KNOB, BURNER (STAINLESS)
25	SCREW
26	MAY W11120976
27	BEZEL, OVEN (FOR 2 OVEN KNOBS) (STAINLESS)
28	KNOB, OVEN TEMPERATURE (STAINLESS)
29	COVER, WIFI INNER
30	MAY W11174598
31	MAY W11197931
32	L-STRIP
33	MAY 7101P426- 60
34	MAY W10892423
35	SCREW
36	BUTTON ASSEMBLY, OVEN START
37	MAY W11183086
38	BUTTON ASSEMBLY, OVEN LIGHT
39	ASSEMBLY, LIGHT PIPE
40	ANTENNA, WIFI
41	MAY W11172682
