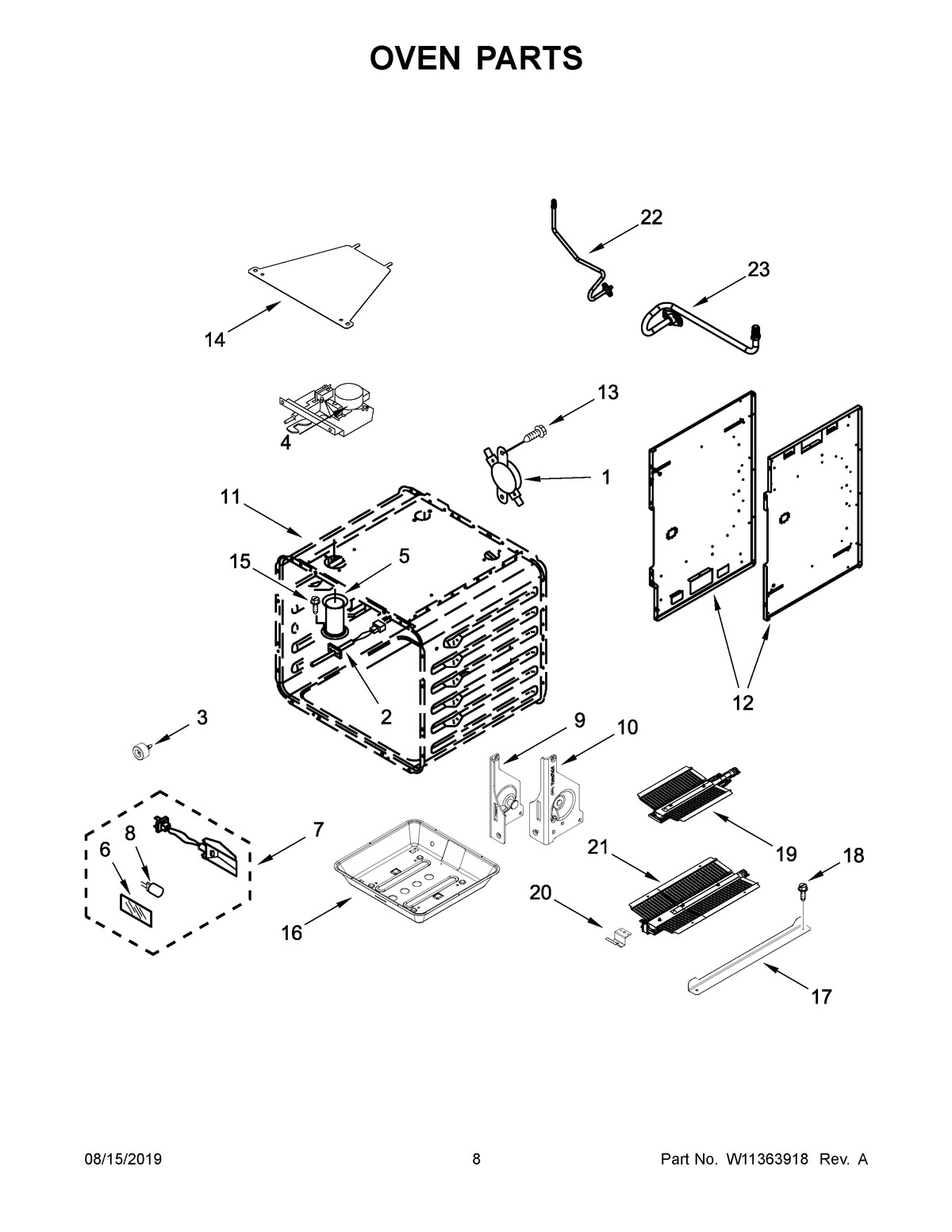

JGRP636HM00 05 – OVEN PARTS

JGRP636HM00 05 – OVEN PARTS

Written by

in

JGRP636HM00 05 – OVEN PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10299351
NI	MAY W10282811
NI	MAY 3400968
NI	MAY W10299356
1	THERMOSTAT
2	MAY W10622170
3	BUMPER & SCREW
4	LATCH, MOTORIZED
5	MAY W10145743
6	LENS
7	ASSEMBLY, OVEN LIGHT
8	BULB, OVEN
9	RECEIVER, HINGE (LEFT)
10	RECEIVER, HINGE (RIGHT)
12A	CHASSIS, SIDE (RIGHT)
12	CHASSIS, SIDE (LEFT)
13	MAY 7101P426- 60
14	MAY W10160858
15	Screw
16	SUPPORT, BAKE PAN
17	MAY W10317437
18	MAY 7101P434-60
19	BURNER, BAKE
20	MAY W10308040
21	MAY W10311335
22	MAY W11109238
23	MAY W11106980
