JGRP636HM01 06 – VENTING PARTS – Aparts

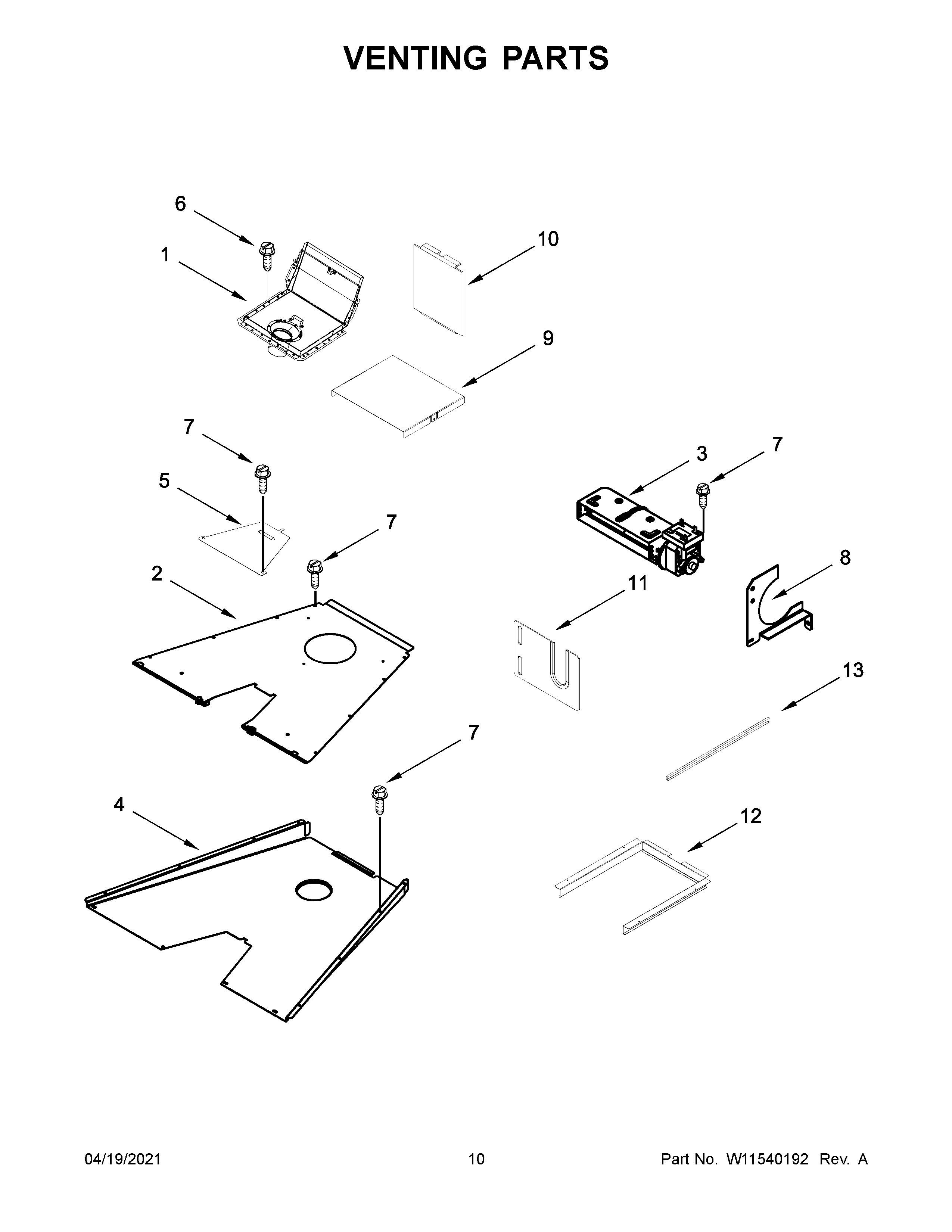

JGRP636HM01 06 – VENTING PARTS

Products

Position	Product
1	W10340579 Whirlpool Exhaust Vent
2	VENT, COOLING TOP (30 IN)
3	W11248652 Whirlpool Blower
4	VENT, COOLING BOTTOM (30 IN)
5	PLATE, COOLING LATCH
6	WP3400805 Whirlpool Screw Assembly
7	SCREW
8	BRACKET, BLOWER MOUNT
9	RETAINER, INSULATION
10	INSULATION, CHIMNEY
11	COVER, CHANNEL
12	DUCT, PRIMARY AIR (30 IN)
13	W11175143 Whirlpool Gasket
