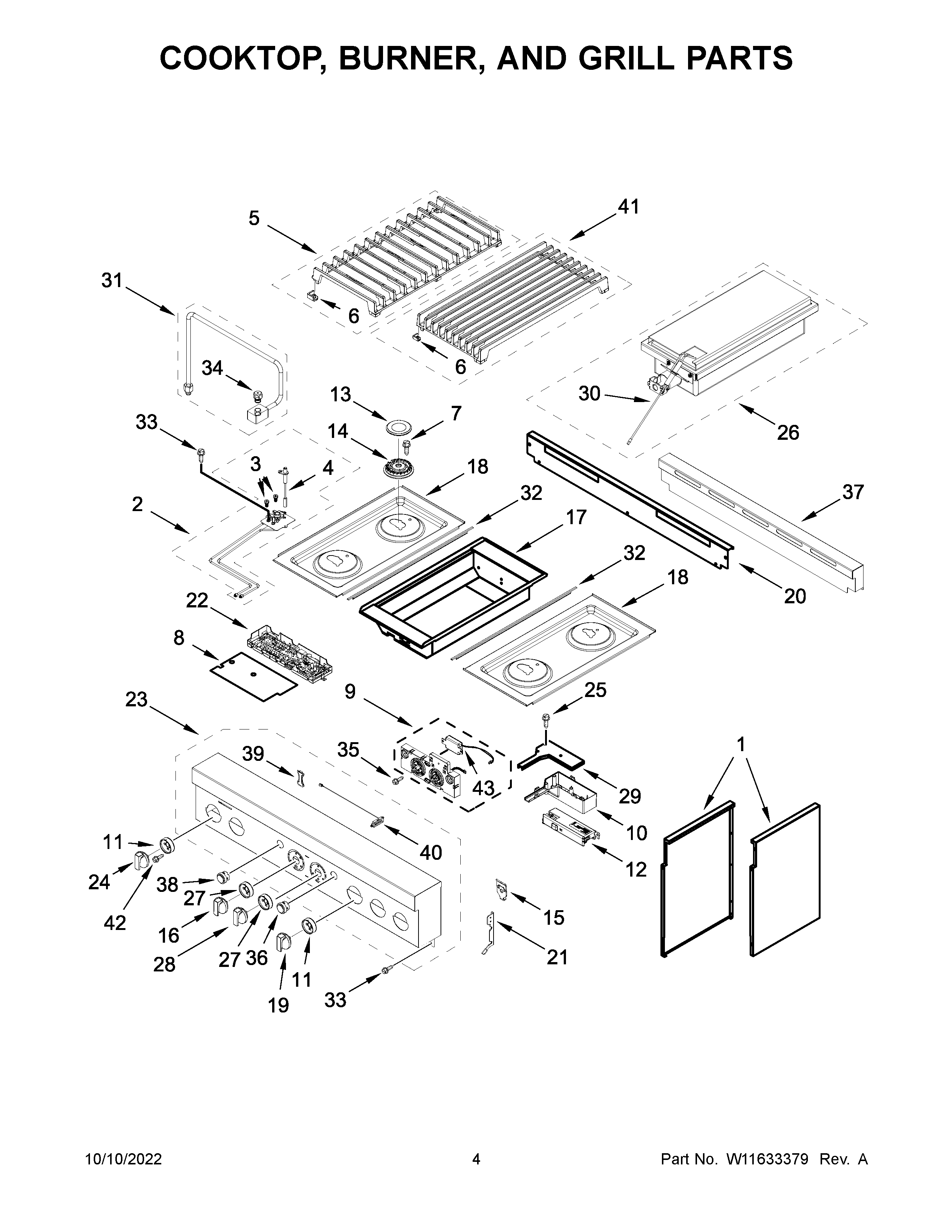

JGRP636HM05 03 – COOKTOP, BURNER, AND GRILL PARTS

JGRP636HM05 03 – COOKTOP, BURNER, AND GRILL PARTS

Written by

in

JGRP636HM05 03 – COOKTOP, BURNER, AND GRILL PARTS

Products

Position	Product
1	W11333179 Whirlpool Side Assembly
1A	W11333303 Whirlpool Side Complete Assembly
2B	W11333307 Whirlpool Orifice Holder
2C	W11333309 Whirlpool Orifice Holder
2A	W11333306 Whirlpool Orifice Holder Assembly
2	W11333305 Whirlpool Holder Orifice
3C	W11661909 Whirlpool Range Orifice Spud
3B	W10892440 Whirlpool Spud Orifice
3D	W10892429 Whirlpool Orifice Spud
3A	W10892418 Whirlpool Range Orifice Spud
3	W11643164 Whirlpool Orifice Spud
4	W11573760 Whirlpool Surface Igniter
4A	W11238756 Whirlpool Surface Igniter
5A	W11516462 Whirlpool Burner Grate
5	W11516449 Whirlpool Grate Burner
6	W11550692 Whirlpool Bumper
7	SCREW
8	W11320149 Whirlpool Insulator
9	W11492283-includeCORE Whirlpool W11492283 Refrigerator Electronic Control Board + Core
10	COVER, WIFI OUTER
11	W11317889 Whirlpool Knob Bezel
12	W11234290 Whirlpool Electronic Control Board
13	W11328971 Whirlpool Burner Cap
14A	W11319673 Whirlpool Burner Head
14	W11319683 Whirlpool Burner Head
15	W11318207 Whirlpool Clip Assembly
16	W11397970 Whirlpool Knob Assembly
17	ASSEMBLY, GRILL BOX
18A	PANEL, COOKTOP (BLACK (RIGHT))
18	W11316700 Whirlpool Cooktop
19	W11328010 Whirlpool Range Knob
20	W10323250 Whirlpool Top Trim
21	W10130760 Whirlpool Bracket Mounting
21A	W10130759 Whirlpool Mounting Bracket
22	W11620692 Whirlpool Electronic Control Board + Core
23	W11444047 Whirlpool Control Panel
24	W11317537 Whirlpool Knob
25	W11169708 Whirlpool Screw
26	W11328568 Whirlpool Burner Grille
27	W11317892 Whirlpool Bezel Knob
28	W11317539 Whirlpool Knob
29	WPL W11205794
30	WPL W11174598
31	WPL W11419280
32	W10291193 Whirlpool Trim Top
33	SCREW
34	WPL W11419282
35	WP3400814 Whirlpool Screw
36	W11319196 Whirlpool Push Button
37	W11476245 Whirlpool Trim Top
38	W11318857 Whirlpool Push Button
39	WPL W10896369
40	W11318855 Whirlpool Antenna
41	W11328377 Whirlpool Grate Grille
42	W11509770 Whirlpool Screw
43	W11123146 Whirlpool Speaker
