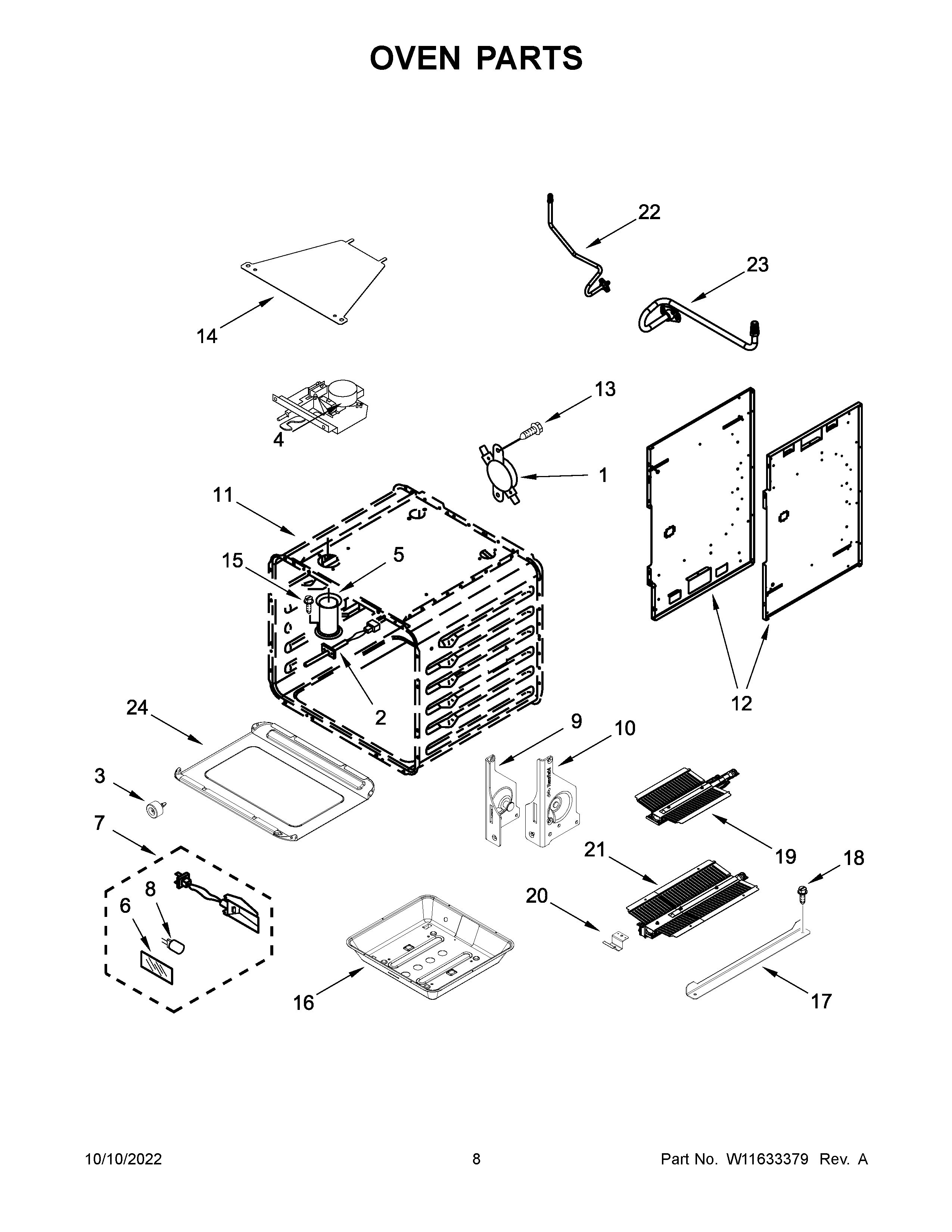

JGRP636HM05 05 – OVEN PARTS

Products

Position	Product
NI	INSULATION, BOTTOM
NI	W11688743 Whirlpool Insulation
NI	WP3400968 Whirlpool Nut
NI	CABINET (NOT A SERVICEABLE PART)
NI	INSULATION, BACK
1	WP4450249 Whirlpool Thermostat
2	W10859573 Whirlpool Range Oven Temperature Sensor
3	WPW10351278 Whirlpool Bumper
4	W11029221 Whirlpool Door Latch
5	TUBE, VENT
6	W10169756 Whirlpool Light Lens
7	W11233684 Whirlpool Oven Light Assembly
8	BULB-LIGHT
9	RECEIVER, HINGE (LEFT)
10	RECEIVER, HINGE (RIGHT)
12A	CHASSIS, SIDE (RIGHT)
12	W11320145 Whirlpool Cabinet Panel
13	SCREW
14	W10160858 Whirlpool Lid Cover
15	SCREW
16	WPW10145744 Whirlpool Support
17	W10317437 Whirlpool Support Assembly
18	SCREW
19	W11643161 Whirlpool Oven Burner
20	W10308040 Whirlpool Pan Bracket
21	W11661180 Whirlpool Burner Broiler
22	W11355244 Whirlpool Gas Tubing
23	W11355919 Whirlpool Range Gas Tubing
24	W11661576 Whirlpool Oven Bottom Pan
