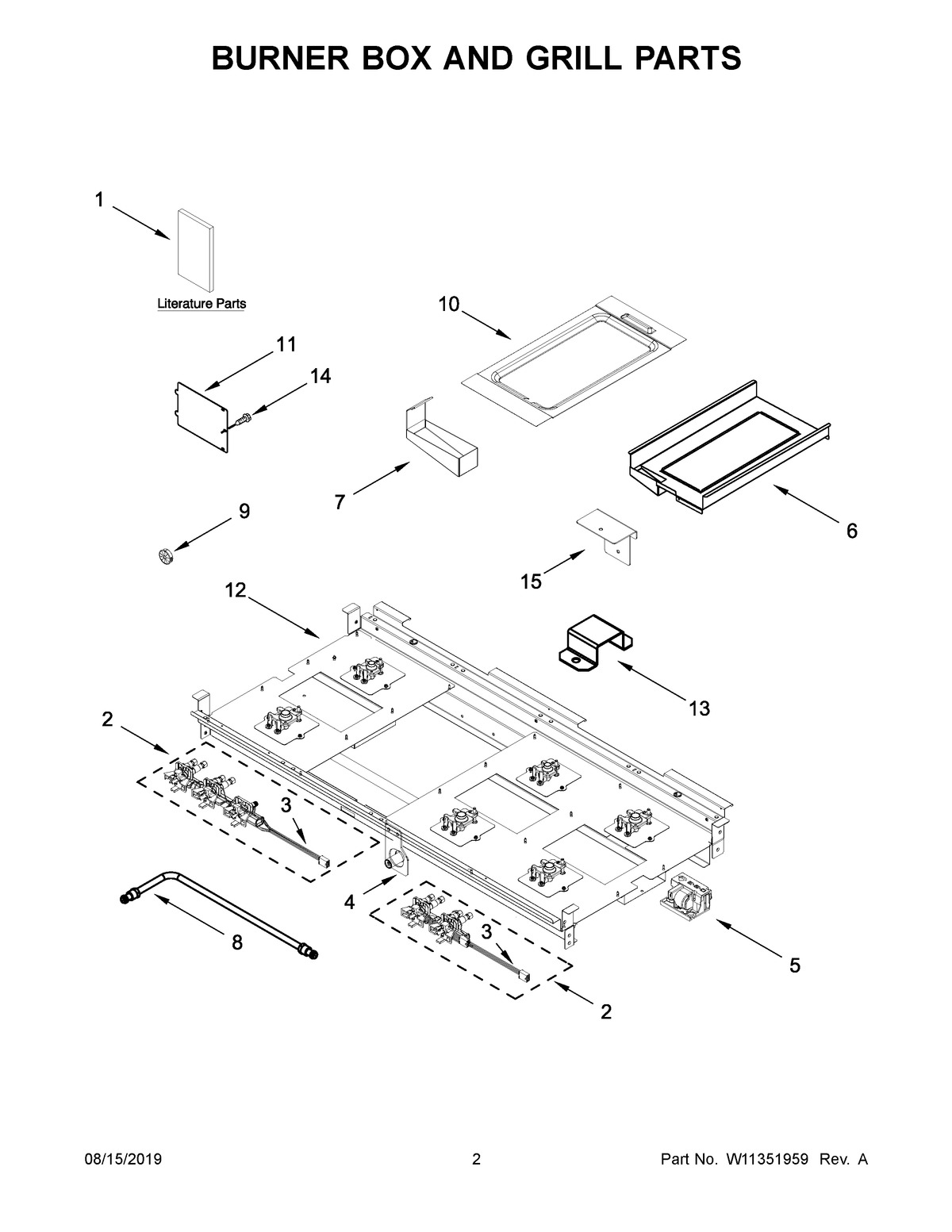

JGRP648HL00 02 – BURNER BOX AND GRILL PARTS

Products

Position	Product
NI	SCREW, ANTI-TIP KIT
NI	KIT, LP CONVERSION
NI	MAY W11200330
NI	MAY W11311895
NI	HARNESS, DOOR LOCK
NI	HARNESS, WIFI
NI	MAY W11311196
NI	MAY W11311197
NI	HARNESS, COMMUNICATION
NI	CORD, POWER
NI	LINER (NOT A SERVICEABLE PART)
NI	BRACKET, ANTI-TIP
NI	MAY 4450800
1E	MAY W11202275
1C	GUIDE, INTERNET CONNECTIVITY
1B	MAY W11177312
1	MAY W11177275
1D	MAY W11202375
1A	MAY W11177278
2	MAY W10893054
2B	ASSEMBLY, VALVE MANIFOLD (LEFT FRONT AND LEFT REAR)
2A	ASSEMBLY, VALVE MANIFOLD (RIGHT FRONT AND RIGHT REAR)
3	SWITCH, HARNESS (GRILL, RIGHT FRONT, RIGHT REAR)
3A	SWITCH, HARNESS (RIGHT FRONT AND RIGHT REAR)
4	BRACKET, MANIFOLD
5	MODULE, SPARK
6	MAY W11120957
7	MAY W11174414
8B	MAY W10892802
8	MAY W10892803
8A	MAY W10892801
9	MAY W10189097
10	MAY W11120965
11	MAY W10115843
13	MAY W11174418
14	MAY 7101P426- 60
15	MAY W11285353
