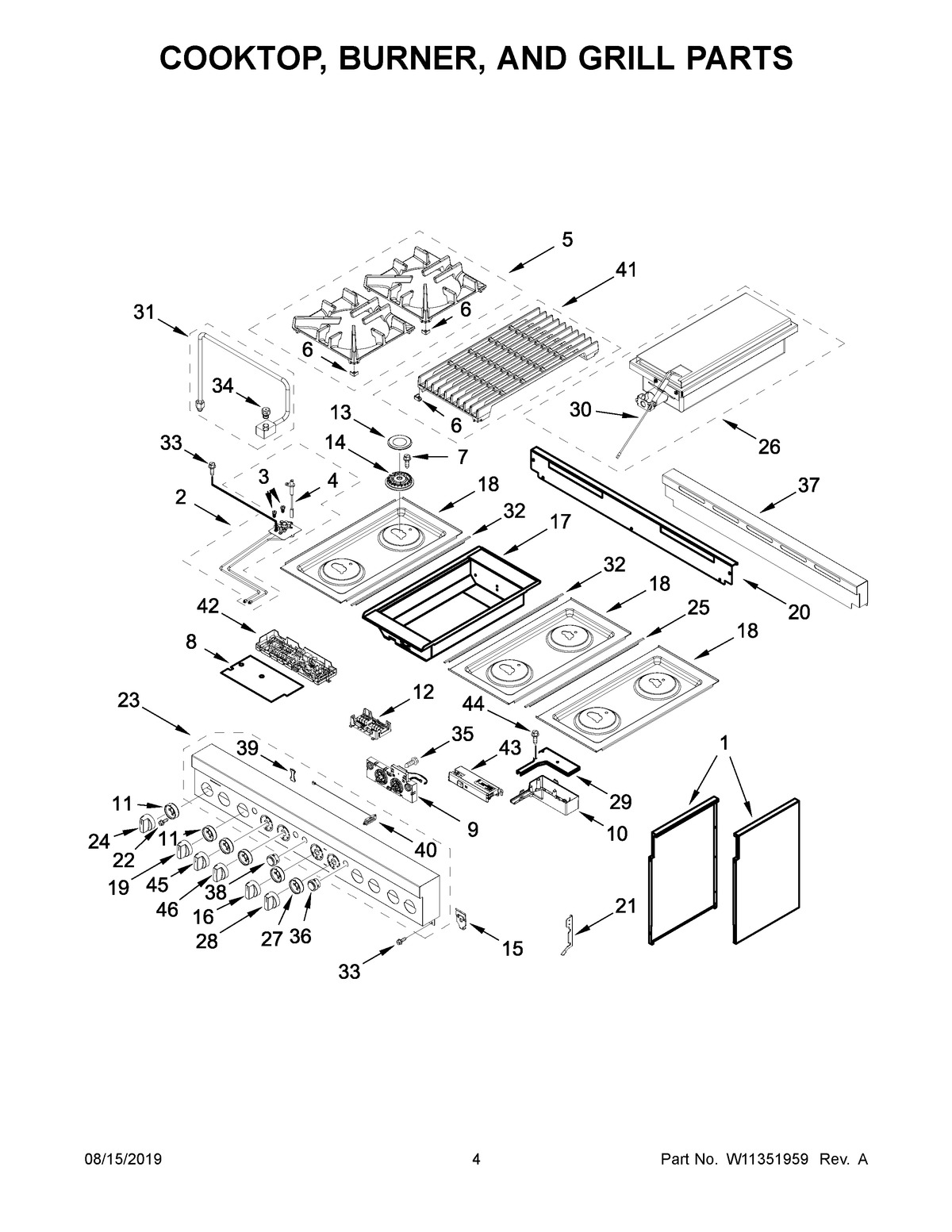

JGRP648HL00 03 – COOKTOP, BURNER, AND GRILL PARTS

Products

PositionProduct
1APANEL, CABINET SIDE (RIGHT)
1PANEL, CABINET SIDE (LEFT)
2DMAY W10892726
2CMAY W10892724
2BMAY W10892471
2ASSEMBLY, ORIFICE HOLDER (LEFT FRONT)
2AASSEMBLY, ORIFICE HOLDER (LEFT REAR)
2EMAY W10892474
3DORIFICE, SIMMER (2.0K) (RIGHT REAR)
3BORIFICE, MAIN (7.2K) (RIGHT REAR)
3ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3AORIFICE, MAIN (15.4K) (LEFT REAR AND RIGHT FRONT)
3CORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4AIGNITER (RIGHT REAR)
4IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
5ASSEMBLY, GRATE (BLACK (SET OF 2))
6BUMPER, GRATE
7MAY W11323260
8BARRIER, APPLIANCE MANAGER
9MAY W11219188
10COVER, WIFI OUTER
11BEZEL, COOKTOP
12MAY W10871065
13CAP, BURNER (BLACK (SET OF 6))
14SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
14ASPREADER, FLAME (LOW) (RIGHT REAR)
15SPRING CLIP, RANGE
16MAY W11092267
17MAY W11174429
18APANEL, COOKTOP (BLACK (RIGHT CENTER))
18BMAY W10804373
18PANEL, COOKTOP (BLACK (LEFT))
19MAY W10894925
20MAY W10323252
21ABRACKET,CONSOLE (RIGHT)
21BRACKET,CONSOLE (LEFT)
22MAY W10919387
23MAY W11253771
24KNOB, BURNER (STAINLESS)
25TRIM, T-STRIP
26MAY W11120976
27BEZEL, OVEN (FOR 2 OVEN KNOBS) (STAINLESS)
28KNOB, OVEN TEMPERATURE (STAINLESS)
29COVER, WIFI INNER
30MAY W11174598
31MAY W11197929
32L-STRIP
33MAY 7101P426- 60
34MAY W10892423
35SCREW
36BUTTON ASSEMBLY, OVEN START
37MAY W11183087
38BUTTON ASSEMBLY, OVEN LIGHT
39ASSEMBLY, LIGHT PIPE
40ANTENNA, WIFI
41MAY W11179894
42MAY W11100278
43ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
44SCREW
45MAY W11263512
46MAY W11263513
